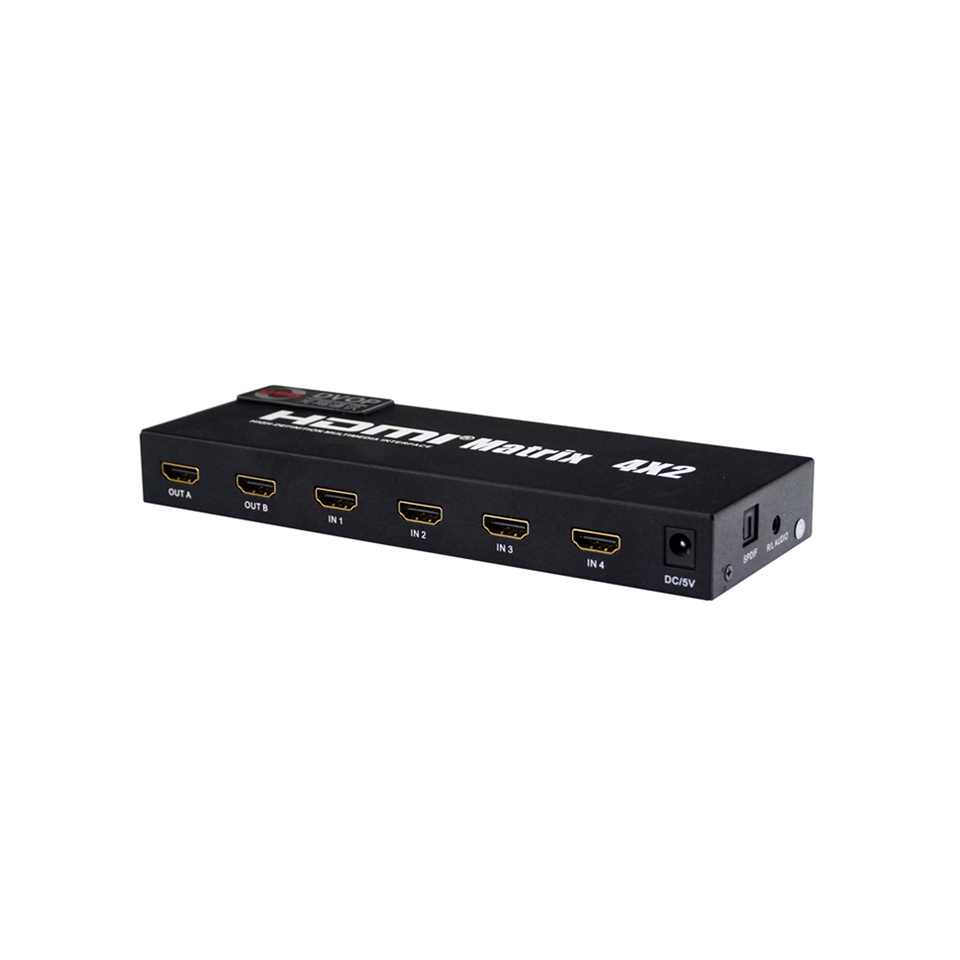

- 4X2 HDMI matrix
This 4X2 HDMI matrix can connect four HD signal sources with two HD signal terminals at the same time, and can support fiber or stereo headphone output. It can easily switch or distribute four HD signals freely between two HD signal compatible monitors or projectors, and any output port can achieve independent audio output through optical fiber or stereo headphones.
The company manufactures equipment that provides solutions for applications such as noise, transmission distance and safety restrictions, data center control, information distribution, conference room presentations, teaching environments and corporate training sites.
● Support HDMI 1.4A version
● 3D video format is supported
● Support the highest resolution up to l 1080p/60Hz
● The TMDS clock is 225Mhz when the maximum speed is 2.25G
● Support the use of standard AWG26 cable, input transmission distance of up to 15 meters, output transmission distance of up to 25 meters
● Four HDMI signal inputs are switched or allocated to two HDMI signal terminals
● Support 5.1 channels
● Support 3.5 mm audio interface output and fiber output
● 5V/2A power adapter
|
HDMI version |
HDMI 1.4a |
|
HDMI resolution |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
Video formats supported |
8/10/12 bit colors |
|
Audio formats supported |
DTS-HD/Doldy-trueHD/DTS/Doldy-AC3/DSD |
|
Maximum broadband transmission |
225MHz |
|
Maximum transfer rate |
2.25 Gbps |
|
Input cable length |
≤15 m AWG26 HDMI standard cable |
|
Output cable length |
≤ 25m AWG26 HDMI standard cable |
|
HDMI input port |
4 |
|
HDMII output ports |
2 |
|
Maximum working current |
550mA |
|
Power adapter Specifications |
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A |
|
Operating temperature range |
(-15 to +55℃) |
|
Operating humidity range |
5 to 90%RH (non-condensing) |
|
Size |
200x70x25 (mm) |
|
Weight |
320g |
