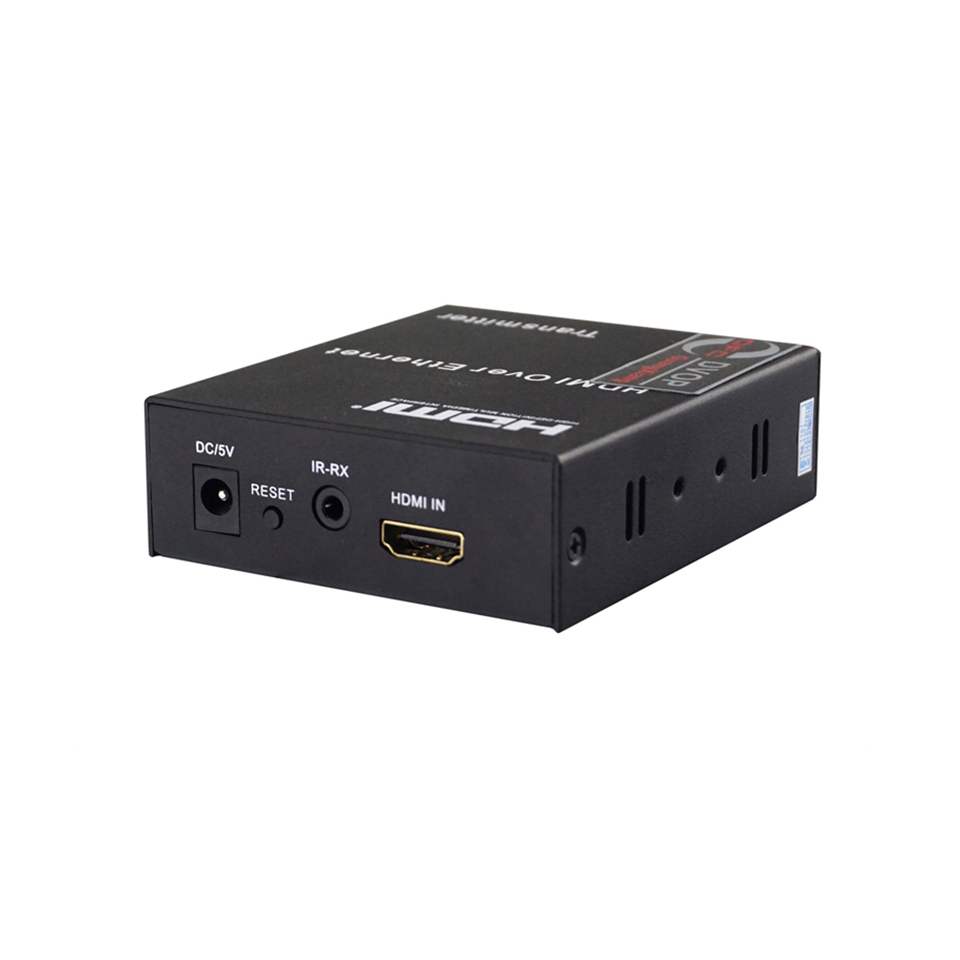

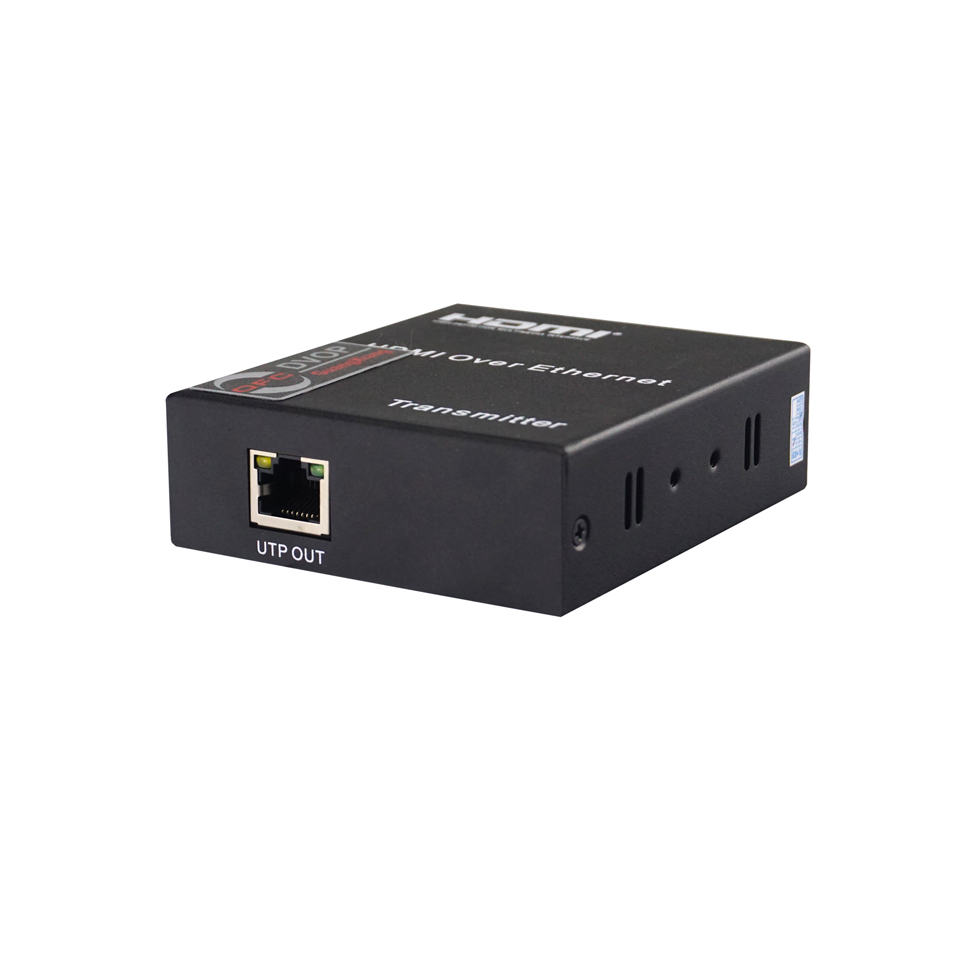

- DVOP-HP-VHF1-E1 HDMI to network extender
Single network extender through a CAT5e or CAT6 wire (recommended) instead of HDMI cable, and can extend the HDMI signal transmission 100-150 meters, reducing the cost, the purpose of the extender is to achieve long-distance signal transmission with low cost wire.
The company manufactures equipment that provides solutions for applications such as locations with limited noise, transmission distance and security, data center control, information distribution, conference room presentations as well as teaching environments and corporate training sites.
● Support HDMI 1.4A version
● 3D video format is supported
● Support up to 1080P/60Hz resolution
● Support the maximum speed of 1.65Gbps. TMDS clock maximum bandwidth of 165Mhz
● Support 8/10/12 bit dark colors
● Support standard AWG26 cable, input transmission distance up to 15 meters, output transmission distance up to 20 meters
● Signal transmission: use a cat5 or cat6 cable (recommended) instead of the HDMI cable, the cable between the receiver and the transmitter can be up to 60 meters
● Requires a 5V/1A power adapter
|
CAT5e or CAT6 cable between receiver and transmitter |
100-150 m |
|
HDMI input |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
Audio format input is supported |
DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
|
HDMI Output |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
Audio format output is supported |
DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
|
Maximum transfer bandwidth |
165MHz |
|
Maximum transfer rate |
1.65 Gbps |
|
Input video signal |
0.5~1.5Volts p-p |
|
Output DDC signal |
5Volts p-p (TTL) |
|
Input HDMI cable length |
≤15m AWG26 Standard HDMI specification cable |
|
Output HDMI cable length |
≤20m AWG26 standard HDMI cable |
|
Max. operating current TX |
510mA |
|
Maximum operating current RX |
100mA |
|
Power adapter Specifications |
Ac input (50HZ, 60HZ) 100V-240V; Dc output 5V/1A |
|
Operating temperature range |
(-15 to +55℃) |
|
Operating humidity range |
5 to 90%RH (non-condensing) |
|
Dimensions (L x W x H) |
81x43x22 (mm) |
|
TX weight |
100g |
|
RX weight |
120g |
