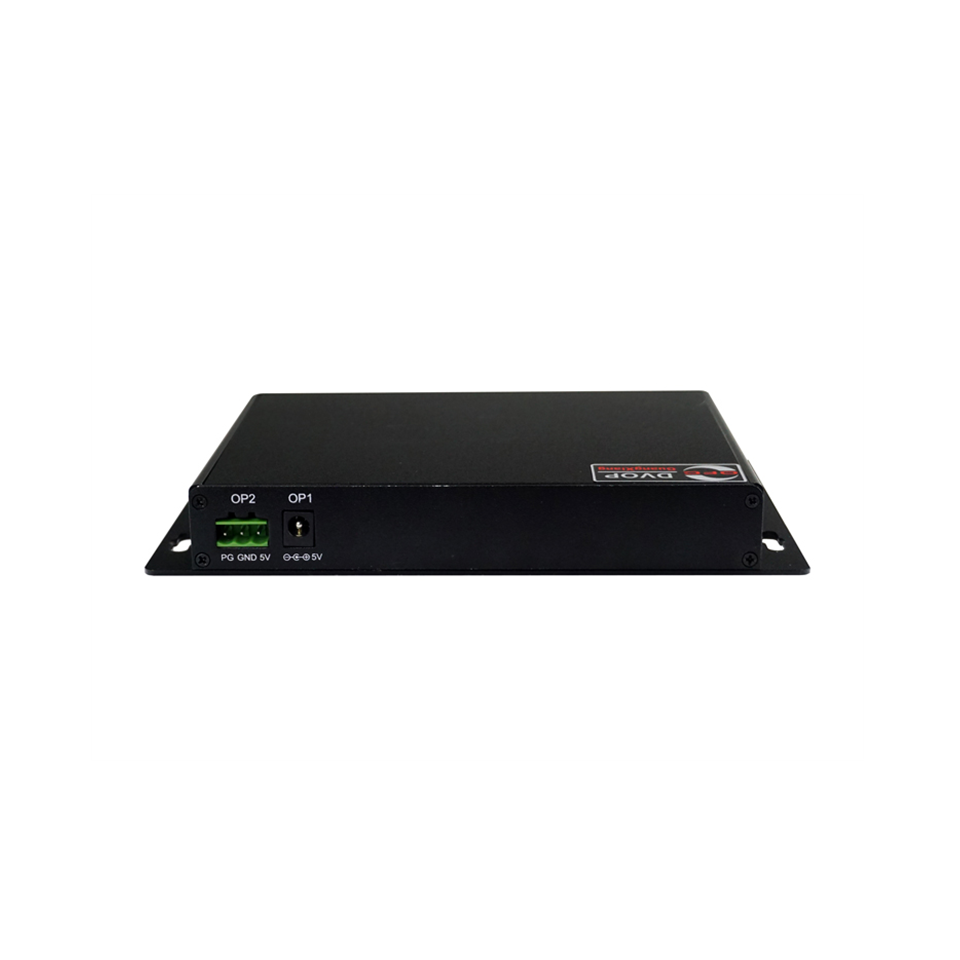

- DVOP-IN-H-EG2 Gigabit 2-channel physical isolation network optical terminal
DVOP-IN-H-EG2 series is a network fully isolated optical terminal with complete core intellectual property rights of Guangxiang. It uses dedicated ASIC and adopts fully isolated channel isolation technology to achieve complete isolation between different multi-network signals. Channel isolation technology adopts TDM (Time division multiplexing) technology for different types of network information. Different kinds of network signals are transmitted by different time-slot channels, and each network signal has a unique and independent TD time-slot for transmission. This method is used to achieve isolation on the hardware channel, and this isolation method makes it impossible to invade another network from one network, so as to realize the bottom isolation between different network signals. At the same time, in the way of implementation, this fully isolated design adopts the way of large-scale logic FPGA devices, and there is no software in the device, and it also fundamentally eliminates brute force cracking, or dismantling cracking and other means, which has strong security. Products support centralized management rack card application, support centralized network management function, seamless access to our security monitoring centralized management platform e-MS, support optical path alarm, support network alarm, with front-end power off alarm function, support remote machine and local machine integrated transmission system management function. The open interface design allows integration into higher level network management systems.
● Up to 2 physical fully isolated 10/100/1000M Ethernet channels
● Physical isolation design, to achieve the bottom isolation between different network signals, to ensure the security of network information
● Each network has a unique bandwidth of 100 megabits, and each network line speed can reach 1000M
● Unique 1+1 dual backup power supply mode, supporting 1 self-power supply and 1 centralized feeding mode, especially suitable for monitoring environment that can not be powered off
● With 5.08mm special high current protection ground terminal
● Support the local alarm function of RPLA remote device power failure, which greatly facilitates the equipment commissioning and on-site maintenance
● Support GIS-based e-MS centralized intelligent network management system to facilitate the monitoring and management of large networks
● Network management supports open network management interface, allowing integration into a higher level network management system
● Using in-band network management, simple and effective, low cost network management implementation, effectively reduce the economic burden of users.
● Support cross-gateway communication, network management host can manage multiple branch equipment, can form a telecommunications standard three or more levels of network management system
● In the case of dual power supply, support up to 21 equipment/frame high density, greatly alleviating the equipment room crowded state
● Full range of interface lightning/surge /ESD bridge three-level protection design, with differential mode/common mode protection function
● The industry's highest level of lightning, surge, ESD protection design to ensure long-term reliable operation of equipment in harsh electromagnetic environment
● Full digital optical fiber transmission platform, multi-service flexible configuration of the same platform, can form a complex communication network, saving investment resources
● Advanced automatic diagnosis, automatic repair, loyal protection and other Ethernet interface protection functions
● Unique power anti-reverse connection, power anti-error function, fault elimination automatically resume operation
● Support the local display function of RSLD remote device status, which greatly facilitates the equipment opening and on-site maintenance
● The network management supports the "one-key opening" function, tap one key, you can complete the establishment of the whole network monitoring network
● Network management supports a full range of intelligent automatic search function, the system can automatically search the network management agent, rack, equipment and other facilities
● Network management supports intelligent equipment generation, and the system can automatically produce detailed equipment information for newly searched facilities
● The network management supports the automatic identification function of equipment transactions, and the system automatically identifies the changes of equipment in the network
● Support for ultra-long packet transmission up to 1552 bytes
● Support QoS to ensure VOIP packet transmission ● Support STP spanning trees to form redundant networks
● Support medium conversion, storage and forwarding mode
● Support protocol standards: The IEEE802.3 10 base-t Ethernet, IEEE802.3 u, 100 base - TX/FX Fast Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree
● Industrial design and device, full surface mounting technology, long-term stable and reliable operation
① Optical port specifications
Wavelength: 850/1310nm(multimode); 1260~
1360,1470 ~ 1610 (single mode)
Fiber output power: 0 dBm to -3 dBm/-5 dBm
to -10 dBm
Number of fiber cores: 1 /2 (optional)
Receiving sensitivity: ≤-26dBm
Transmission distance: multi-mode 0-5km,
single-mode: 0-25km, 0-60km, 0-100km
Maximum optical power reserved:
15dbm/20dbm/25dbm/30dbm
② Ethernet interface specifications
Physical interface: Shield more than 5
RJ-45 seats
10M Ethernet interface: full or half
duplex, compatible with IEEE 802.310Base-T
10/100M Adaptive Ethernet interface: full
or half duplex, MDX, supports IEEE 802.310/100Base-T Ethernet standard
10/100/1000M Adaptive Ethernet interface:
full or half duplex, MDX, supports IEEE 802.310/100/1000Base-T Ethernet
standard
Support full duplex flow control or half
duplex back pressure flow control, with automatic negotiation function
③ Appearance size, power supply mode and
power dissipation
a) Freestanding:
Dimensions: 196mm(L) X155mm(W) X30mm(H);
Power supply: External power adapter,
supporting voltage 220V/110V, -48V, +24V, +12V
b) 19-inch standard chassis type
Dimensions: Width 19 inches, height 1U
Power supply: AC/DC 220V/110V, -48V, +24V,
+12V Optional
Maximum power consumption: 30W
c) Card rack application
Dimensions: Width 19 inches, height 4.5U
standard
Number of rack cards: 21
Power supply: AC/DC 220V/110V, -48V, +24V,
+12V Optional
Maximum power consumption: 200W
④ Working environment (outdoor or indoor)
Operating temperature :-40℃ ~ +80℃
Humidity: 0 ~ 95% no condensation
Protection grade: General industry standard or special designation
