- DVOP-IN-H-EM2 100 Mbit/s 2-channel physical isolation network optical transceiver
DVOP-IN-H-EM2 is a network fully isolated transceiver with complete core intellectual property rights. Using dedicated ASIC, it adopts fully isolated channel isolation technology to achieve complete isolation between network signals. Channel isolation technology adopts TDM (Time division multiplexing) technology for different types of network information. Different kinds of network signals are transmitted by different time-slot channels, and each network signal has a unique and independent TD time-slot for transmission. This method is used to achieve isolation on the hardware channel, and this isolation method makes it impossible to invade another network from one network, so as to realize the bottom isolation between different network signals. At the same time, in the way of implementation, this fully isolated design adopts the way of large-scale logic FPGA devices, and there is no software in the device, and it also fundamentally eliminates brute force cracking, or dismantling cracking and other means, which has strong security. Products support centralized management rack card application, support centralized network management function, seamless access to our security monitoring centralized management platform e-MS, support optical path alarm, support network alarm, with front-end power off alarm function, support remote machine and local machine integrated transmission system management function. The open interface design allows integration into higher level network management systems.
● Physical isolation design, to achieve the
bottom isolation between different network signals, to ensure the security of
network information.
● Each network has 100 megabytes of
bandwidth, and each network line speed can reach 100M.
● Unique 1+1 dual backup power supply mode,
supporting 1 self-power supply and 1 centralized feeding mode, especially
suitable for monitoring environment that can not be powered off
● With 5.08mm special high current
protection ground terminal.
● Support the local alarm function of RPLA
remote device power failure, which greatly facilitates the equipment
commissioning and on-site maintenance.
● Support GIS-based e-MS centralized
intelligent network management system to facilitate the monitoring and
management of large networks
● Network management supports open network
management interface, allowing integration into a higher level network
management system.
● Using in-band network management, simple
and effective, low cost network management implementation, effectively reduce
the economic burden of users.
● Support cross-gateway communication,
network management host can manage multiple branch equipment, can form a
telecommunications standard three or more levels of network management system
● In the case of dual power supply, support
up to 21 equipment/frame high density, greatly alleviating the equipment room
crowded state.
● Full range of interface lightning/surge
/ESD bridge three-level protection design, with differential mode/common mode
protection function.
● The industry's highest level of
lightning, surge, ESD protection design to ensure long-term reliable operation
of equipment in harsh electromagnetic environment.
● Full digital optical fiber transmission
platform, multi-service flexible configuration of the same platform, can form a
complex communication network, saving investment resources.
● Advanced automatic diagnosis, automatic
repair, loyal protection and other Ethernet interface protection functions
● Unique power anti-reverse connection,
power anti-error function, fault elimination automatically resume operation.
● Support the local display function of
RSLD remote device status, which greatly facilitates the equipment opening and
on-site maintenance.
● The network management supports the
"one-key opening" function, tap one key, you can complete the
establishment of the whole network monitoring network.
● Network management supports a full range
of intelligent automatic search function, the system can automatically search
the network management agent, rack, equipment and other facilities.
● Network management supports intelligent
equipment generation, and the system can automatically produce detailed
equipment information for newly searched facilities.
● The network management supports the
automatic identification function of equipment transactions, and the system
automatically identifies the changes of equipment in the network.
● Support for ultra-long packet
transmission up to 1552 bytes
● Support QoS to ensure VOIP packet
transmission
● Support STP spanning trees to form
redundant networks
● Support medium conversion, storage and
forwarding mode
● Support protocol standards: The IEEE802.3
10 base-t Ethernet, IEEE802.3 u, 100 base - TX/FX Fast Ethernet, IEEE802.3x
Flow control,IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree
● Industrial design and device, full
surface mounting technology, long-term stable and reliable operation
① Optical port specifications
Wavelength: 850/1310nm(multimode); 1260~
1360,1470 ~ 1610 (single mode)
Fiber output power: 0 dBm to -3 dBm/-5 dBm
to -10 dBm
Number of fiber cores: 1 /2 (optional)
Receiving sensitivity: ≤-26dBm
Transmission distance: multi-mode 0-5km,
single-mode: 0-25km, 0-60km, 0-100km
Maximum optical power reserved:
15dbm/20dbm/25dbm/30dbm
② Ethernet interface specifications
Physical interface: Shield more than 5
RJ-45 seats
10M Ethernet interface: full or half
duplex, compatible with IEEE 802.310Base-T
10/100M Adaptive Ethernet interface: full
or half duplex, MDX, supports IEEE 802.310/100Base-T Ethernet standard
Support full duplex flow control or half
duplex back pressure flow control, with automatic negotiation function
③ Appearance size, power supply mode and
power dissipation

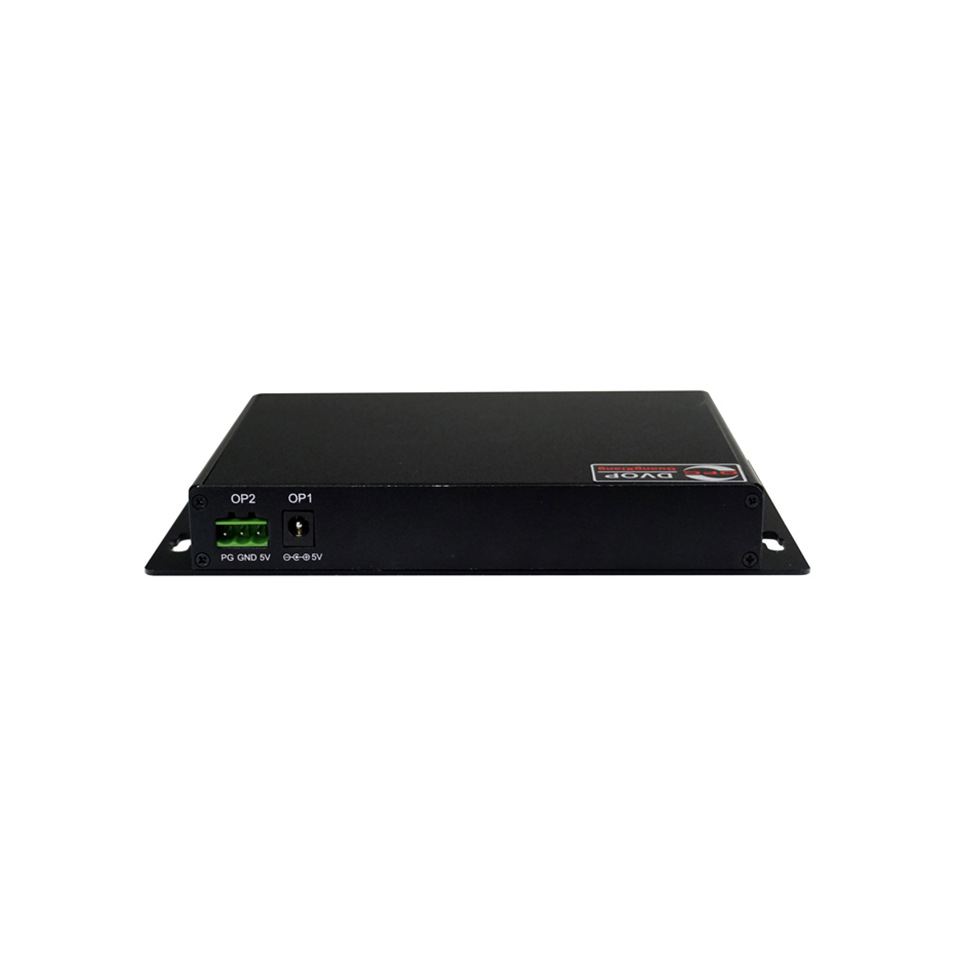

a) Freestanding:
Dimensions: 196mm(L) X155mm(W) X30mm(H);
Power supply: External power adapter,
supporting voltage 220V/110V, -48V, +24V, +12V
b) 19-inch standard chassis type
Dimensions: Width 19 inches, height 1U
Power supply: AC/DC 220V/110V, -48V, +24V,
+12V Optional
Maximum power consumption: 30W
c) Card rack application
Dimensions: Width 19 inches, height 4.5U
standard
Number of rack cards: 21
Power supply: AC/DC 220V/110V, -48V, +24V,
+12V Optional
Maximum power consumption: 200W
④ Working environment (outdoor or indoor)
Operating temperature :-40℃ ~ +80℃
Humidity: 0 ~ 95% no condensation
Protection grade: General industry standard
or special designation
