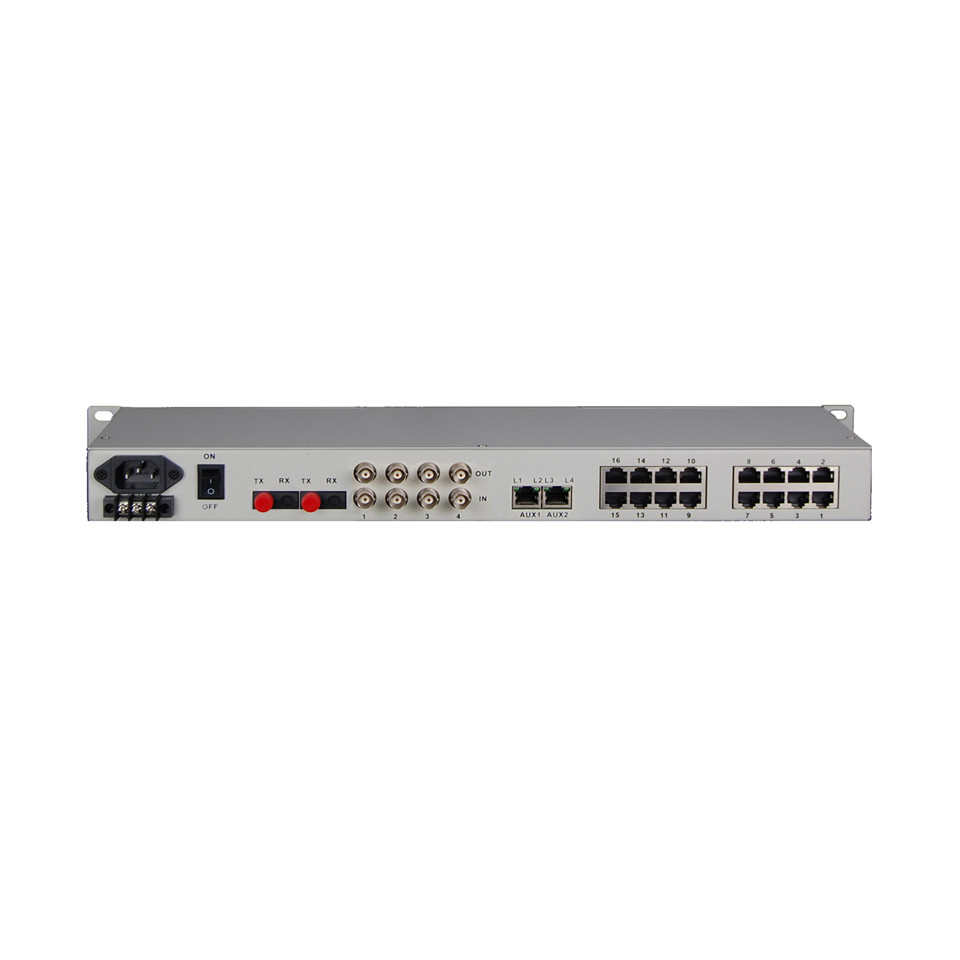

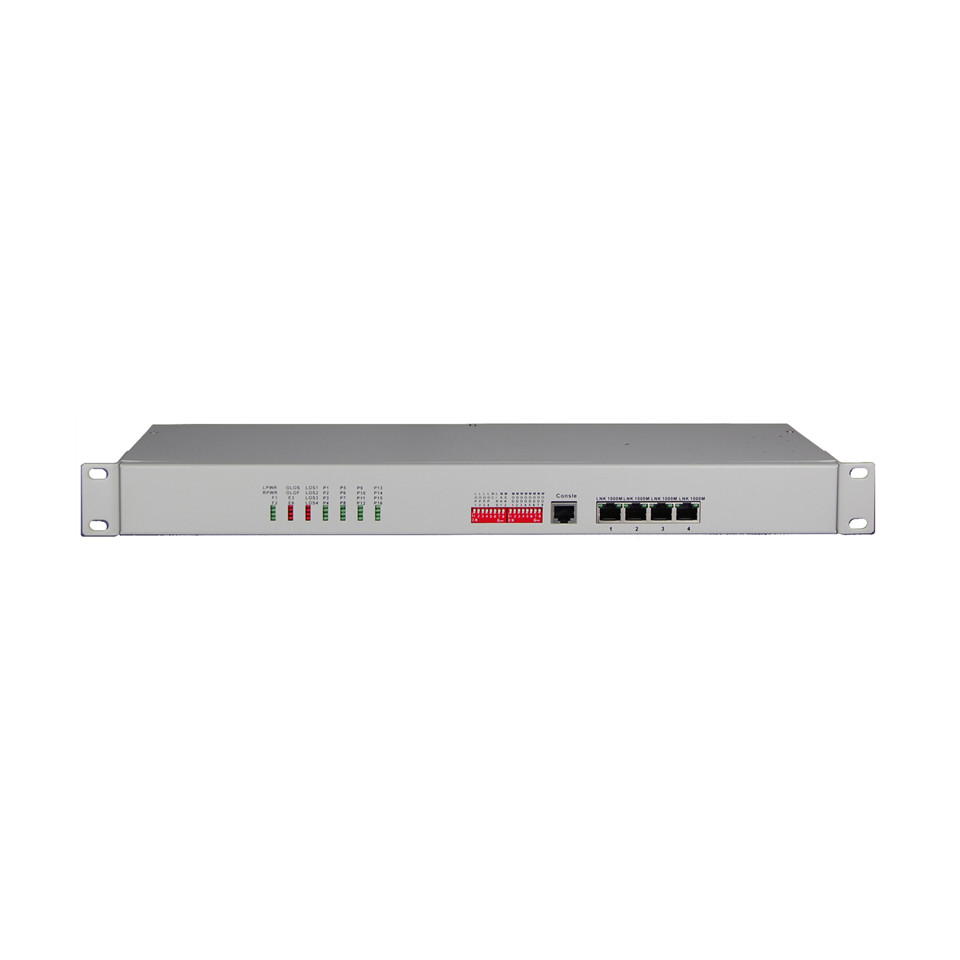

- DVOP-HM-E104-EG4-T16-DB4 Multiservice telephone optical terminal
This series of products is a point-to-point optical transmission device developed on the basis of the special VLSI developed by the company. This product provides 16 telephone interfaces; Four E1 ports; Four Gigabit Ethernet interfaces; Two expansion ports (can expand 1 to 4 asynchronous data, such as RS232/ RS485/RS422/Manchester code, etc.); 1 Console and 2 optical ports (1+1 optical backup); The internal circuit part of the equipment adopts all-digital circuit, the whole machine works reliably, stability, low power consumption, high integration, small size, easy to install and maintain.
● Integrated circuits based on independent intellectual property rights
● The whole machine is single-board design
● E1 interface complies with G.703 recommendation, using full digital clock recovery and smooth phase-lock technology
● Two extension interfaces (AUX1/2), can extend 1 ~ 4 asynchronous data, such as RS232/ RS485/RS422/Manchester code; Or 1 to 8 switches, 1 to 4 E1 channels (therefore, the device can have up to 8 E1 channels), 1 to 4 voice channels, or two/four wire audio
● Ethernet interface 10/100/1000M, full/half duplex fully adaptive
● Each Ethernet port supports Auto-MDIX(cross/straight line adaptive)
● 16 channels voice access, support caller ID function and reverse polarity billing function
● One Console port, supporting Hyperterminal control devices
● Support each site mutual number allocation function
● Voice ports support FXO ports and FXS ports. FXO ports are connected to program-controlled switches, and FXS ports are connected to users' telephone sets
● Can monitor local temperature and local voltage (network management platform)
● Optical port no relay transmission distance up to 2 ~ 120 km
● Multiple power supply options: AC220V, DC-48V/DC24V, etc
● DC-48V/DC24V power supply with polarity automatic detection function, no need to distinguish between positive and negative terminals during installation
● Optical fiber part
Multimode fiber:
50/125um or 62.5/125um,
Transmission distance: 2Km multi-mode fiber, attenuation (3dbm/km)
Wavelength: 850nm
Transmit power: -12dBm (Min) ~ -9dBm (Max)
Receiving sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode fiber:
8/125um or 9/125um,
Transmission distance: 20Km single-mode fiber, attenuation (0.35dbm/km) (actual need for greater distance need to be customized)
Wavelength: 1310nm (1550nm wavelength is selected for ultra-long distance transmission)
Transmission power: -9dBm (Min) ~ -5dBm (Max)
Receiving sensitivity: -27dBm (Min)
Link budget: 18dBm
● E1 port
Device interface: The device interface complies with G.703
Speed: 2048Kb/s±50ppm
Code type: HDB3
Resistance: unbalanced type 75/ balanced type 120
Non-balanced coaxial interface adapter for 75-2/3 coaxial cable
Jitter feature: The jitter feature meets recommendations G.742 and G.823
Input port allowable attenuation: 0 ~ 6dBm
● Data interface
Data interface: RS-485/RS-232/RS-422/Manchester/TTL
Data format: NRZ, Manchester, Bi-phase
Speed: 110bps-115.200Kbps
Physical port: RJ45
● FXS user phone ports and business phone ports
Ringing voltage: 75V
Ringing frequency: 25Hz
Two-wire input impedance: 600Ω(off-hook)
Return loss: 20dB
● FXO trunk port
Ringing detection voltage: 35V
Ringing detection frequency: 17Hz to 60Hz
Two-wire input impedance: 600Ω(off-hook)
Return loss: 20 dB
● 10/100M Ethernet interface
Agreement: Compliant with IEEE 802.3, IEEE 802.1Q(VLAN)
Speed rate: 10/100M adaptive, full/half duplex fully adaptive
MAC address table: 4096 MAC addresses can be learned
Physical interface: RJ45 seat, support Auto-MDIX (cross/through line adaptive)
● Electrical and mechanical characteristics
System power supply: AC180V ~ 260V; Dc-48v; DC +24V
Power consumption: ≤5W
Appearance structure: (length × width × height) 485*138*45mm rack type
● Environmental Indicators
Operating temperature: -10℃ - +60℃
Storage temperature: -40℃ - +85℃
Working humidity: 0% - 95% (no condensation)
MTBF: > 100,000 hours
