- DVOP-AD 1-16 audio/data/switching/network/telephone integrated service optical terminal
DVOP-AD series is a comprehensive optical transmission product of industrial-grade data/audio/alarm/telephone/network with complete core intellectual property rights. In a single fiber to achieve up to 16 balanced/unbalanced one-way/two-way audio, 16 one-way/two-way data, 16 telephone, 16 one-way/two-way alarm volume, 4 Ethernet signals real-time, synchronous, distortion-free, high-quality transmission, and can expand the single fiber transmission of various signals for more purposes. DVOP-AD series adopts full modular structure, which greatly improves the flexibility of equipment configuration, and has high flexibility and high scalability requirements that can adapt to any combination of any number of audio, data, Ethernet, switching quantity, telephone, etc.
● Full modular design, flexible implementation of various types of data, various types of audio, various types of alarm volume, telephone, network arbitrary combination
● Industrial design, the use of industrial original devices, the use of gold PCB board, long-term reliable and stable operation of the equipment

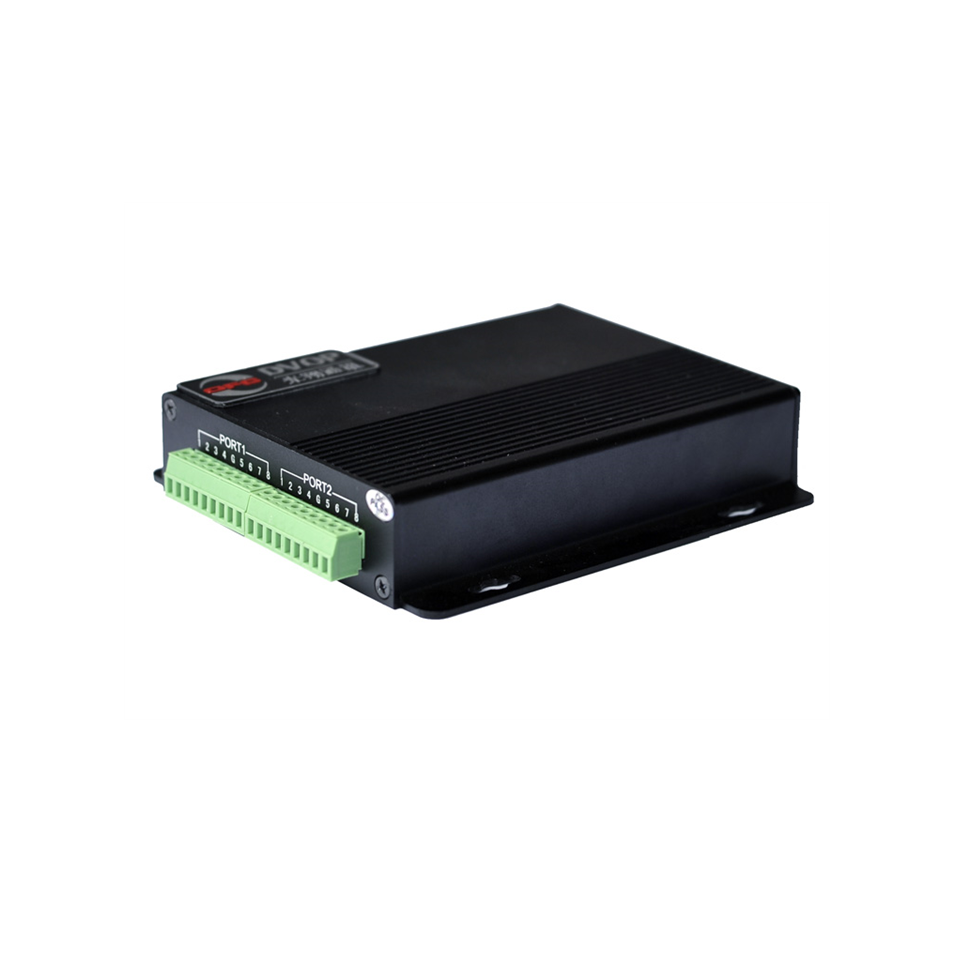

● Aluminum alloy housing, can be mounted on the desktop or wall
● Standard 5V power supply, can support 12VDC/24VDC/48VDC and other industrial control field power supply

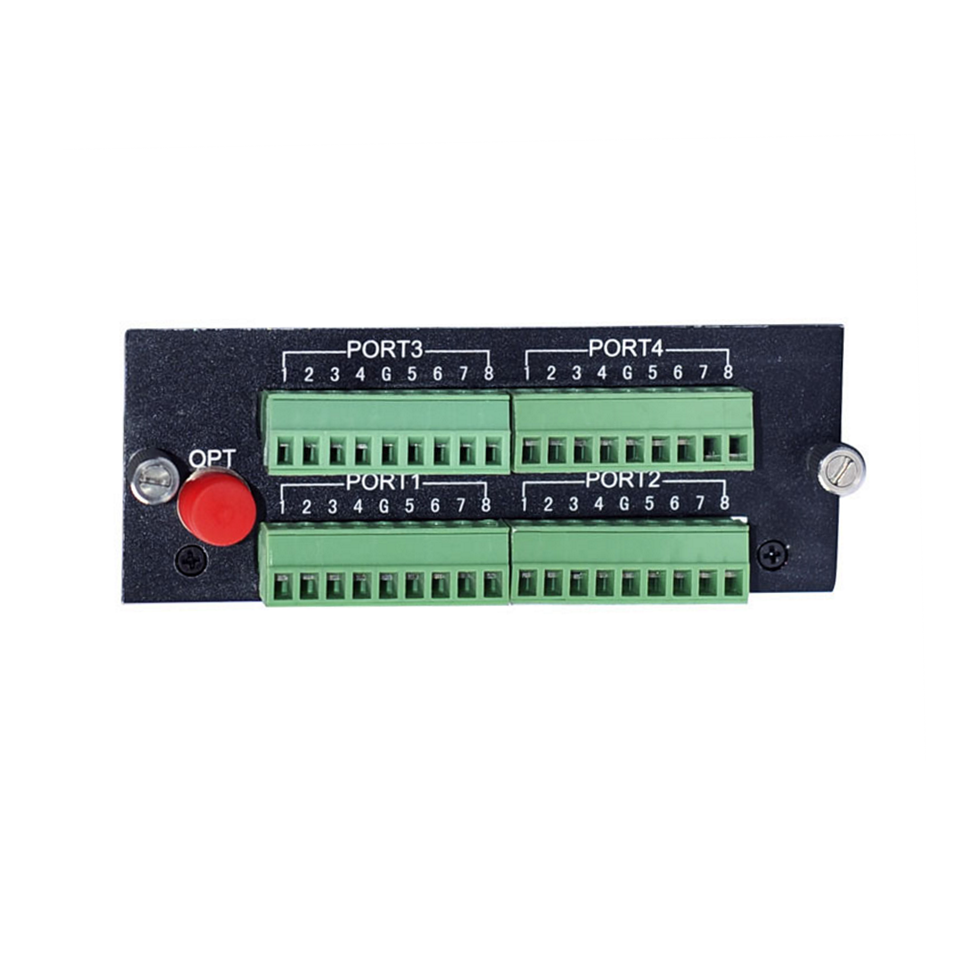

● Centralized rack card installation, using 2.5U rack, single rack can insert up to 21 pieces
● Support ring network, optical port support 1:1 backup working mode, dual routes form a self-healing ring, fully ensure the high reliability of important information transmission
● The industry's highest level of lightning, surge, ESD protection design to ensure long-term reliable operation of equipment in harsh electromagnetic environment
● Full digital optical fiber transmission platform, multi-service flexible configuration of the same platform, can form a complex communication network, saving investment resources
● The power supply supports 1+1 hot backup working mode, which is more suitable for high stability application requirements
● Support GIS-based e-MS network management system to facilitate the monitoring and management of large networks
● Support video/audio/data/telephone/intercom signal cross-connection function, remote scheduling and setting on the management platform
No electromagnetic interference (EMI), radio frequency interference (RFI) and common ground circuits
● With power supply, optical fiber link, switching status of perfect indication
1. Data
Interface: Simplex (half duplex)RS-485
Speed: DC-256Kbps
Bit error rate: <10-9
Connector: RS485
2. Optics
Transmission wavelength: multi-mode 850nm/1300nm, single-mode 1310nm/1550nm
Optical output power: -10dBm ~ -4dBm
Optical fiber ports: ST, FC, SC ports are optional. Single and double core options
Optical receiving sensitivity: ≤30dBm
Optical allowable chain loss range: 18dBm ~ 35dBm
5. Environmental indicators
Operating temperature: -40℃ ~ 75℃
Operating humidity: 0 ~ 95% no condensation
Storage temperature: -40℃-+85℃
Average trouble-free working hours: > 100,000 hours
6. Mechanical characteristics
Case color: black
Shell material: Aluminum alloy shell
Independent installation dimensions: length 200mm wide 155mm high 45mm
3. Network
The RJ-45 port can adapt to the 10M, 100M, and 1000M rates
Comply with standards: IEEE802.310Base-T Ethernet, IEEE802.3u 100Base-TX Fast
Ethernet IEEE802.3ab 1000Base-TX Giga Ethernet, IEEE802.3z 1000Base-LX/SX Giga Ethernet
UTP cable: Six types of UTP, length ≦100m. The RJ-45 port has the function of automatically identifying through and cross lines
4. Power Supply
Ac input: 90V-264V, 50/60Hz
Dc output: 5V, 0.2-2.0A
