- DVOP-AD-KU08 8-way switch measuring terminal

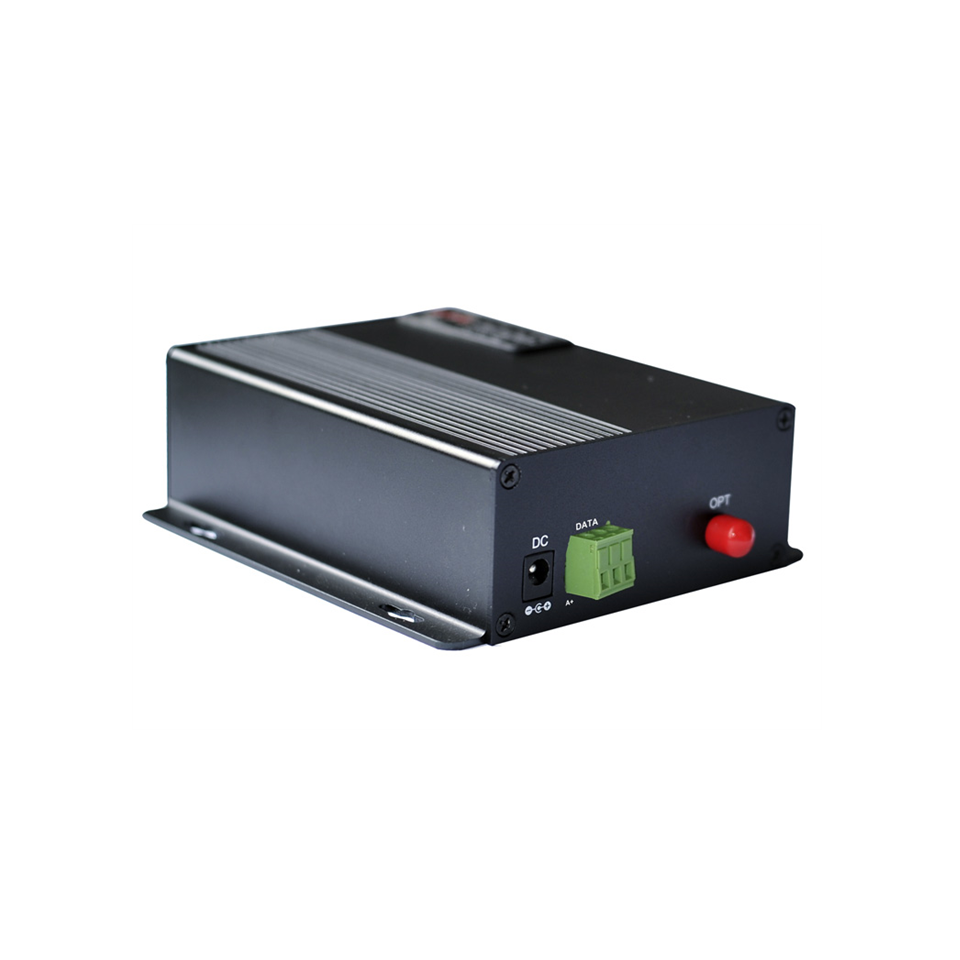

DVOP-AD-KU08 implements 8 one-way, unmanaged switch and alarm metering optical terminal on a single fiber, supports any active or passive alarm, switch, TTL, or passive switch, button input, supports any active or passive alarm, switch, TTL, relay contact output. Aluminum alloy shell, with desktop installation, wall mounted installation, centralized rack installation and other installation methods, using original industrial devices, data interface with multi-level lightning protection, suitable for use in a variety of harsh working environment. It can be connected to the e-MS network management system to realize real-time monitoring of equipment running status, environment, voltage and other parameters.
DVOP-AD optical terminal support centralized management card application, support network management function, can be seamlessly connected to our centralized management platform e-MS, support remote and local computer integrated transmission system network management function, open interface design allows integration into a higher level of network management system.
● The input adopts optical coupling
isolation, and the output adopts relay output, which has good electrical
isolation performance
● High current output, optional 1A/2A/5A
relay contact output
● Industrial design, the use of industrial
original devices, the use of gold PCB board, long-term reliable and stable
operation of the equipment
● Aluminum alloy housing, can be mounted on
the desktop or wall
● Standard 5V power supply, can support
12VDC/24VDC/48VDC and other industrial control field power supply

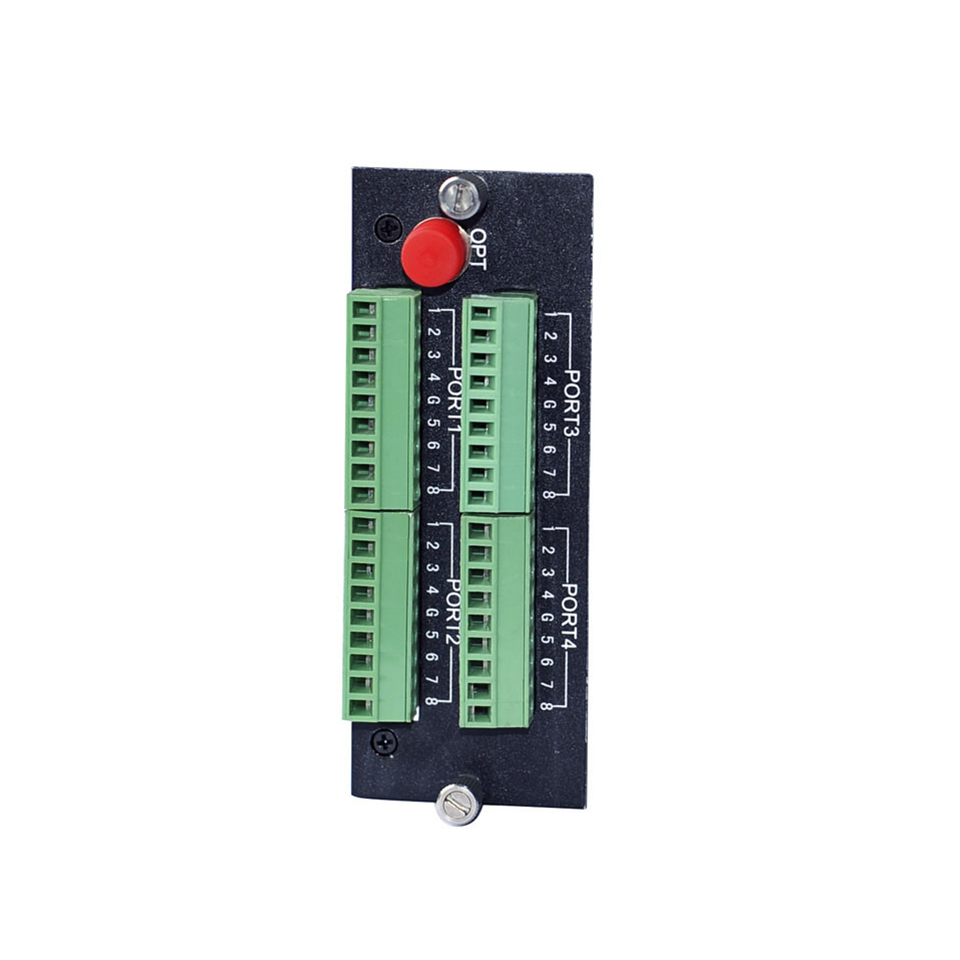

● Centralized rack card installation, using
2.5U rack, single rack can insert up to 21 pieces
● Support ring network, optical port
support 1:1 backup working mode, dual routes form a self-healing ring, fully
ensure the high reliability of important information transmission
● The industry's highest level of
lightning, surge, ESD protection design to ensure long-term reliable operation
of equipment in harsh electromagnetic environment
● Full digital optical fiber transmission
platform, multi-service flexible configuration of the same platform, can form a
complex communication network, saving investment resources
● The power supply supports 1+1 hot backup
working mode, which is more suitable for high stability application
requirements
● Support GIS-based e-MS network management
system to facilitate the monitoring and management of large networks
● Support
video/audio/data/telephone/intercom signal cross-connection function, remote
scheduling and setting on the management platform
No electromagnetic interference (EMI),
radio frequency interference (RFI) and common ground circuits
● With power supply, optical fiber link, switching status of perfect indication
|
Optical index |
Wavelength: |
Multimode :850/1310nm; Single mode :1310/1550nm; DFB:1260~1610nm |
|
Fiber output power: |
0 dBm ~ -3 dBm/-5 dBm ~ -10 dBm |
|
|
Reception sensitivity: |
≤-26dBm |
|
|
Single wavelength bandwidth: |
155M |
|
|
Transmission distance: |
Multi-mode 0-2km; Single mode: 0-120km |
|
|
Maximum optical power reservation: |
15dbm/20dbm/25dbm/30dbm |
|
|
Fiber optic interface |
FC/ST/SC Optional |
|
|
Alarm/switch quantity/remote control interface |
Alarm, switch quantity physical interface: |
Industry standard terminal /RJ45 |
|
Alarm, switching input signal: |
Any active or passive alarm, switching input, support TTL, passive switch, button |
|
|
Alarm, switching output signal: |
Any active or passive alarm, switching output, support TTL, relay contact output |
|
|
Size/power supply/power |
Wall-mounted |
|
|
Size: |
121mm(L)*130mm(W)*28mm(H) |
|
|
Power supply method: |
External power adapter,220V/110VAC, -48VDC, 24VDC, 12VDC optional |
|
|
Maximum power consumption: |
2W |
|
|
Rack plug-in card type |
||
|
Dimensions: |
It is a 2.5U standard and occupies one slot on a 2.5U rack |
|
|
Power supply mode: |
Rack voltage AC-DC 220V/110V, -48V, +24V, +12V optional |
|
|
Maximum power consumption: |
150W(complete frame) |
|
