- DVOP-VE-AI08 8 Lu Aifeng intercom optical terminal
-
DVOP-VE-AI08 is an 8-way Aifeng intercom dedicated optical terminal with complete core intellectual property rights of Guangxiang. It can transmit up to 16 channels of Aifeng intercom signals on a single fiber. Through unique voltage, signaling and audio demultiplexing technology, it can convert Aifeng analog intercom signals into optical signals in real-time, synchronous, distortion-free and high-quality transmission. Without making any changes to the Aifeng intercom host and extension, it can adaptively identify and be compatible with the audio and control protocols of the three series of Aifeng LEF, NEM and LEM, and can achieve all functions of the three series of Aifeng stably and reliably. DVOP-VE-AI08 is specially designed for the harsh environment of lightning, surge, electrostatic ESD, the use of bridge multi-level protection makes the equipment can operate stably and reliably in the environment of strong electric field, and realizes the all-round protection treatment of all external ports of the equipment telephone, audio, data, network, alarm volume, power supply, etc., reaching the three-level lightning protection standard.
DVOP-VE-AI08 optical terminal support centralized management card application, support network management function, can be seamlessly connected to our centralized management platform e-MS, support remote and local computer integrated transmission system network management function, open interface design allows integration into a higher level of network management system.
● Adaptive recognition and compatibility of
LEF, NEM, LEM three series of audio and control protocols, to achieve all
functions of Aifeng intercom
● Unique voltage/signaling/audio split
multiplexing technology to achieve seamless docking with Aifeng intercom,
without any change to Aifeng intercom host and extension
● Advanced adaptive technology, without any
adjustment when using
● Industrial design, the use of industrial
original devices, the use of gold PCB board, long-term reliable and stable
operation of the equipment
● Aluminum alloy housing, can be mounted on
the desktop or wall
● Standard 5V power supply, can support
12VDC/24VDC/48VDC and other industrial control field power supply
● Centralized rack card installation, using
2.5U rack, single rack can insert up to 21 pieces
● The industry's highest level of
lightning, surge, ESD protection design to ensure long-term reliable operation
of equipment in harsh electromagnetic environment
● Full digital optical fiber transmission
platform, multi-service flexible configuration of the same platform, can form a
complex communication network, saving investment resources
● The power supply supports 1+1 hot backup
working mode, which is more suitable for high stability application
requirements
● Support GIS-based e-MS network management
system to facilitate the monitoring and management of large networks
No electromagnetic interference (EMI),
radio frequency interference (RFI) and common ground circuits
● Complete indication of power supply, optical fiber link, call and call status
① Optical interface specifications
Wavelength: 850/1310nm(multimode); 1260~
1360,1470 ~ 1610 (single mode)
Fiber output power: 0 dBm to -3 dBm/-5 dBm
to -10 dBm
Receiving sensitivity: ≤-28dBm
Single wavelength bandwidth: 155M
Transmission distance: multi-mode 0-2km;
Single mode: 0-25km, 0-60km, 0-100km
Maximum optical power reserved: 18dbm,
20dbm, 25dbm, 30dbm
Optical fiber port FC/ST/SC Optional
② Love peak intercom interface
Physical interface: Industrial crimping
terminal
Line input impedance: intercom with Love
Peak
Line output impedance: intercom with Love
Peak
Intercom audio input and output level:
intercom with love peak
Intercom audio bandwidth: 20Hz ~ 20KHz
Intercom audio sampling rate: 48KHz
Intercom audio quantization: 24bit
Control signaling: Transparent support for
any in-band signaling
Connection mode: point-to-point star
connection
③ Working environment (outdoor or indoor)
Operating temperature: -40℃ ~ +80℃
Humidity: 0 ~ 95% no condensation
Protection grade: General industry standard
or special designation
④ Appearance size, power supply mode and
power dissipation

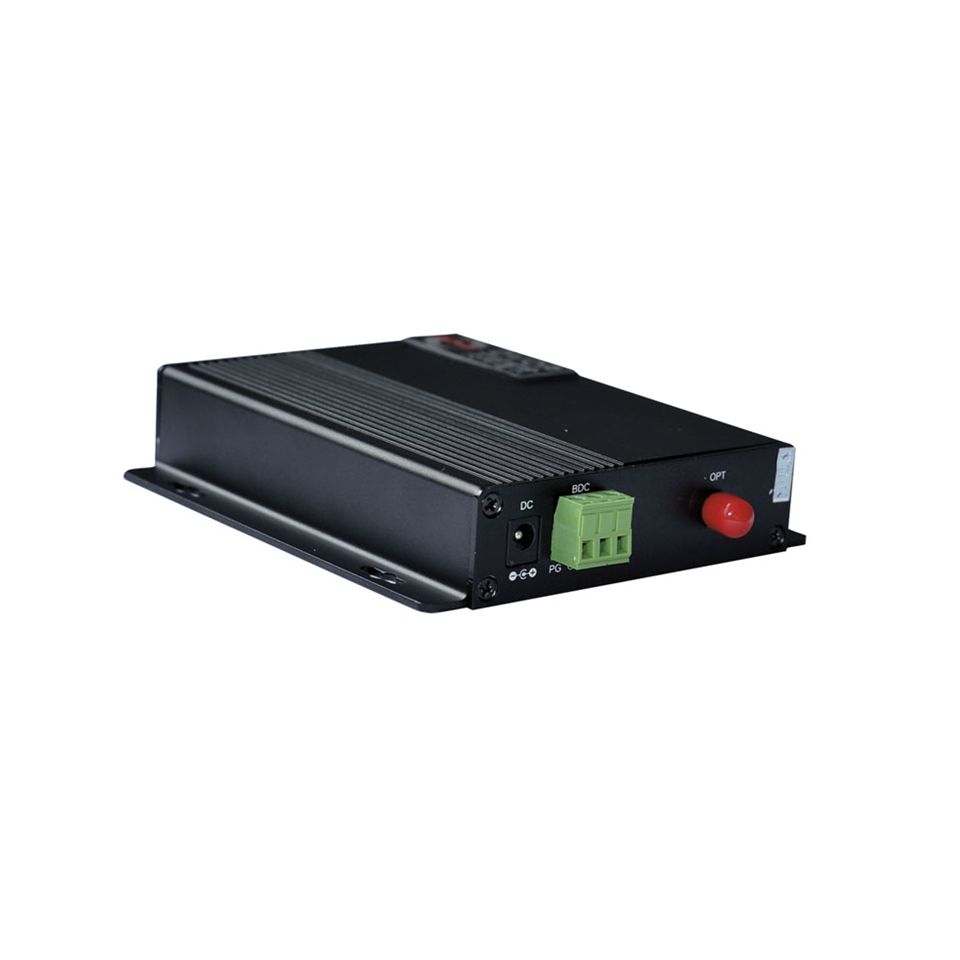

Wall-mounted or freestanding (placed on
monitoring site, outside or in the center) :
Size: 121mm(L)*130mm(W)*28mm(H),
121mm(L)*130mm(W)*44mm(H)
Power supply: +5V input, external power
adapter (AC/DC 220V/-48V/+12V/+6V optional)
Maximum power consumption: 5W
1U rack type (placed on monitoring site,
outside or in the center) :
Size: 1U Standard: 480mm(L) X 250mm(W) X
45mm(H)
Power supply: AC/DC 220V/110V-48V, +24V,
+12V, +6V Optional
Maximum power consumption: 15W

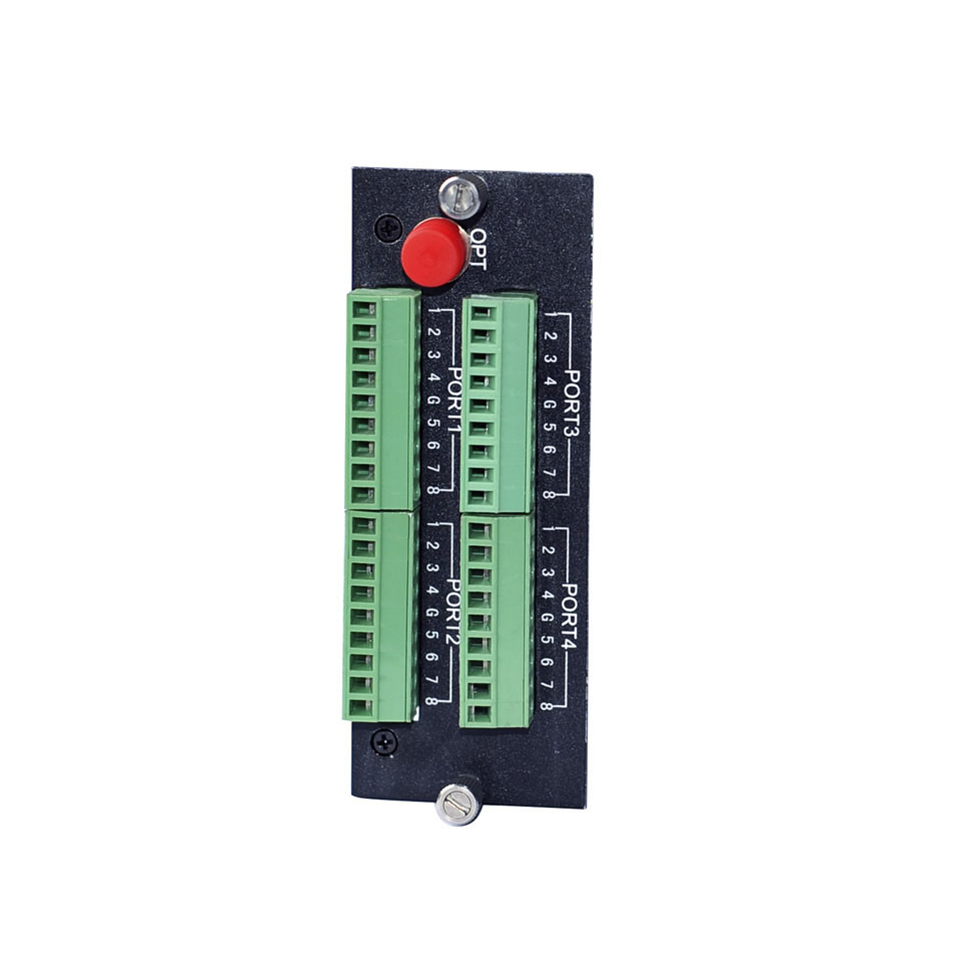

2.5U rack card type (up to 21 cards
inserted into the same rack) :
Size: A 2.5U standard board occupies 1/2
slots on a 2.5U rack
Power supply mode: +5V input, centralized
power supply by the 2.5U rack
Maximum power consumption: 150W
