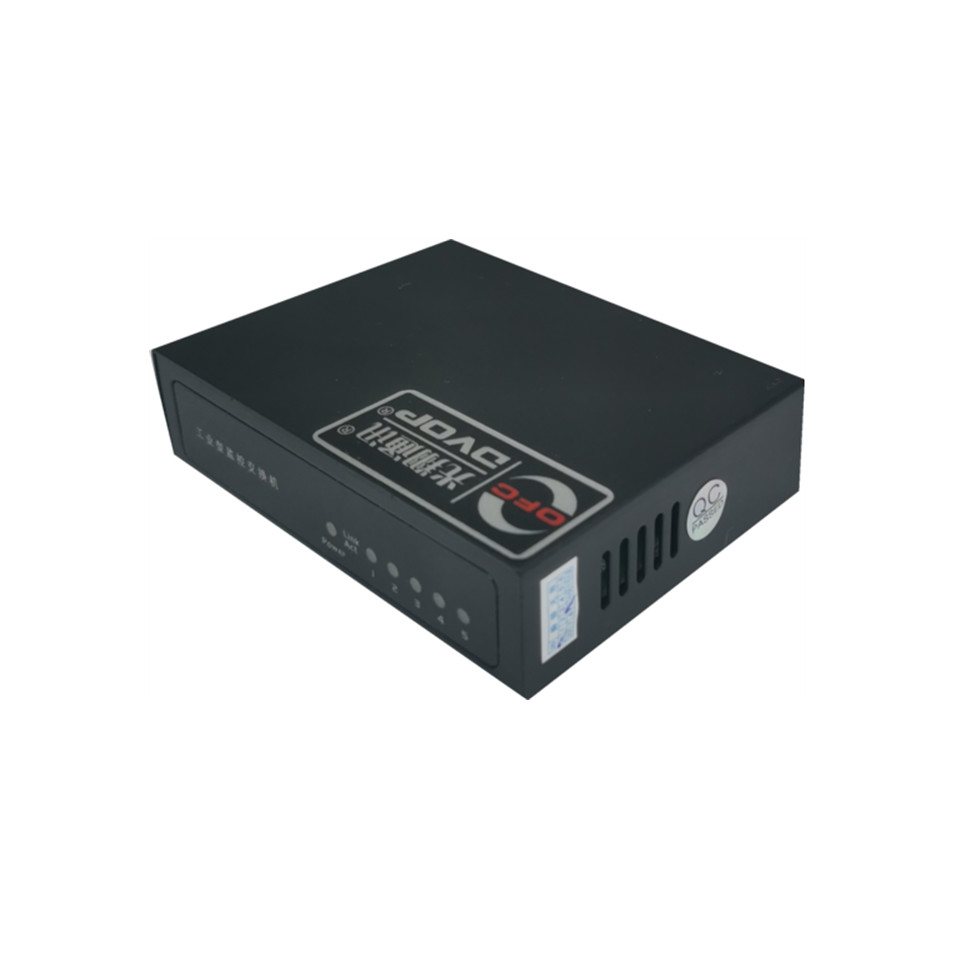

- DVOP-IN-EG4-EG1 Gigabit 5-port all-electric network switch
The equipment adopts the special chip of the famous international brand, adopts the store-and-forward mode, and realizes the line-speed non-blocking exchange and aggregation of 5 adaptive gigabit electrical ports. Support IEEE802.3, IEEE802.3U, IEEE802.3x and other series of international standards, support 4K MAC address table, store and forward, to achieve non-blocking real-time transmission of network signals.
Industrial grade design, suitable for harsh environment, transmission reliability requirements. All RJ45 electrical ports and feeders adopt advanced self-healing multi-stage lightning protection design, with high-level lightning, surge, ESD electrostatic protection capabilities. With the unique power soft start technology, so that no fear of power grid power outage or unstable power surge impact, especially suitable for reliable and stable long-term operation of equipment.
● 4 10/100/1000M adaptive RJ45 electrical ports, 1 10/100/1000M adaptive up-connected RJ45 electrical ports
● All ports support line speed forwarding
● Desktop/wall-mounted (optional)
● Support IEEE802.3, IEEE802.3U, IEEE802.3X and other international standards
● Each port supports MDI/MDIX automatic flipping and auto-negotiation
● Low power consumption design, quiet fanless, free from noise interference, more stable equipment
● 8K MAC address table depth
● Plug and play, no management required
● Soft start technology is not afraid of power outage or unstable power surge impact, especially suitable for use in unstable power grids
● With a perfect LED indicator, to provide working status and troubleshooting means
● 5/12/24/48VDC power supply (optional)
● Flow control mode: Full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard
● With port overcurrent, overvoltage and other complete protection functions
● All network ports and power ports adopt self-healing lightning protection design, reaching the domestic leading lightning protection level
● All ports support line speed switching, and line speed can be reached in the range of 64 ~ 1536 frames
|
Protocol standard |
IEEE 802.3, IEEE 802.3U, IEEE 802.3x |
|
Interfaces |
Five 10/100M adaptive RJ45 ports (Auto MDI/MDIX) |
|
Network media |
10Base-T: Class 3 or more
UTP100Base-TX |
|
Forwarding rate |
10Mbps:
14880pps100Mbps |
|
Backplane bandwidth |
1.8 Gbps / 18 Gbps |
|
MAC Address Table |
2K |
|
LED |
Power (power supply)
9 |
|
Dimensions |
140mm x 65mm x 27mm (L x W x H) |
|
Power supply specification |
5V 1A |
|
Packing Accessories 5 |
Port switch power adapter |
|
Operating environment |
Operating
temperature: -30℃ to 70℃ |
