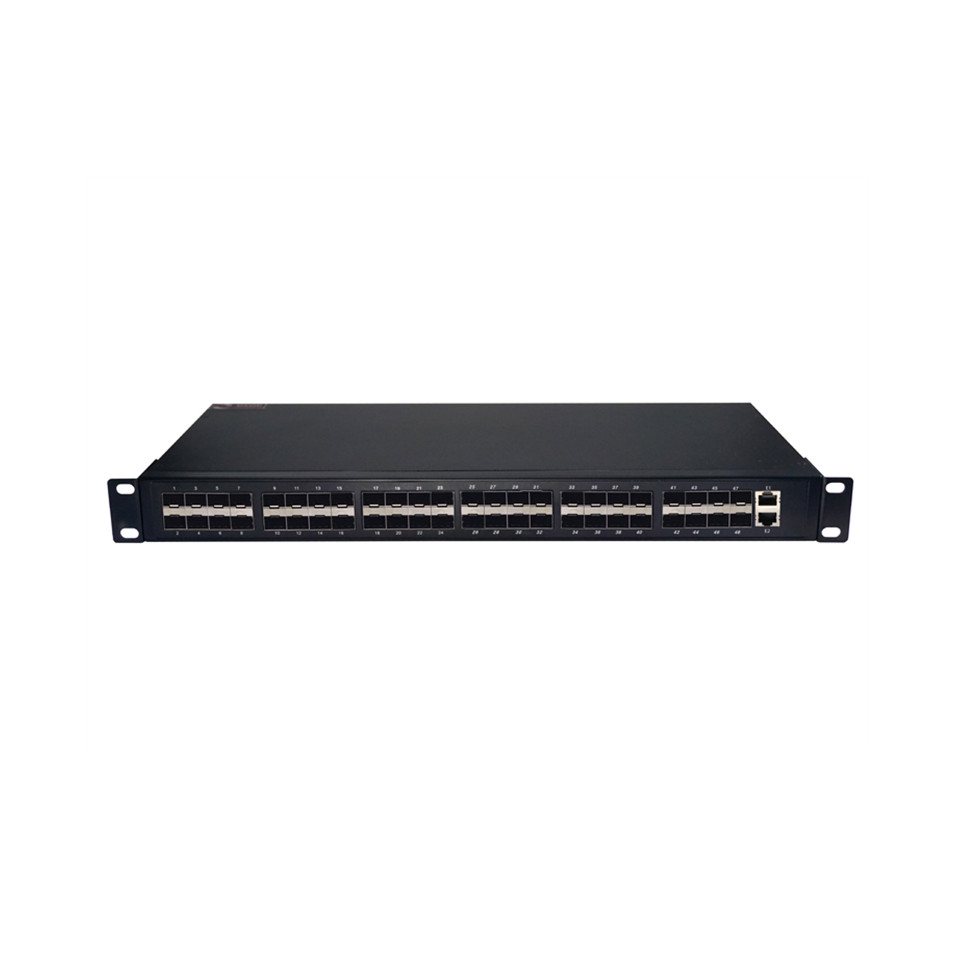

- DVOP-IN-IM-EQ2-OG48 Gigabit 48 optical 20,000 Gigabit Power Management optical switch
DVOP-IN-IM-EQ2-OG48 switch adopts a new generation of chip development of high-performance working group, enterprise full gigabit switch. This series of switches has 2 10-gigabit electrical ports, 48 gigabit ports, support 10/100/1000M connections, and can flexibly configure the network according to needs.
The DVOP-IN-IM-EQ2-OG48 switch can be connected to all Ethernet and fast Ethernet devices, and is compatible with existing devices. DVOP-IN-IM-EQ2-OG48 switches provide full gigabit, high-bandwidth, high-performance connectivity between workgroups or within an enterprise, while increasing the capacity of server farms and giving users faster access to the entire network. This switch can alleviate the network transmission bottleneck caused by insufficient network bandwidth and rapid growth of users, and less investment, simple management.
● Exchange capacity 136Gbps, non-blocking design, support full speed forwarding
● Gigabit optical fiber supports long-distance transmission up to 100 kilometers, and can be directly connected to the metropolitan backbone network
● Provide 802.1x and other ways of user authentication
● Powerful ACL, hardware support L2-L7 layer data filtering
● Port-MAC-IP multi-binding
● Support unique ARP intrusion detection function, can effectively prevent hacker ARP spoofing attacks
● Automatic identification of through cables and cross cables
● Adopt cluster technology, support multiple devices stack, use a unified IP address for centralized management, save address resources
● It can be managed through control port, Telnet, Web, SNMP and other ways
● Support Broad Drictor, HP Open View, Cisco Works 2000 and other general network management protocols
● Automatically detect and suppress broadcast storm, support IGMP message detection, effectively limit the overflow of broadcast messages
● Support full duplex mode and half duplex mode flow control
● Support Ethernet interface with a minimum step speed limit of 64K
● Support IP multicast and QoS
|
Standard configuration: |
24 gigabit SFP optical port +2 Gigabit Combo ports (multiplexed with optical ports),1 Console port |
|
Backplane bandwidth: |
56Gbps |
|
Forwarding rate: |
Full line speed filters forward |
|
Exchange method: |
Store and forward |
|
Address Sheet: |
8K |
|
Flow control: |
Half duplex using back pressure, full duplex using IEEE802.3x |
|
Broadcast control: |
Suppress the broadcast storm and reach a critical point to stop sending |
|
Multicast control: |
IGMP message automatic monitoring |
|
Quality of service: |
4 queue priorities with 802.1p support |
|
Port bundling: |
Each group has a maximum of 8 ports, and supports 8 ports at the same time, dynamic LACP or static aggregation |
|
Stack: |
Cluster-style |
|
Bridging: |
IEEE 802.1D-1998 Spanning Tree,
Connection Path Backup,IEEE802.1w(RSTP) as well |
|
VLAN: |
Support port-based VLAN,802.1Q tagged VLAN,GVRP dynamic VLAN configuration |
|
Number of vlans: |
4K arbitrary division |
|
Size: |
442 x 315 x 44mm, 4.0KG |
|
Power supply mode: |
Ac 110-240V adaptive,47-63Hz,1A/230V |
|
Indicator light: |
Power indicator, system indicator, connection/transceiver indicator, 10/100M indicator |
|
Ambient temperature/humidity: |
Run -40-70 ° C, store -45-85 ° C,0-90% no condensation |
