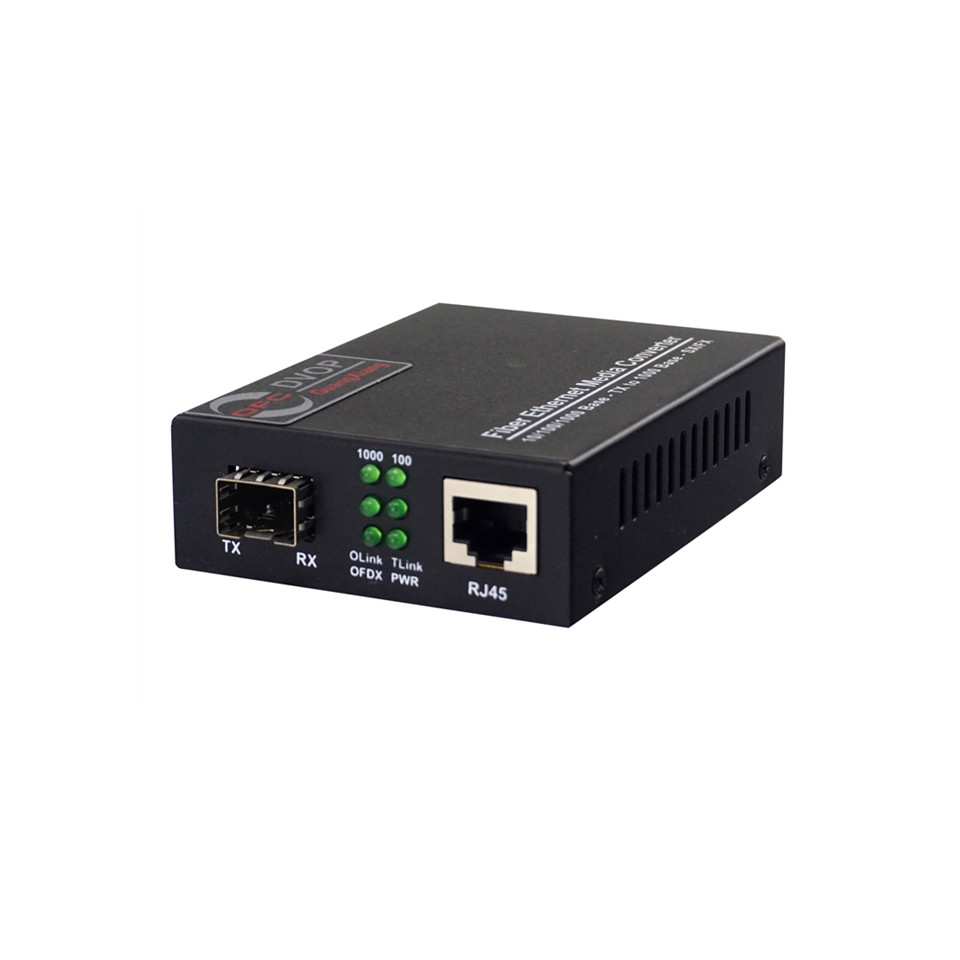

- DVOP-IN-A/B-M-EG1-OG1 Gigabit managed fiber transceiver
DVOP-IN-A/B-M-EG1-OG1 is a fiber optic transceiver with 1 gigabit optical port and 1 10/100/1000M adaptive electrical port, which absorbs the advantages of similar products at home and abroad, and the product is more flexible and practical. DVOP-IN-M-EG1-OG1 series transceivers are gigabit 1 optical 1 electrical fiber transceivers for high demand and high reliability engineering applications, using imported chips and new high-quality optical modules, stable performance and excellent quality. It is suitable for telecom, radio and television, broadband network and other network environments that need to improve optical fiber data traffic and high performance and high reliability. DVOP-IN-A/B-M-EG1-OG1 complies with IEE802.3, IEEE802.3u, 100Base-TX/FX, supports full-duplex IEEE802.3x, IEEE802.3z flow control and half-duplex flow control standards, and supports ultra-long frame transmission. It is fully compatible with all kinds of extended protocol data frames, automatically identifies MDI/MDI-X cross lines, and supports full duplex/half duplex mode. Supports centralized management rack and card applications, and can be managed to realize real-time monitoring of device running status and parameter performance configuration.
● 1 10/100/1000M adaptive electrical port and 1 optical port to achieve convergence and optical signal conversion between an Ethernet electrical interface and an optical interface
● Support IEEE802.3X full duplex flow control and half duplex back pressure flow control, support to prevent broadcast storm function
● Support ultra-long frame transmission, and are fully compatible with forwarding of various extended protocol data frames
● Comply with IEE802.3u, IEE802.3z/ab, IEE802.1q, 1000 Base-SX/LX, IEE802.3ah, 10Base-TX, 100Base-TX, 100Base-FX and other standards
● Automatic recognition of MDI/MDI-X cross lines, supporting full duplex/half duplex mode
● With perfect feed, optical path, electrical port indicator, the working state is clear
● 1600 byte packet management. It also receives 9k bytes
● Support link failure pass function
● Support remote fault function
● DIP switch Settings
● Fiber optic connectors: multi-mode and single-mode SC,ST,FC or LC connectors are optional
● Built-in watchdog timer detects internal switch errors
● Support centralized rack-mounted card installation, using 2U rack, a maximum of 16 pieces can be inserted into a single rack
● Fiber mode optional multi-mode/single mode, single fiber/double fiber; The optical fiber port can be SC/FC/ST
● Optical transmission distance optional: multi-mode 2Km/5Km; Single-mode 20 km / 40 km / 60 km / 80 km / 100 km / 120 km
● In line with carrier-grade operating standards, the average trouble-free working time is more than 50,000 hours
● 15.4KV lightning protection (external power supply, optional)
① Optical port specifications
Wavelength: Single mode :1310/1550nm; DFB:1260~1610nm
Fiber output power: 0 dBm to -3 dBm/-5 dBm to -10 dBm
Optical port rate: 1.25Gbps
Receiving sensitivity: ≤-26dBm
Transmission distance: Single mode: 0-25km, 0-60km, 0-100km
Maximum optical power reserved: 15dbm/20dbm/25dbm/30dbm
Optical interface type: Standard SC, FC/ST/LC Optional
② Ethernet interface specifications
Physical interface: Shield more than 5 RJ-45 seats
Interface rate: 10/100/1000M Adaptive, full duplex/half duplex
Interface standards: IEEE802.310Base-T, IEEE802.3u 100Base-TX, IEEE802.3u 100Base-TX
Flow control: IEE802.3X/IEE802.3Z full duplex flow control and half duplex flow control
Interface sequence: adaptive MDI/MDIX direct connection and cross-connection mode
③ Appearance size, power supply mode and power dissipation
Size: 70mm(L)*95mm(W)*28mm(H)
Power supply: Output DC 5V1A Input AC 110-265V or DC 48V or DC 12V (optional)
Maximum power consumption: 5W
DIP Settings:
→ DIP function (internal power supply only):
√ DIP1:"ON" enables the LFP alarm function,"OFF" disables the LFP function;
√ DIP2:"ON" makes the launch port work at 10M,"OFF" means that the launch port works in adaptive mode;
√ DIP3:"ON" makes the launch port work at 10M,"OFF" makes the launch port work at 100M;
√ DIP4:"ON" makes the launch port work in half duplex mode,"OFF" makes the launch port work in full duplex mode
→ DIP function (internal power supply only):
√ DIP1:"ON" enables the LFP alarm function and "OFF" disables the LFP function
√ DIP2:"ON" enables the launch port to work,"OFF" means that the launch port works in adaptive mode;
√ DIP3:"ON" makes the launch port work at 10M,"OFF" makes the launch port work at 100M;
√ DIP4:"ON" makes the launch port work in half duplex mode,"OFF" makes the launch port work in full duplex mode;
√ DIP5:"ON" makes the optical port work in half-duplex mode,"OFF" makes the optical port work in full-duplex mode;
√ DIP6:"ON" optical port and transmitter port both meet IEEE802.3X protocol,"OFF" optical port and transmitter port both meet IEEE802.3X protocol;
√ DIP7 and DIP8:
● All are "OFF", working in store and forward working mode (default mode);
● DIP7 "ON", DIP8 OFF ", working in the improved fast exchange mode;
● DIP7 "OFF", DIP "ON", working in conversion mode, no data storage, TX must be 100M
● All are "ON", working in the conversion mode, automatically converted to the first mode
