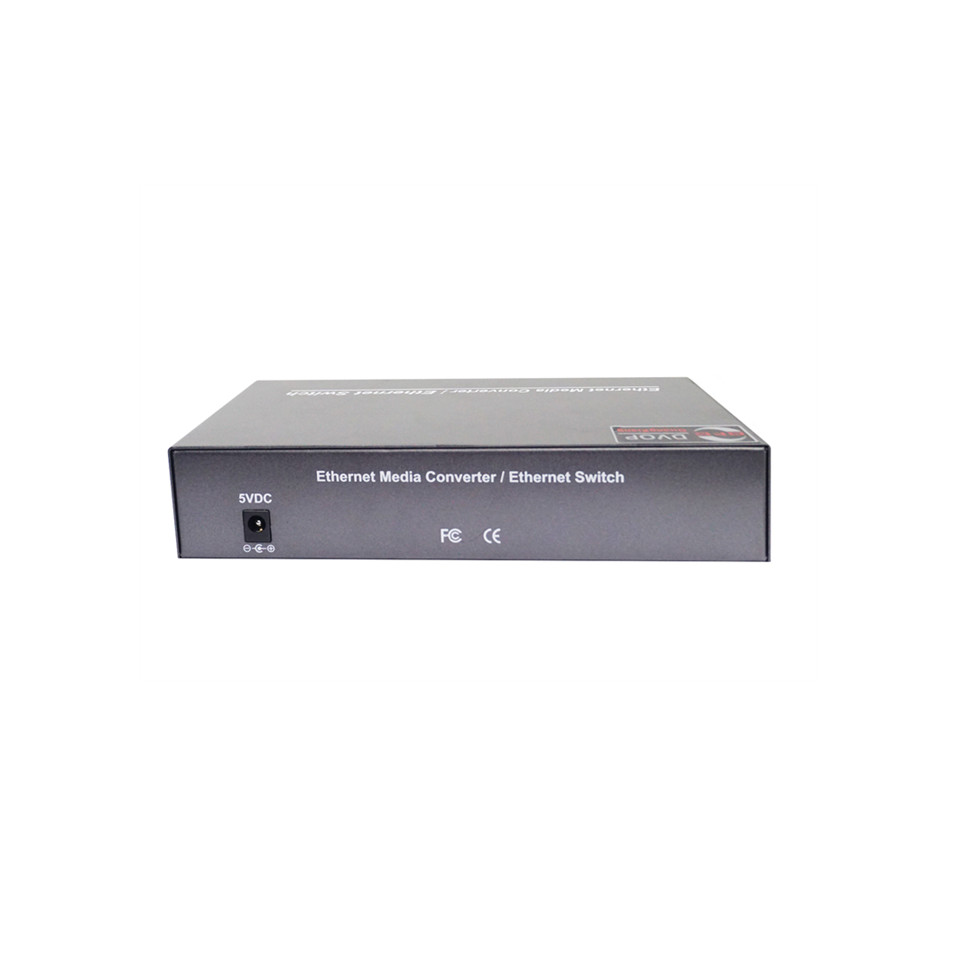

- DVOP-IN-A/B-EG8-OG2 Full gigabit 2 optical 8 electric fiber transceiver
DVOP-IN-A/B-EG8-OG2 is a fiber optic transceiver with two gigabit optical ports and 2 gigabit adaptive electrical ports, which absorbs the advantages of similar products at home and abroad, and the product is more flexible and practical. DVOP-IN-A/B-EG8-OG2 series transceivers are multi-port optical fiber transceivers designed for demanding and reliable engineering applications, using imported chips and new high-quality optical modules with stable performance and excellent quality. It is suitable for telecom, radio and television, broadband network and other network environments that need to improve optical fiber data traffic and high performance and high reliability. DVOP-IN-A/B-EG8-OG2 complies with IEE802.3, IEEE802.3u, 100Base-TX/FX, supports full-duplex IEEE802.3x, IEEE802.3z flow control and half-duplex flow control standards, supports ultra-long frame transmission, and is fully compatible with forwarding of various extended protocol data frames. Automatically identifies MDI/MDI-X crossover lines and supports full duplex/half duplex mode. Supports centralized management of rack-card applications, optional network management, real-time monitoring of device running status and parameter performance configuration.
● 8 10/100/1000M Gigabit adaptive
electrical ports and 2 Gigabit optical ports to achieve convergence and optical
signal conversion between multiple Ethernet electrical interfaces and optical
interfaces
● Support IEEE802.3X full duplex flow
control and half duplex back pressure flow control, support to prevent
broadcast storm function
● Support ultra-long frame transmission,
and are fully compatible with forwarding of various extended protocol data
frames
● Comply with IEE802.3u, IEE802.3z/ab,
IEE802.1q, IEE802.3ah, 10Base-TX, 100Base-TX, 100Base-FX and other standards
● Automatic recognition of MDI/MDI-X cross
lines, supporting full duplex/half duplex mode
● With perfect feed, optical path,
electrical port indicator, the working state is clear
● 1600 byte packet management. It also
receives 9k bytes
● Support link failure pass function
● Support remote fault function
● DIP switch Settings.
● Fiber optic connectors: multi-mode and
single-mode SC,ST,FC or LC connectors are optional
● Built-in watchdog timer detects internal
switch errors
● Fiber mode optional multi-mode/single
mode, single fiber/double fiber; The optical fiber port can be SC/FC/ST
● Optical transmission distance optional:
multi-mode 2Km/5Km; Single-mode 20 km / 40 km / 60 km / 80 km / 100 km
● In line with carrier-grade operating
standards, the average trouble-free working time is more than 50,000 hours
● 15.4KV lightning protection (external
power supply, optional)
① Optical port specifications
Wavelength: 1310nm/1550nm
Fiber output power: 0 dBm to -3 dBm/-5 dBm
to -10 dBm
Optical port rate: 1.25Gbps
Receiving sensitivity: ≤-34dBm
Transmission distance: 0-100km
Maximum optical power reserved:
15dbm/20dbm/25dbm/30dbm
Optical interface type: FC/SC/ST Optional
② Ethernet interface specifications
Physical interface: Shield more than 5
RJ-45 seats
Interface rate: 10M/100M/1000M Adaptive,
full duplex/half duplex
Interface standards: IEEE802.310Base-T,
IEEE802.3u 100Base-TX
Flow control: IEE802.3X/IEE802.3Z full
duplex flow control and half duplex flow control
Interface sequence: adaptive MDI/MDIX
direct connection and cross-connection mode
③ Appearance size, power supply mode and
power dissipation
Dimensions: 94mm x 71mm x 26mm (external
power supply); 160mm x 129mm x 33mm(internal power supply)
Power supply: Output DC 5V1A Input AC
110-265V or DC 48V or DC 12V (optional)
