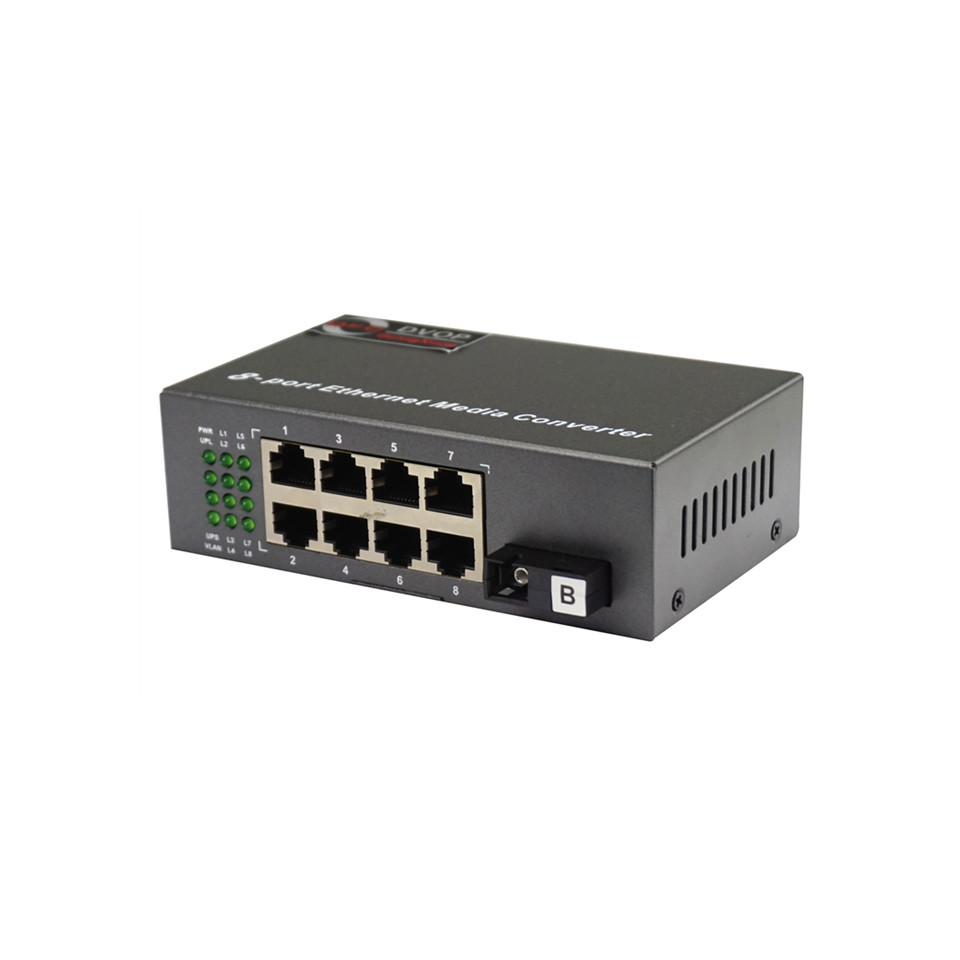

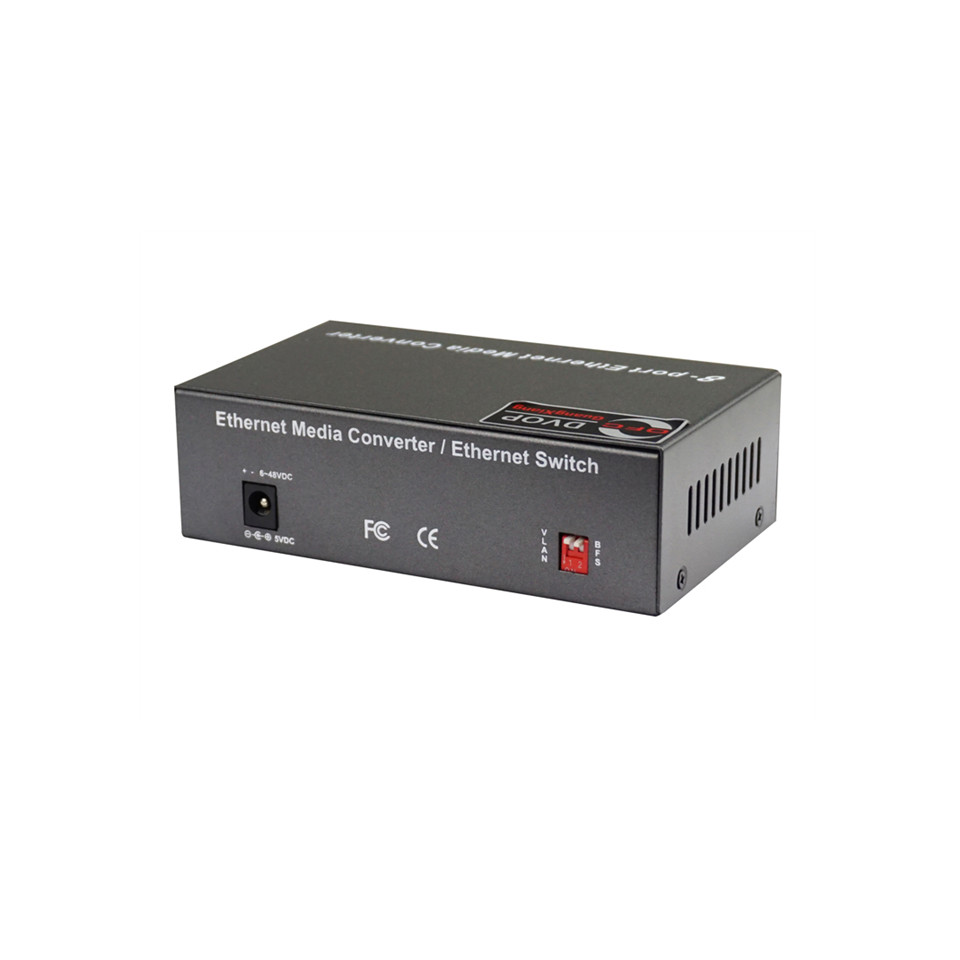

- DVOP-IN-A/B-EM8-OG1 Gigabit 1 optical 8 electrical fiber transceiver
DVOP-IN-A/B-EM8-OG1 has 1 gigabit optical port and 8 10/100M adaptive electrical port optical fiber transceivers, which absorb the advantages of similar products at home and abroad, and the products are more flexible and practical. Multi-port optical transceivers for high-demand and high-reliability engineering applications, using imported chips and new high-quality optical modules, stable performance and excellent quality. It is suitable for telecom, radio and television, broadband network and other network environments that need to improve optical fiber data traffic and high performance and high reliability. The product complies with IEE802.3, IEEE802.3u, 100Base-TX/FX, supports full-duplex IEEE802.3x, IEEE802.3z flow control and half-duplex flow control standards, supports ultra-long frame transmission, is fully compatible with the transmission of various extended protocol data frames, and automatically identifies MDI/MDI-X cross lines. Supports full duplex or half duplex mode. Supports centralized management of rack-card applications, optional network management, real-time monitoring of device running status and parameter performance configuration.
● 1 1000M optical interface, up to 8
10/100M self-applicable Ethernet ports
● Ethernet and power interfaces all adopt
self-healing multi-stage bridge lightning protection design, equipped with
special lightning protection grounding terminals, reaching the leading
lightning protection level in China
● The industry's unique and comprehensive
support for wall-mounted, desktop, plug-in network optical terminal computer
can be managed
● All aluminum alloy shell, wall-mounted
installation, with good three-proof performance
● Industrial design, suitable for harsh
environment, transmission reliability requirements
● Unique power supply 1+1 hot backup power
supply mode, completely eliminate the problem of operation failure caused by
power supply
● Network management, support Port VLAN,
support port bandwidth control, priority, dynamic MAC address table and other
intelligent configuration and provide port security control, broadcast storm
control, port monitoring and other functions
● Non-blocking storage-forward switching
mode, all ports can work in full duplex at full line speed at the same time
● Support priority queue, provide quality
of service assurance QoS
● Support IEEE802.3x full duplex flow
control/half duplex back pressure flow control
● Support IEEE802.1Q VLAN Settings, support
traffic control, effectively suppress broadcast storm
● Has a header blocking (HOL) prevention
mechanism to minimize packet loss
● Support port aggregation and port
isolation, support the physical isolation and logical isolation between each
electrical port
● Support VLAN ultra-long packet
transmission, support QOS, ensure VOIP packet transmission, support STP
spanning tree, form a redundant network
● Electrical port adaptive 10M/100M,
electrical port with automatic MDI/MDIX recognition and flip, adaptive full
duplex/half duplex function
● Support VLAN, QoS, TPv4, TPv6
● Support 2048 bytes of giant frames,
support up to 10K byte of ultra-long packets
● Perfect equipment running status
indicator, each optical port, electrical port has an independent running
indicator, which greatly facilitates the equipment opening
● +5V,+12V,+24V,-48V, 220V various power supply options, suitable for various control environments
① Optical port specifications
Wavelength: 1310nm/1550nm
Fiber output power: 0 dBm to -3 dBm/-5 dBm
to -10 dBm
Optical port rate: 1.25Gbps
Receiving sensitivity: ≤-34dBm
Transmission distance: 0-100km
Maximum optical power reserved:
15dbm/20dbm/25dbm/30dbm
Optical interface type: FC/SC/ST Optional
② Ethernet interface specifications
Physical interface: Shield more than 5
RJ-45 seats
Interface speed: 10M/100M adaptive, full
duplex/half duplex
Interface standards: IEEE802.310Base-T,
IEEE802.3u 100Base-TX
Flow control: IEE802.3X/IEE802.3Z full
duplex flow control and half duplex flow control
Interface sequence: adaptive MDI/MDIX
direct connection and cross-connection mode
③ Appearance size, power supply mode and
power dissipation
Dimensions: 94mm x 71mm x 26mm (external
power supply); 160mm x 129mm x 33mm(internal power supply)
Power supply: Output DC 5V1A Input AC
110-265V or DC 48V or DC 12V (optional)
Maximum power consumption: 6W
