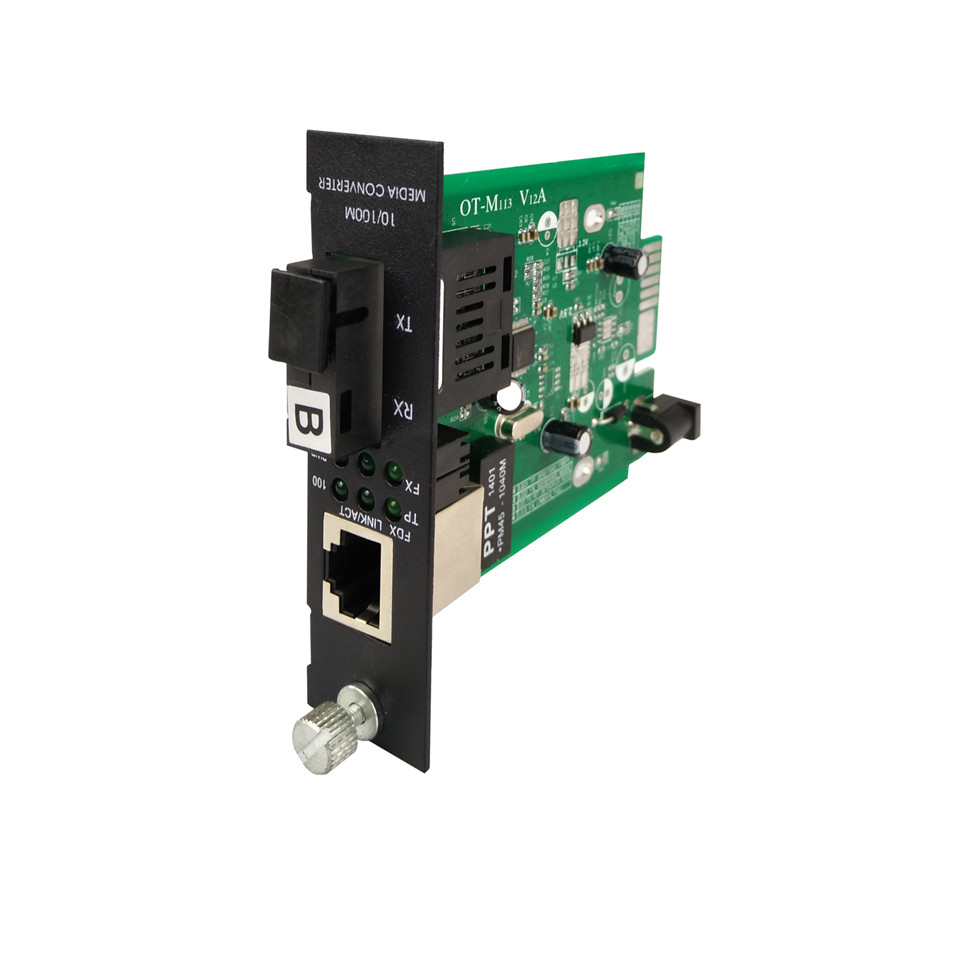

- DVOP-IN-A/B-EM1-OM1-SI Industrial card type 1 optical 1 electrical transceiver

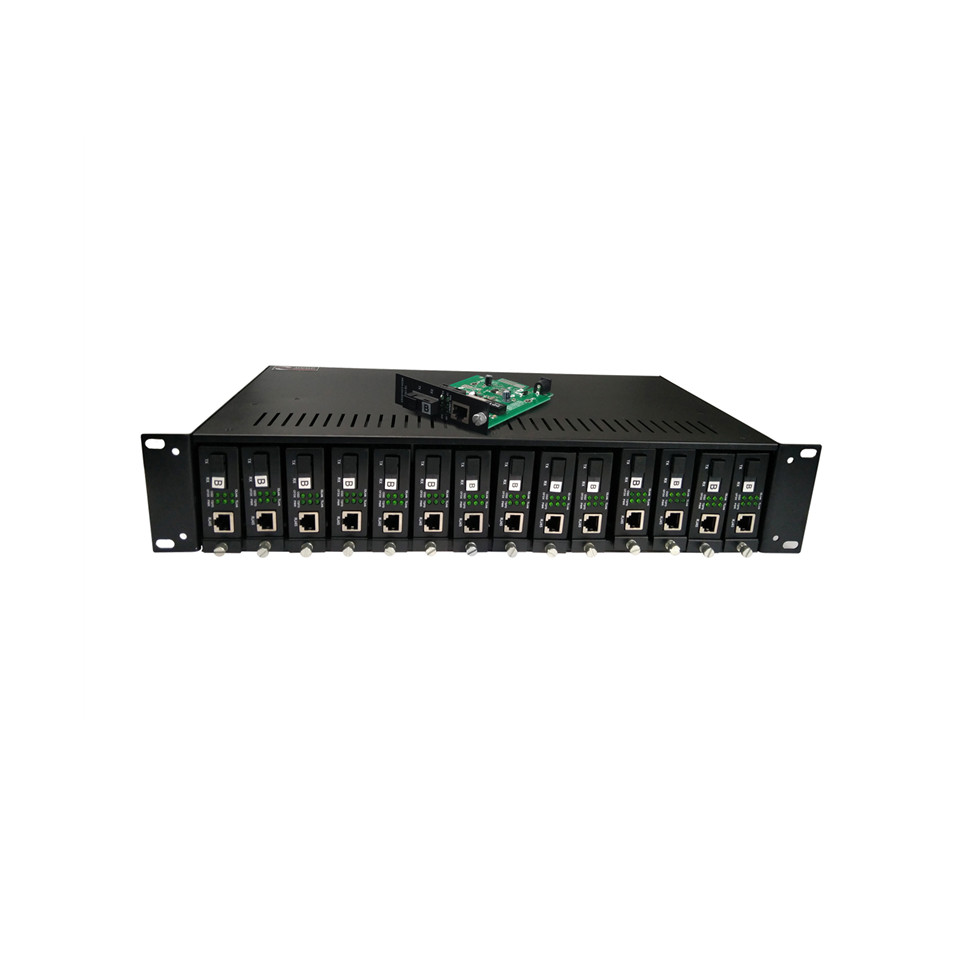

DVOP-IN-A/B-EM1-OM1-SI is an industrial transceiver with a 100M optical port and a 10/100M adaptive electrical port. It has a private aluminum alloy shell, corrosion resistance, oxidation resistance, and good three defenses. Wall-mounted installation is especially convenient for traffic ITS, high-speed and other high-definition video surveillance, and engineering front-end use. All electrical ports and feeders adopt advanced self-healing multi-stage bridge lightning protection design, equipped with special lightning protection grounding terminals, with high-level lightning, surge, ESD electrostatic protection capabilities. Supports the 1+1 dual power supply hot backup mode, can adapt to long-term harsh engineering environment applications, supports the plug-in application, adopts the DVOP-J2.5 rack, a single rack can achieve high-density 21 slots. Optional network management plug-in, seamless access to the Guangxiang transmission management platform e-MS, can achieve real-time status monitoring of each device, equipment working environment monitoring, optical link status monitoring, and to achieve the configuration of each Ethernet port and other functions, support remote and local computer integrated transmission system network management functions. The open interface design allows integration into higher level network management systems.
● 1 100M optical interface, 1 10/100M self-applicable Ethernet port
● Ethernet and power interfaces all adopt self-healing multi-stage bridge lightning protection design, equipped with special lightning protection grounding terminals, reaching the leading lightning protection level in China
● The industry's unique and comprehensive support for wall-mounted, desktop, plug-in network optical terminal computer can be managed
● All aluminum alloy shell, wall-mounted installation, with good three-proof performance
● Industrial design, suitable for harsh environment, transmission reliability requirements
● Unique power supply 1+1 hot backup power supply mode, completely eliminate the problem of operation failure caused by power supply
● Network management, support Port VLAN, support port bandwidth control, priority, dynamic MAC address table and other intelligent configuration and provide port security control, broadcast storm control, port monitoring and other functions
● Non-blocking storage-forward switching mode, all ports can work in full duplex at full line speed at the same time
● Support priority queue, provide quality of service assurance QoS
● Support IEEE802.3x full duplex flow control/half duplex back pressure flow control
● Support IEEE802.1Q VLAN Settings, support traffic control, effectively suppress broadcast storm
● Has a header blocking (HOL) prevention mechanism to minimize packet loss
● Support port aggregation and port isolation, support the physical isolation and logical isolation between each electrical port
● Support VLAN ultra-long packet transmission, support QOS, ensure VOIP packet transmission, support STP spanning tree, form a redundant network
● Electrical port adaptive 10M/100M, electrical port with automatic MDI/MDIX recognition and flip, adaptive full duplex/half duplex function
● Support VLAN, QoS, TPv4, TPv6
● Support 2048 bytes of giant frames, support up to 10K byte of ultra-long packets
● Perfect equipment running status indicator, each optical port, electrical port has an independent running indicator, which greatly facilitates the equipment opening
● +5V,+12V,+24V,-48V, 220V various power supply options, suitable for various control environments
① Optical port specifications
Wavelength: 1310nm/1550nm
Fiber output power: 0dBm to -3dBm/-5dBm to -10dBm/-10 to -16dBm
Number of fiber cores: 1, 2 optional
Optical port speed: 155Mbps
Receiving sensitivity: ≤-31dBm
No relay transmission distance: single mode: 0-100Km; Multi-mode: 0-2Km
Maximum optical power reserved: 15dbm/20dbm/25dbm/30dbm
Optical interface type: FC/SC/ST/LC Optional
② Ethernet interface specifications
Physical interface: Shield more than 5 RJ-45 seats
Electrical transmission distance: 120 meters
Interface speed: 10M/100M adaptive, full duplex/half duplex
Interface standards: IEEE802.310Base-T, IEEE802.3u 100Base-TX
Flow control: IEE802.3X full duplex flow control and half duplex flow control
Interface sequence: adaptive MDI/MDIX direct connection and cross-connection mode
③ Working environment
Operating temperature: -40℃ ~ +80℃
Relative humidity: 5 ~ 95% no condensation
④ Appearance size, power supply mode and power dissipation
Dimensions: 94mm x 71mm x 26mm (external power supply)
Heat dissipation mode: natural cooling, no fan
Power supply: AC 110-265V, AC 24V, DC 48V, DC 12V (optional)
