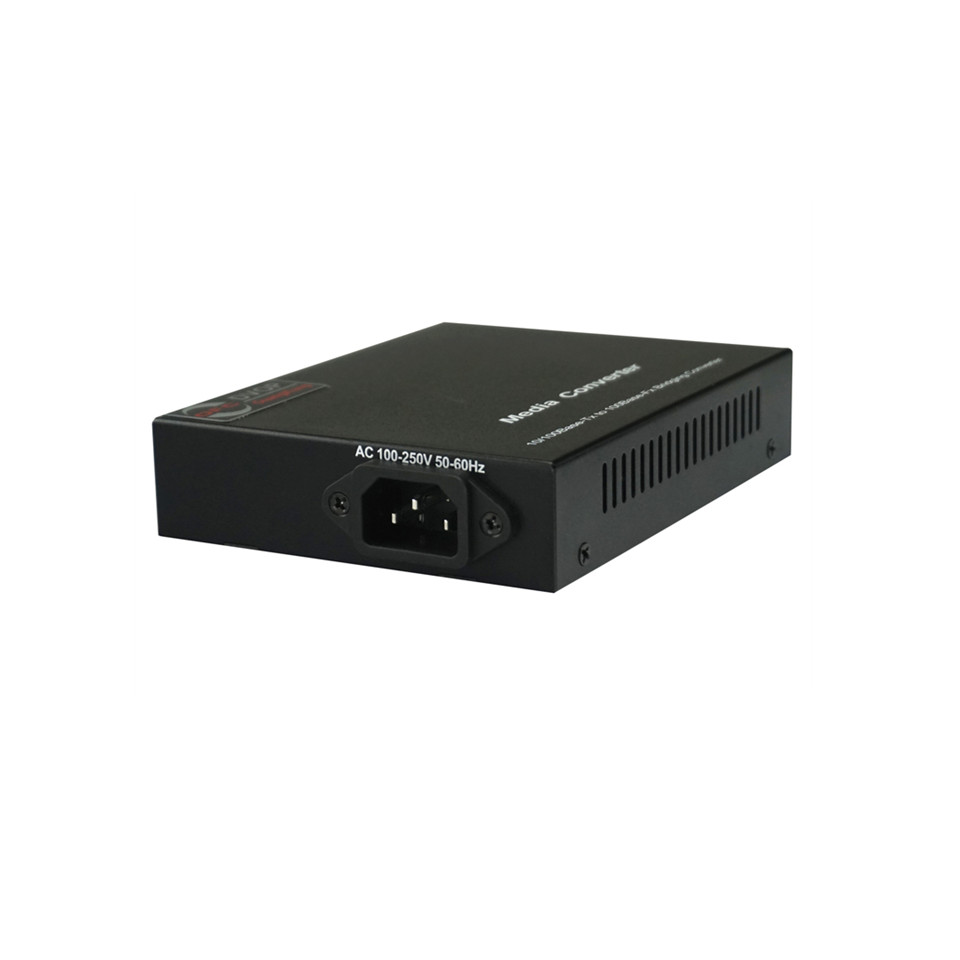

- DVOP-IN-A/B-EM1-OM1-220 100 megabit dual fiber transceiver
The DVOP-IN-A/B-EM1-OM1-220 is a 100-megabit optical transceiver for demanding and highly reliable engineering applications, featuring imported chips and new high-quality optical modules with stable performance and excellent quality. It is suitable for telecom, radio and television, broadband network and other network environments that need to improve optical fiber data traffic and high performance and high reliability.
DVOP-IN-A/B-EM1-OM1-220 complies with IEE802.3, IEEE802.3u, 100Base-TX/FX, supports full-duplex IEEE802.3x, IEEE802.3z flow control and half-duplex flow control standards, and supports ultra-long frame transmission. It is fully compatible with all kinds of extended protocol data frames, automatically identifies MDI/MDI-X cross lines, and supports full duplex/half duplex mode. Supports centralized management of rack-card applications, optional network management, real-time monitoring of device running status and parameter performance configuration.
● 1 10/100M adaptive electrical port and 1
100 megabit optical port to achieve photoelectric signal conversion between
twisted pair and optical fiber
● Support IEEE802.3X full duplex flow
control and half duplex back pressure flow control, support to prevent
broadcast storm function
● Support ultra-long frame transmission,
and are fully compatible with forwarding of various extended protocol data
frames
● Comply with IEE802.3u, IEE802.3z/ab,
IEE802.1q, 1000 Base-SX/LX, IEE802.3ah, 10Base-TX, 100Base-TX, 100Base-FX and
other standards
● Automatic recognition of MDI/MDI-X cross
lines, supporting full duplex/half duplex mode
● With perfect feed, optical path,
electrical port indicator, the working state is clear
● Support centralized rack-mounted card
installation, using 2U rack, a maximum of 16 pieces can be inserted into a
single rack
● Fiber mode optional multi-mode/single
mode, single fiber/double fiber; The optical fiber port can be SC/FC/ST
● Optical transmission distance optional:
multi-mode 2Km/5Km; Single-mode 20 km / 40 km / 60 km / 80 km / 100 km / 120 km
● In line with carrier-grade operating
standards, the average trouble-free working time is more than 50,000 hours
● Product size:
70mm(length)*95mm(width)*28mm(height)
|
Optical index |
Wavelength: |
Multimode :850/1310nm; Single mode :1310/1550nm; DFB:1260~1610nm |
|
Fiber output power: |
0 dBm ~ -3 dBm/-5 dBm ~ -10 dBm |
|
|
Reception sensitivity: |
≤-26dBm |
|
|
Single wavelength bandwidth: |
155Mbps |
|
|
Transmission distance: |
Multi-mode 0-5km; Single mode: 0-120km |
|
|
Maximum optical power reservation: |
15dbm/20dbm/25dbm/30dbm |
|
|
Fiber optic interface |
FC/ST/SC Optional |
|
|
Ethernet interface |
Physical interface: |
RJ-45 seat/quad strip cable |
|
Interface rate: |
10M/100M adaptive, full duplex/half duplex |
|
|
Interface standard: |
IEEE802.310Base-T, IEEE802.3u 100Base-TX/FX |
|
|
Flow control: |
IEE802.3X/IEE802.3Z Full duplex flow control and half duplex flow control |
|
|
Line sequence: |
Adaptive MDI/MDIX direct connection and cross-connection mode |
|
|
Power Supply/Power |
Power supply method: |
Built-in 220V power supply |
|
Maximum power consumption: |
5W |
