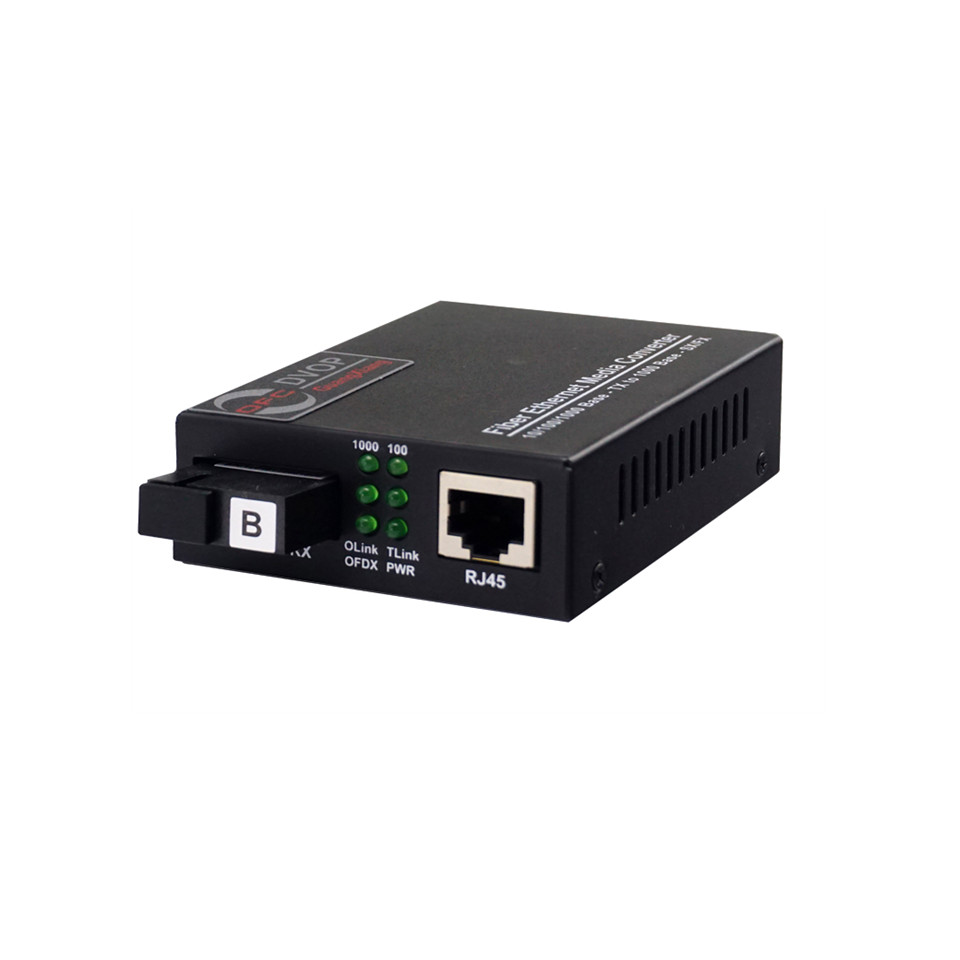

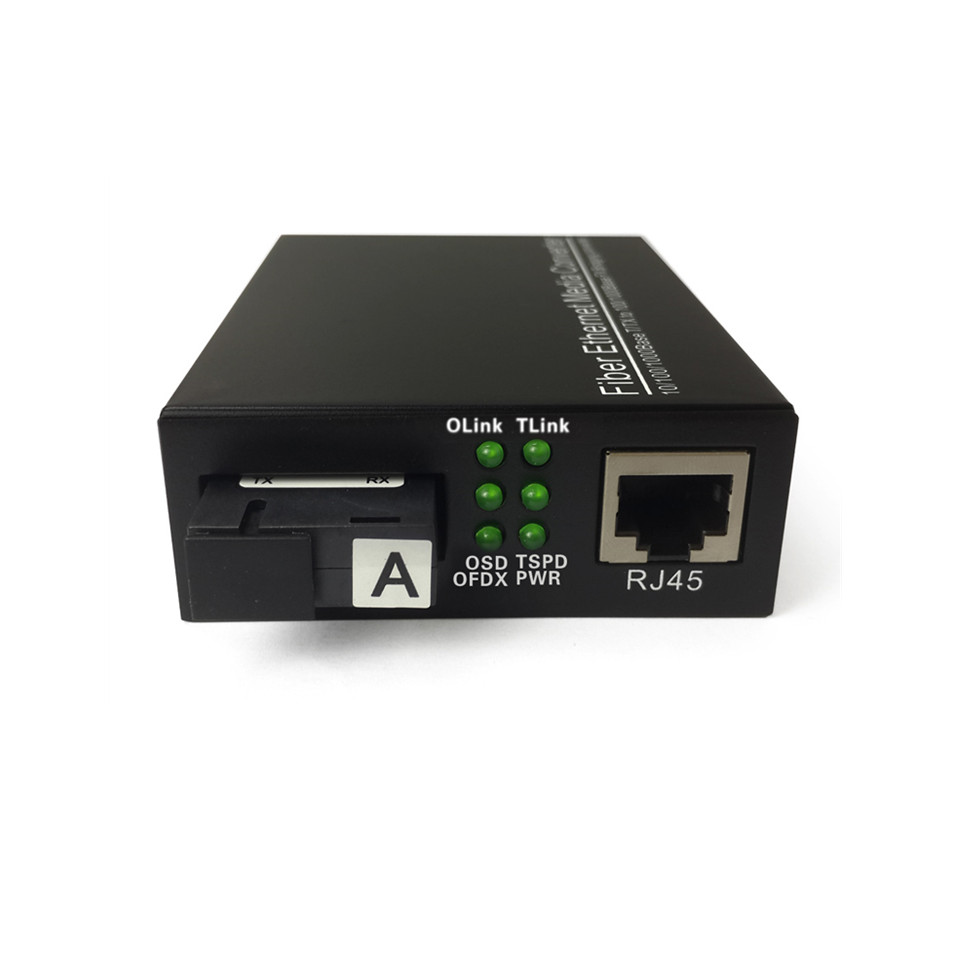

- DVOP-IN-A/B-EG1-OG1 Gigabit fiber transceiver
DVOP-IN-A/B-EG1-OG1 is a gigabit optical transceiver for demanding and highly reliable engineering applications, featuring imported chips and new high-quality optical modules with stable performance and excellent quality. It is suitable for telecom, radio and television, broadband network and other network environments that need to improve optical fiber data traffic and high performance and high reliability.
DVOP-IN-A/B-EG1-OG1 complies with IEE802.3, IEEE802.3u, IEEE802.3ab, 1000Base-LX/SX and other standards. Supports full-duplex IEEE802.3x, IEEE802.3z flow control and half-duplex flow control standards, supports ultra-long frame transmission, is fully compatible with the transmission of various extended protocol data frames, automatically identifies MDI/MDI-X cross lines, and supports full-duplex/half-duplex mode. Supports centralized management of rack-card applications, optional network management, real-time monitoring of device running status and parameter performance configuration.
● 1 10/100/1000M adaptive electrical port
and 1 gigabit optical port to achieve photoelectric signal conversion between
twisted pair and optical fiber
● Support IEEE802.3X full duplex flow
control and half duplex back pressure flow control, support to prevent
broadcast storm function
● Support ultra-long frame transmission,
and are fully compatible with forwarding of various extended protocol data
frames
● Comply with IEE802.3, IEEE802.3u,
IEEE802.3ab, 1000Base-LX/SX and other standards
● Automatic recognition of MDI/MDI-X cross
lines, supporting full duplex/half duplex mode
● With perfect feed, optical path,
electrical port indicator, the working state is clear.
● Support centralized rack-mounted card
installation, using 2U rack, a maximum of 16 pieces can be inserted into a
single rack
● Fiber mode optional multi-mode/single
mode, single fiber/double fiber; The optical fiber port can be SC/FC/ST
● Optical transmission distance optional:
multi-mode 2Km; Single-mode 20 km / 40 km / 60 km / 80 km / 100 km
● In line with carrier-grade operating
standards, the average trouble-free working time is more than 50,000 hours.
① Optical port specifications
Wavelength: 1310nm/1550nm
Fiber output power: 0 dBm to -3 dBm/-5 dBm
to -10 dBm
Number of fiber cores: 1, 2 optional
Optical port rate: 1.25Gbps
Receiving sensitivity: ≤-28dBm
No relay transmission distance: single
mode: 0-100Km; Multi-mode: 0-2Km
Maximum optical power reserved:
15dbm/20dbm/25dbm/30dbm
Optical interface type: FC/SC/ST/LC
Optional
② Ethernet interface specifications
Physical interface: Shield more than 5
RJ-45 seats
Electrical transmission distance: 120
meters
Interface rate: 10M/100/1000M Adaptive,
full duplex/half duplex
Interface standards: IEEE802.310Base-T,
IEEE802.3u 100Base-TX, IEEE802.3z 1000Base-TX
Flow control: IEE802.3X full duplex flow
control and half duplex flow control
Interface sequence: adaptive MDI/MDIX
direct connection and cross-connection mode
③ Working environment
Operating temperature: -40℃ ~ +80℃
Relative humidity: 5 ~ 95% no condensation
④ Appearance size, power supply mode and
power dissipation
Dimensions: 94mm x 71mm x 26mm (external
power supply); 160mm x 129mm x 33mm(internal power supply)
Heat dissipation mode: natural cooling, no
fan
Power supply: Output DC 5V2A Input AC
110-265V or DC 48V or DC 12V (optional)
Maximum power consumption: 3W
