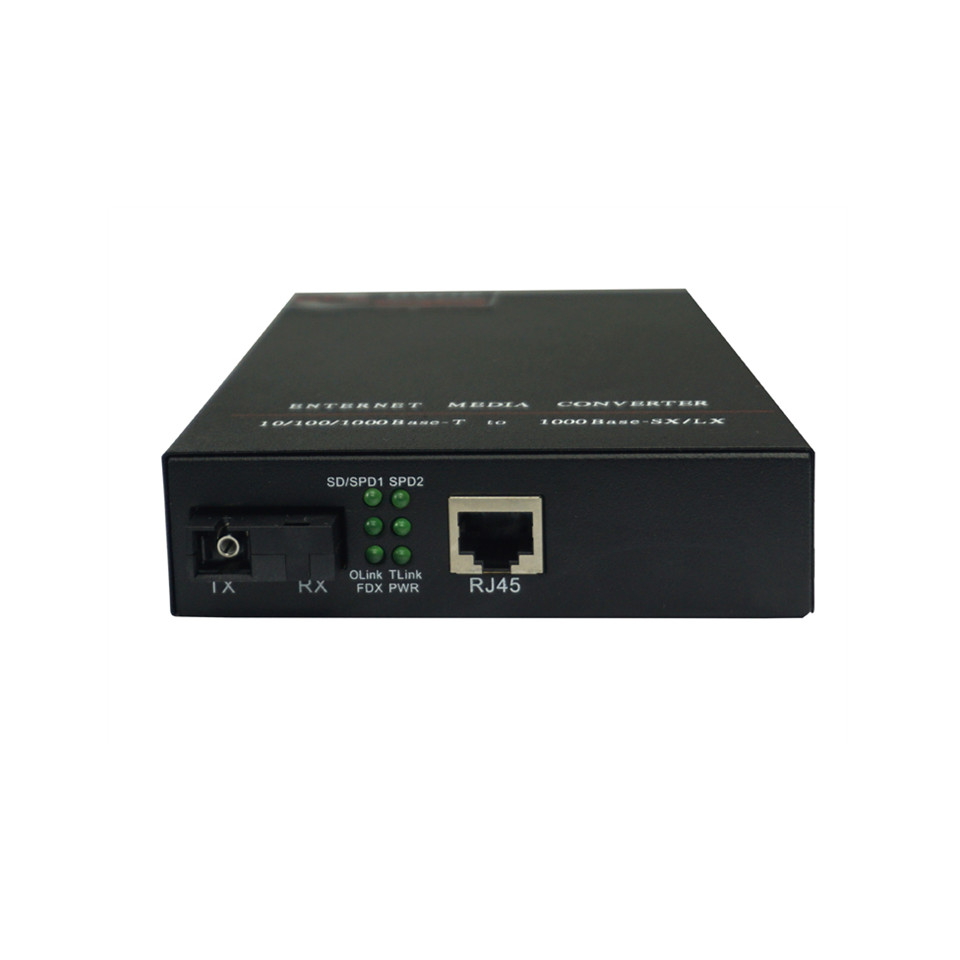

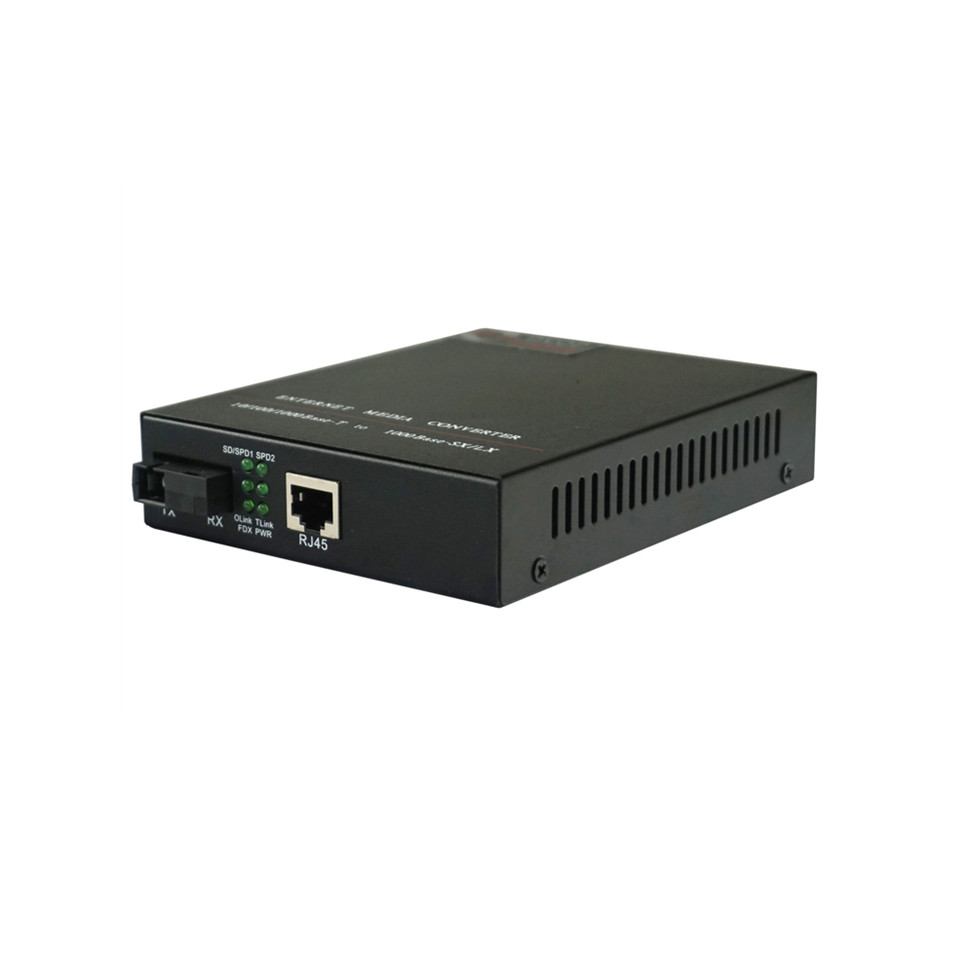

- DVOP-IN-A/B-EG1-OG1-220 Gigabit twin-fiber transceiver
DVOP-IN-A/B-EG1-OG1-220 is a gigabit optical transceiver for demanding and highly reliable engineering applications, featuring imported chips and new high-quality optical modules with stable performance and excellent quality. It is suitable for telecom, radio and television, broadband network and other network environments that need to improve optical fiber data traffic and high performance and high reliability.
DVOP-IN-A/B-EG1-OG1-220 complies with IEE802.3, IEEE802.3u, 1000Base-TX/FX, supports full-duplex IEEE802.3x, IEEE802.3z flow control and half-duplex flow control standards, and supports ultra-long frame transmission. It is fully compatible with all kinds of extended protocol data frames, automatically identifies MDI/MDI-X cross lines, and supports full duplex/half duplex mode. Supports centralized management of rack-card applications, optional network management, real-time monitoring of device running status and parameter performance configuration.
● 1 10/100/1000M adaptive electrical port and 1 gigabit optical port to realize photoelectric signal conversion between twisted pair and optical fiber;
● Support IEEE802.3X full duplex flow control and half duplex back pressure flow control, support to prevent broadcast storm function
● Support ultra-long frame transmission, and are fully compatible with forwarding of various extended protocol data frames
● Comply with IEE802.3u, IEE802.3z/ab, IEE802.1q, 1000 Base-SX/LX, IEE802.3ah, 10Base-TX, 100Base-TX, 100Base-FX and other standards
● Automatic recognition of MDI/MDI-X cross lines, supporting full duplex/half duplex mode
● With perfect feed, optical path, electrical port indicator, the working state is clear.
● Support centralized rack-mounted card installation, using 2U rack, a maximum of 16 pieces can be inserted into a single rack
● Fiber mode optional multi-mode/single mode, single fiber/double fiber; The optical fiber port can be SC/FC/ST.
● Optical transmission distance optional: multi-mode 2Km/5Km; Single-mode 20 km / 40 km / 60 km / 80 km / 100 km / 120 km;
● In line with carrier-grade operating standards, the average trouble-free working time is more than 50,000 hours.
① Optical port specifications
Wavelength: 1310nm/1550nm
Fiber output power: 0 dBm to -3 dBm/-5 dBm to -10 dBm
Number of fiber cores: 1, 2 optional
Optical port rate: 1.25Gbps
Receiving sensitivity: ≤-28dBm
No relay transmission distance: single mode: 0-100Km; Multi-mode: 0-2Km
Maximum optical power reserved: 15dbm/20dbm/25dbm/30dbm
Optical interface type: FC/SC/ST/LC Optional
② Ethernet interface specifications
Physical interface: Shield more than 5 RJ-45 seats
Electrical transmission distance: 120 meters
Interface rate: 10M/100/1000M Adaptive, full duplex/half duplex
Interface standards: IEEE802.310Base-T, IEEE802.3u 100Base-TX, IEEE802.3z 1000Base-TX
Flow control: IEE802.3X full duplex flow control and half duplex flow control
Interface sequence: adaptive MDI/MDIX direct connection and cross-connection mode
③ Working environment
Operating temperature: -40℃ ~ +80℃
Relative humidity: 5 ~ 95% no condensation
④ Appearance size, power supply mode and power dissipation
Dimensions: 94mm x 71mm x 26mm (external power supply); 160mm x 129mm x 33mm(internal power supply)
Heat dissipation mode: natural cooling, no fan
Power supply: AC 110-265V
Maximum power consumption: 3W
