- DVOP-IN-A/B-OTM-EG1-OG1 Gigabit 1 optical 1 electric mini micro fiber transceiver
- The DVOP-IN-A/B-OTM-EG1-OG1 optical transceiver is a modular transceiver for various embedded applications to realize the optical fiber transmission of the original device in one step. Using imported chips and new high-quality optical modules, stable performance and excellent quality. The product has a 100 megabit optical port and a 10/100/1000M adaptive electrical port optical transceiver, which absorbs the advantages of similar products at home and abroad, and the product is more flexible and practical. DVOP-IN-A/B-OTM-EG1-OG1 series transceivers are designed for high demand and high reliability engineering applications, using imported chips and new high-quality optical modules, stable performance and excellent quality. It is suitable for telecom, radio and television, broadband network and other network environments that need to improve optical fiber data traffic and high performance and high reliability. DVOP-IN-A/B-OTM-EG1-OG1 complies with IEE802.3, IEEE802.3u, 1000Base-TX/FX, supports full-duplex IEEE802.3x, IEEE802.3z flow control and half-duplex flow control standards, and supports ultra-long frame transmission. It is fully compatible with all kinds of extended protocol data frames, automatically identifies MDI/MDI-X cross lines, and supports full duplex/half duplex mode. Supports centralized management of rack-card applications, optional network management, real-time monitoring of device running status and parameter performance configuration.

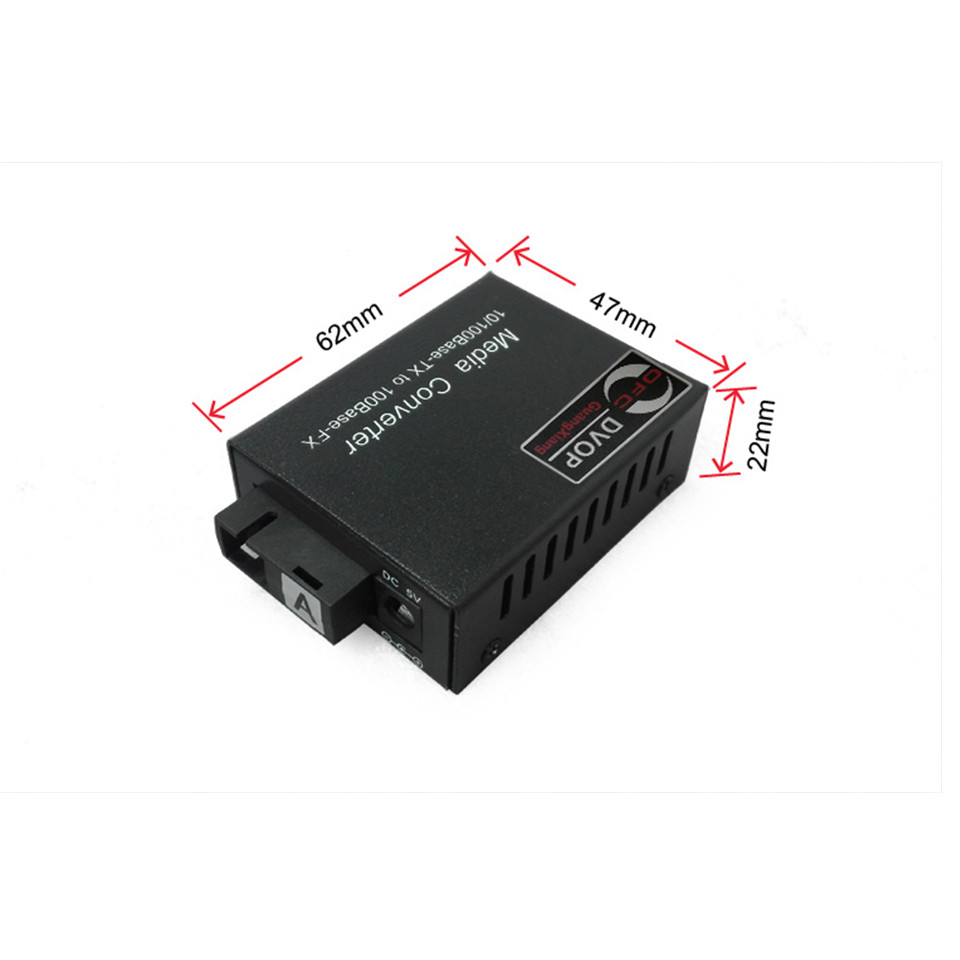

● Ultra-small gigabit transceiver, built-in only 3mm diameter fixed hole can be embedded;
● Standard 5VDC on-board power supply, and can choose a variety of power supply modes such as 12VDC on board or POE
● Power supply adopts crimping terminal, no need to weld wire; The Ethernet port uses a standard RJ45 socket and supports cable access mode
● Various installation methods such as rack type and independent type can be selected at the back end
● 1 10/100/1000M adaptive electrical port and 1 Gigabit optical port to realize photoelectric signal conversion between an Ethernet electrical interface and an optical interface
● Support IEEE802.3X full duplex flow control and half duplex back pressure flow control, support to prevent broadcast storm function
● Support ultra-long frame transmission, and are fully compatible with forwarding of various extended protocol data frames
● Comply with IEE802.3u, IEE802.3z/ab, IEE802.1q, 1000 Base-SX/LX, IEE802.3ah, 10Base-TX, 100Base-TX, 100Base-FX and other standards
● Automatic recognition of MDI/MDI-X cross lines, supporting full duplex/half duplex mode

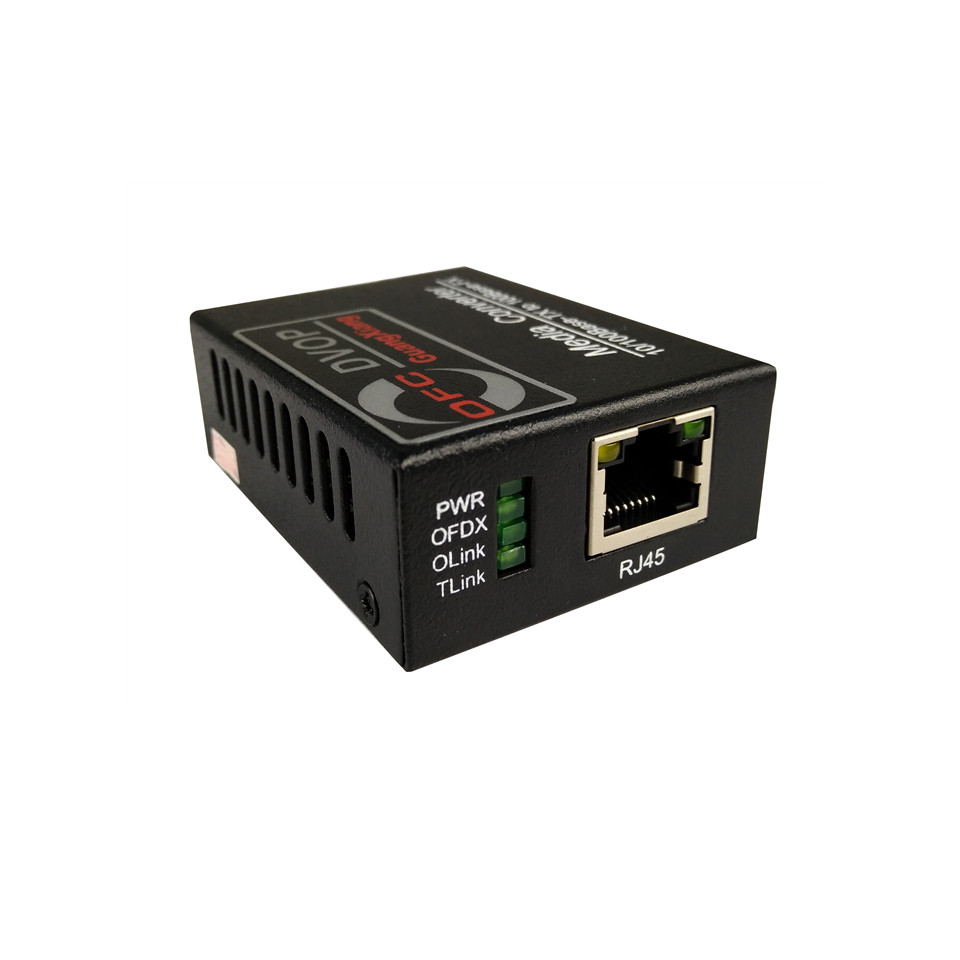

● With perfect feed, optical path, electrical port indicator, the working state is clear.
● Support link failure pass function.
● Support centralized rack card installation, using 1U rack, a single rack can insert up to 16 pieces
● Fiber mode optional multi-mode/single mode, single fiber/double fiber; The optical fiber port can be SC/FC/ST.
● Optical transmission distance optional: multi-mode 2Km/5Km; Single-mode 20 km / 40 km / 60 km / 80 km / 100 km / 120 km;
● In line with carrier-grade operating standards, the average trouble-free working time is more than 50,000 hours.
● 15.4KV lightning protection (external power supply, optional)
① Optical port specifications
Wavelength: 1310nm/1550nm
Fiber output power: 0dBm to -3dBm/-5dBm to -10dBm/-10 to -16dBm
Number of fiber cores: 1, 2 optional
Optical port rate: 1.25Gbps
Receiving sensitivity: ≤-31dBm
No relay transmission distance: single mode: 0-80Km; Multi-mode: 0-2Km
Maximum optical power reserved: 15dbm/20dbm/25dbm/30dbm
Optical interface type: FC/SC/ST Optional
② Ethernet interface specifications
Physical interface: Shield more than 5 RJ-45 seats
Electrical transmission distance: 100 meters
Interface rate: 10M/100/1000M Adaptive, full duplex/half duplex
Interface standards: IEEE802.310Base-T, IEEE802.3u 100Base-TX, IEEE802.3u 100Base-TX
Flow control: IEE802.3X full duplex flow control and half duplex flow control
Interface sequence: adaptive MDI/MDIX direct connection and cross-connection mode
③ Working environment
Operating temperature: -20℃ ~ +70℃
Relative humidity: 5 ~ 95% no condensation
