- DVOP-IN-OTM-EM1-LFP 100 Megabit 1 Optical 1 Electric Mini Fiber transceiver (with LFP)

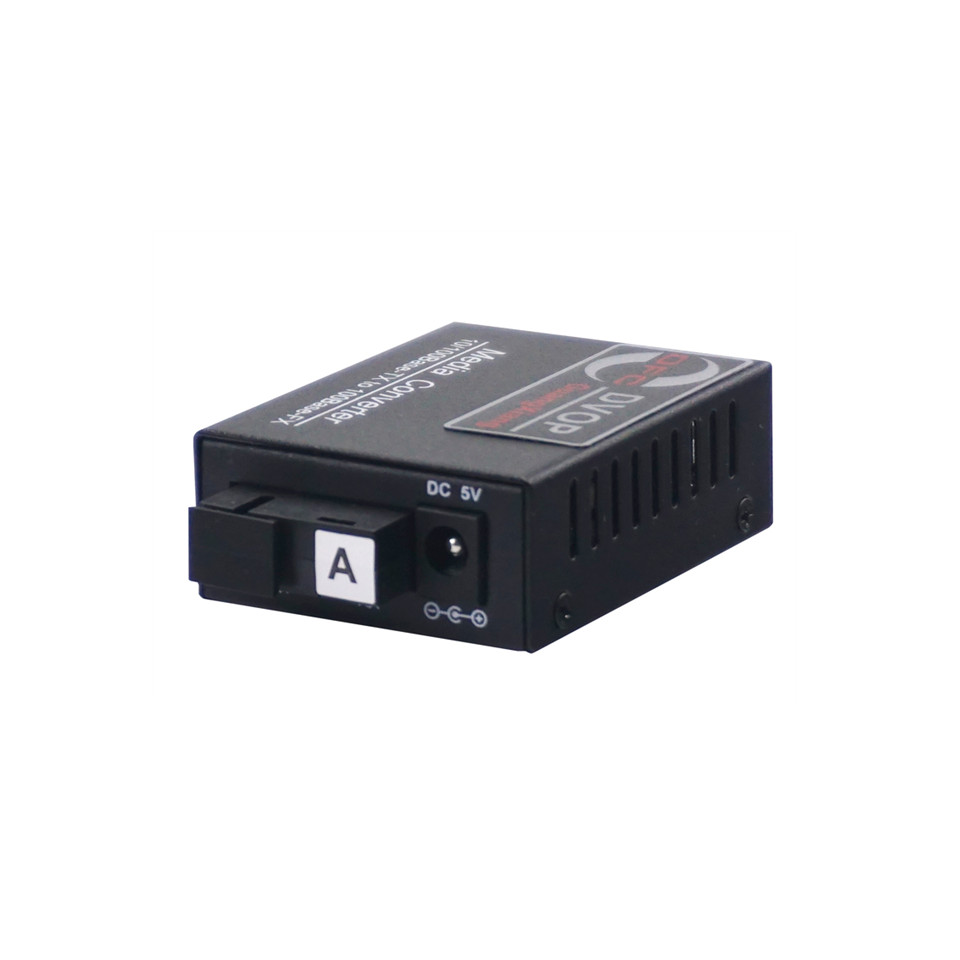

DVOP-IN-OTM-EM1-LFP embedded optical transceiver is a modular transceiver for various embedded applications to realize the optical fiber transmission of the original device in one step. Using imported chips and new high-quality optical modules, stable performance and excellent quality. The product has a 100 megabit optical port and a 10/100M adaptive electrical port optical transceiver, which absorbs the advantages of similar products at home and abroad, and the product is more flexible and practical. DVOP-IN-OTM-EM1-LFP series transceivers are designed for high demand and high reliability engineering applications, using imported chips and new high-quality optical modules, stable performance and excellent quality. It is suitable for telecom, radio and television, broadband network and other network environments that need to improve optical fiber data traffic and high performance and high reliability. DVOP-IN-OTM-EM1-LFP conforms to IEE802.3, IEEE802.3u, 100Base-TX/FX, supports full-duplex IEEE802.3x, IEEE802.3z flow control and half-duplex flow control standards, supports ultra-long frame transmission, and is fully compatible with forwarding of various extended protocol data frames. Automatically identifies MDI/MDI-X crossover lines and supports full duplex/half duplex mode. Supports centralized management of rack-card applications, optional network management, real-time monitoring of device running status and parameter performance configuration.
● Ultra-small 100 Mbit transceiver,
built-in only 3mm diameter fixed hole can be embedded;
● Standard 5VDC on-board power supply, and
can choose a variety of power supply modes such as 12VDC on board or POE
● Power supply adopts crimping terminal, no
need to weld wire; The Ethernet port uses a standard RJ45 socket and supports
cable access mode
● 1 10/100M adaptive electrical port and 1
optical port to realize convergence and optical signal conversion between an
Ethernet electrical interface and an optical interface;
● Support IEEE802.3X full duplex flow
control and half duplex back pressure flow control, support to prevent
broadcast storm function
● Support ultra-long frame transmission,
and are fully compatible with forwarding of various extended protocol data
frames

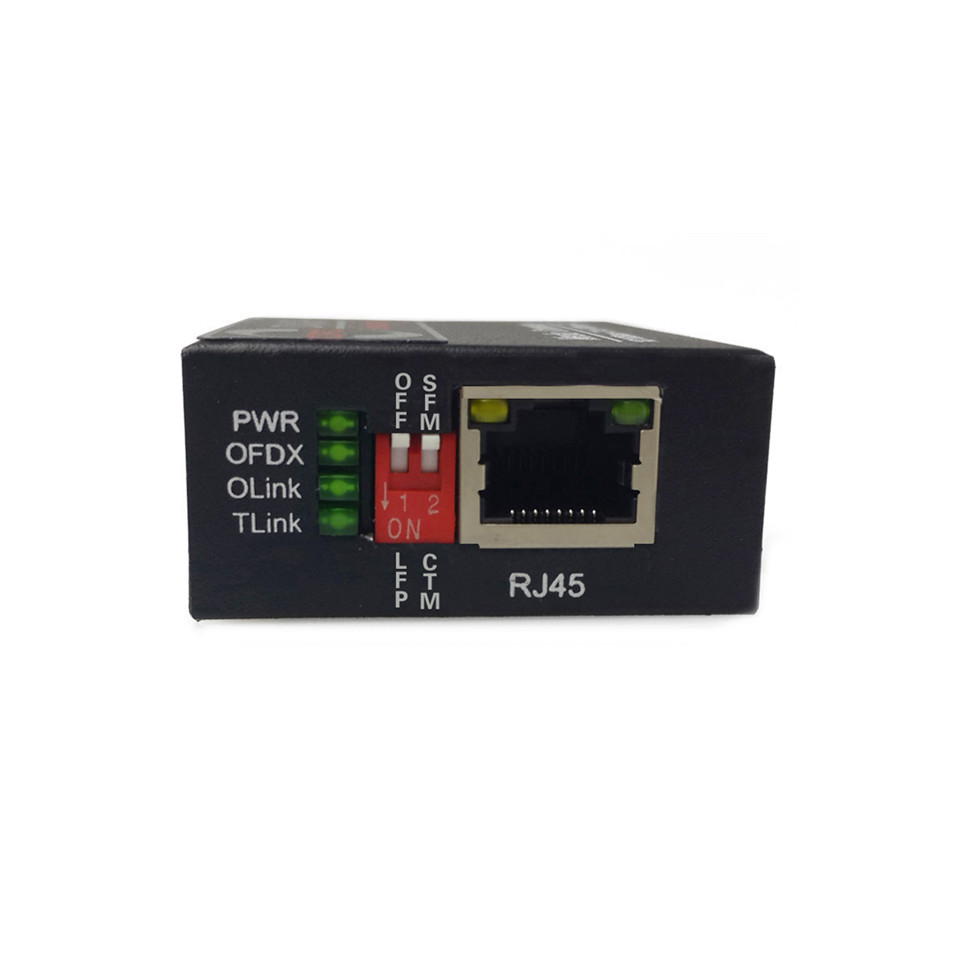

● With LFP function, manage the working
status of remote network port through dip switch
● Comply with IEE802.3u, IEE802.3z/ab,
IEE802.1q, 1000 Base-SX/LX, IEE802.3ah, 10Base-TX, 100Base-TX, 100Base-FX and
other standards
● Automatic recognition of MDI/MDI-X cross
lines, supporting full duplex/half duplex mode
● With perfect feed, optical path,
electrical port indicator, the working state is clear.
● 1600 byte packet management. It also
receives 9k bytes.
● Support link failure pass function.
● Support remote fault function.
● Built-in watchdog timer detects internal
switch errors.
● Support centralized rack card
installation, using 1U rack, a single rack can insert up to 16 pieces
● Fiber mode optional multi-mode/single
mode, single fiber/double fiber; The optical fiber port can be SC/FC/ST.
● Optical transmission distance optional:
multi-mode 2Km/5Km; Single-mode 20 km / 40 km / 60 km / 80 km / 100 km / 120
km;
● In line with carrier-grade operating
standards, the average trouble-free working time is more than 50,000 hours.
● 15.4KV lightning protection (external
power supply, optional)
① Optical port specifications
Wavelength: 1310nm/1550nm
Fiber output power: 0dBm to -3dBm/-5dBm to
-10dBm/-10 to -16dBm
Number of fiber cores: 1, 2 optional
Optical port speed: 155Mbpas
Receiving sensitivity: ≤-31dBm
No relay transmission distance: single
mode: 0-80Km; Multi-mode: 0-2Km
Maximum optical power reserved:
15dbm/20dbm/25dbm/30dbm
Optical interface type: FC/SC/ST Optional
② Ethernet interface specifications
Physical interface: Shield more than 5
RJ-45 seats
Electrical transmission distance: 100
meters
Interface speed: 10M/100M adaptive, full
duplex/half duplex
Interface standards: IEEE802.310Base-T,
IEEE802.3u 100Base-TX
Flow control: IEE802.3X full duplex flow
control and half duplex flow control
Interface sequence: adaptive MDI/MDIX
direct connection and cross-connection mode
③ Working environment
Operating temperature: -20℃ ~ +70℃
Relative humidity: 5 ~ 95% no condensation
④ Appearance size, power supply mode and
power dissipation
Size: 70mm x 45mm x 23mm (external power
supply)
Heat dissipation mode: natural cooling, no
fan
Power supply: DC 5V, DC 12V (optional)
Maximum power consumption: 2.5W
Weight: 130g
