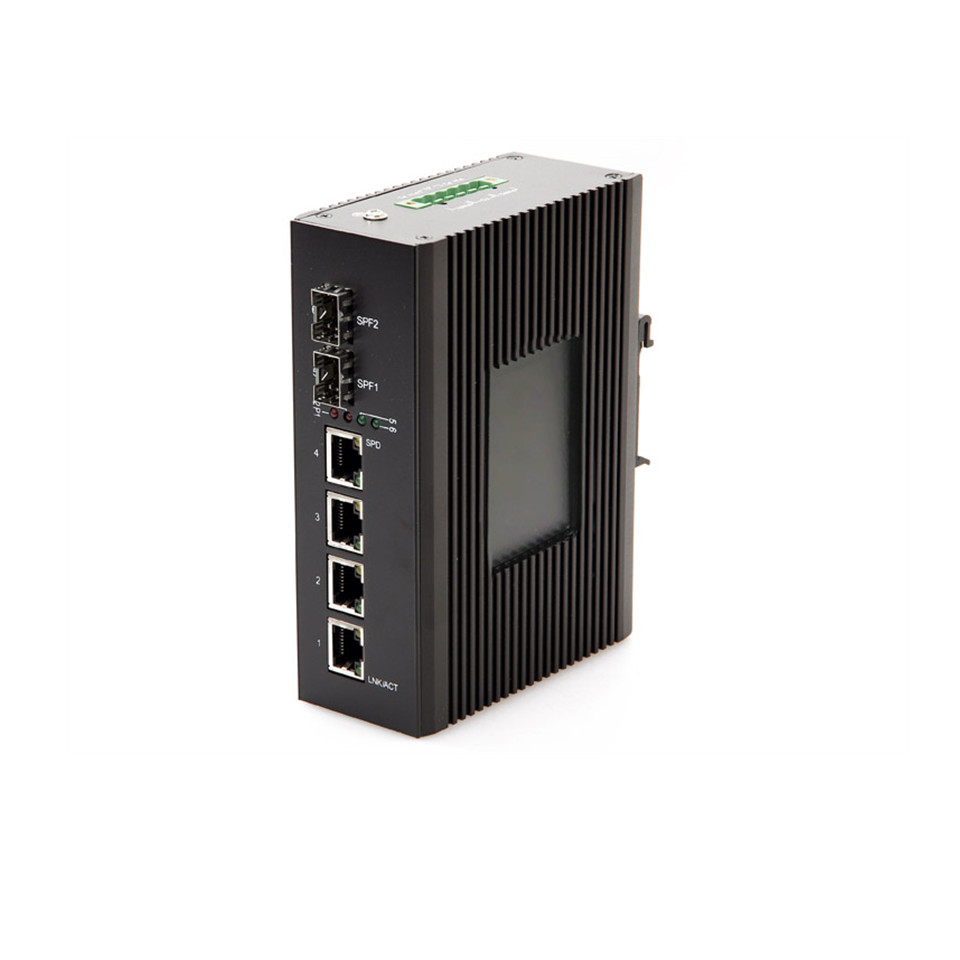

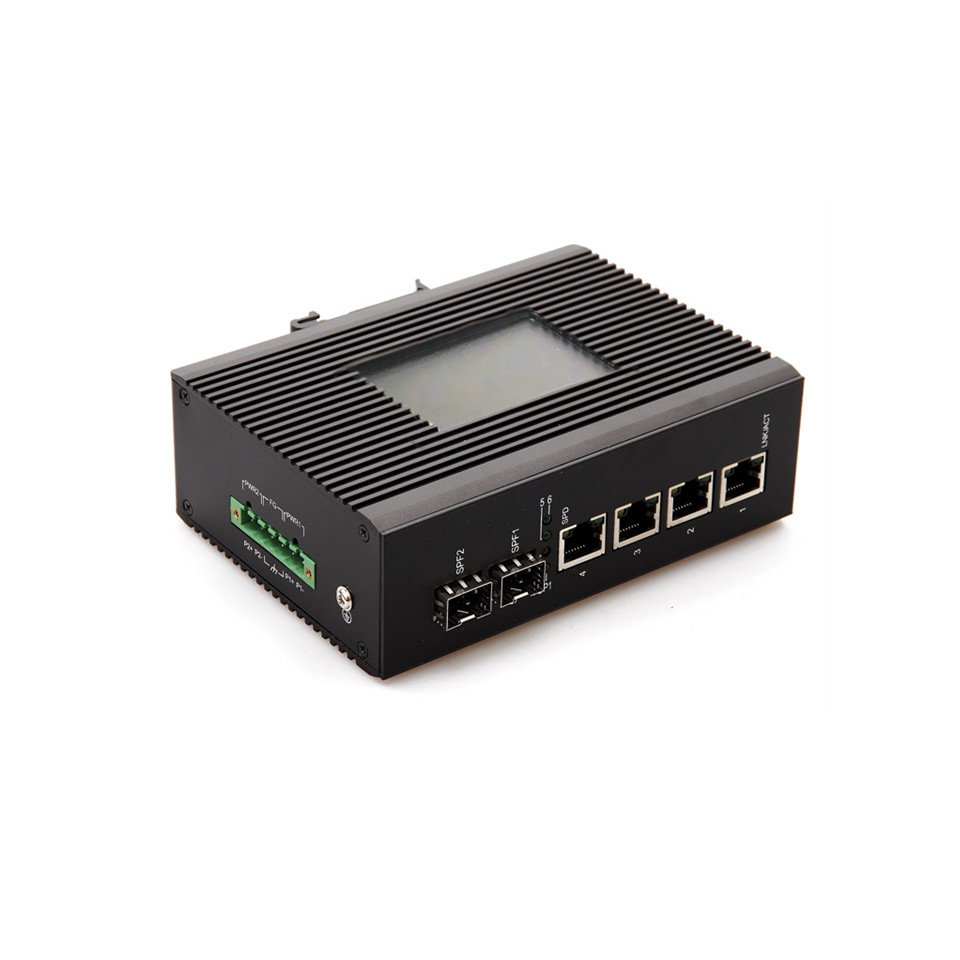

- DVOP-IN-I-EM4-OG2-SD Industrial card rail Gigabit 2 optical 4 switch can support POE
DVOP-IN-I-EM4-OG2-SD is a DIN standard card rail industrial Ethernet Fibre Channel switch with full intellectual property rights of Shenzhen Guangxiang, including 4 10/100M adaptive electrical ports, 2 1000M optical ports, electrical ports support POE and do not support POE and many other models. Can meet the star, chain, ring, T and other network application environment, the equipment supports 9V~56V extremely wide power supply range, without customization can meet the 12V/24V/48V and other power supply environment, the power supply has redundant anti-reverse connection; All interfaces adopt advanced bridge self-healed multi-level lightning protection design, ESD up to 8KV in line with EN61000-4-2 standards, 4KV lightning protection in line with EN61000-4-5 standards, industrial design, the use of imported industrial chips and devices, can be in -45℃~85 ℃ extremely wide temperature long-term stable operation, It is not affected by environmental interference, high transmission quality, long-term stable work, installation and maintenance are simple, no need to debug and other characteristics, electromagnetic compatibility meets the industrial level four standards.
● Wide operating temperature range of -40℃ ~85 ℃, suitable for industrial applications under harsh temperature conditions.
● All network ports and power ports adopt advanced bridge self-healing multi-level lightning protection design, in line with EN61000-4-2~EN61000-4-6 series international protection standards.

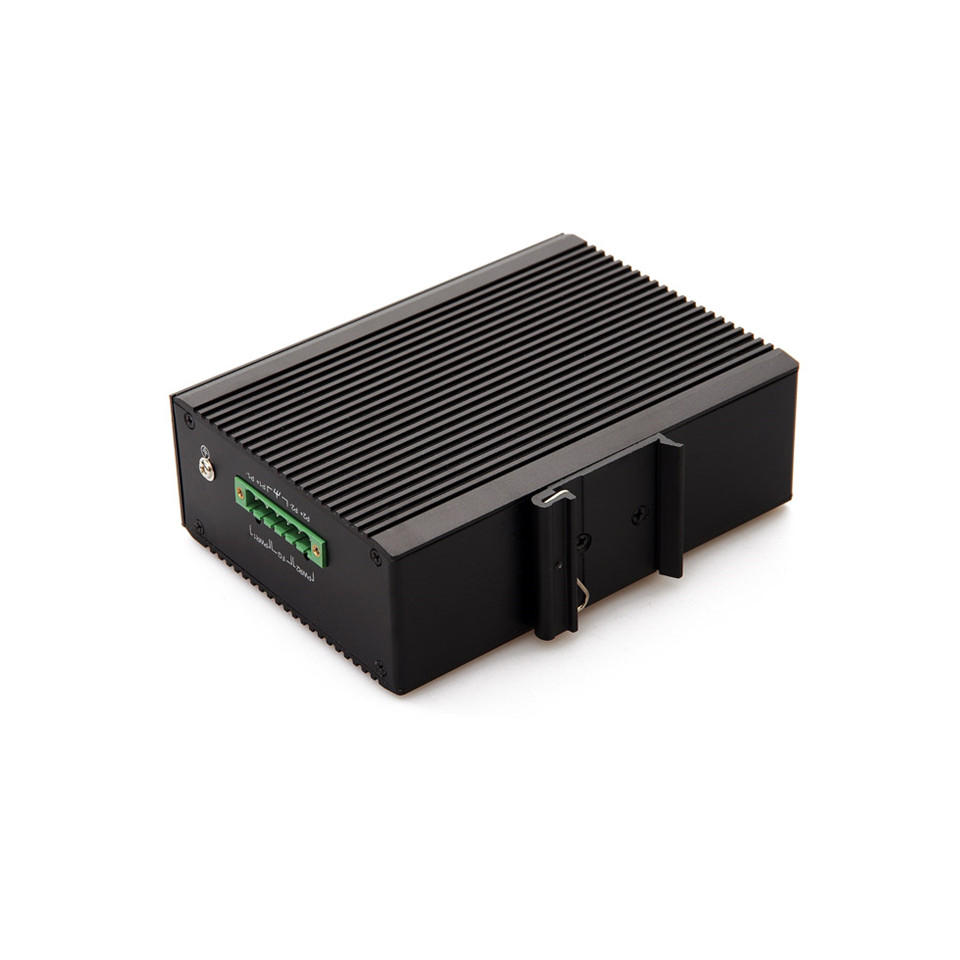

● DIN clamp rail mounted, with a rugged, high-strength aluminum housing of up to 5mm thickness, meeting the IP40 protection level.
● Electromagnetic compatibility in line with industrial level 4 standards, suitable for a variety of electromagnetic environment harsh occasions.
● Gold PCB board, with strong oxidation resistance, strong flow capacity, high long-term stability, suitable for harsh environment.
● Dual power supply 1+1 hot backup, power interface support redundant reverse connection.
● All ports support non-blocking, full-line speed forwarding, providing strong data processing capabilities.
● With 1+1 dual backup power supply mode, especially suitable for monitoring environment that can not be powered off.
● With over current protection, over voltage protection, PD power classification adjustment function.
● Extremely wide power supply range, support 9V~56V power supply, no need to customize to meet the 12V/24V/48V and other power supply environment.
● Standard: IEEE802.3, IEEE802.3U, IEEE802.3X, IEEE802.3Z
● Support priority queue, provide quality of service assurance QoS.
● Support IEEE802.3x full duplex flow control/half duplex back pressure flow control.
● Support IEEE802.1Q VLAN Settings, support traffic control, effectively suppress broadcast storm.
● Electrical port adaptive 10M/100M, electrical port with automatic MDI/MDIX recognition and flip, adaptive full duplex/half duplex function
● Full industrial design, using imported industrial chips and devices.
|
Optical index |
Wavelength: |
Single mode :1310/1550nm; DFB:1260~1610nm |
|
Fiber output power: |
0 dBm ~ -3 dBm/-5 dBm ~ -10 dBm |
|
|
Reception sensitivity: |
≤-28dBm |
|
|
Single wavelength bandwidth: |
1.25 Gbps |
|
|
Transmission distance: |
Single mode: 0-80km |
|
|
Maximum optical power reservation: |
15dbm/20dbm/25dbm/30dbm |
|
|
Fiber optic interface |
Standard SC, FC/ST optional |
|
|
Network Port Specifications |
Physical interface: |
Standard RJ45 |
|
Interface rate: |
10/100M adaptive, full duplex/half duplex |
|
|
Network media: |
Category 5 and above unshielded twisted pair cables |
|
|
Forwarding method: |
Storage forwarding, all ports support line speed forwarding |
|
|
Network protocol: |
IEEE802.3, IEEE802.3x Flow Control, IEEE 802.3z, IEEE 802.3u, IEEE 802.3AB, IEEE802.3x, IEEE 802.1D-2004 STP, IEEE 802.1w Rap d STP, IEEE 802.1Q VLAN Tag, IEEE 802.1p CoS, IEEE 802.1X Authentication, IEEE 802.3ad link aggregation |
|
|
Flow Control: |
IEE802.3X/IEE802.3Z Full duplex flow control and half duplex flow control |
|
|
Line sequence: |
Adaptive MDI/MDIX direct connection and cross-connection mode |
|
|
Management protocol: |
OPRing,IGMPv1/v2, GVRP, SNMPv1 /v2c/v3, DHCP Cl ent, TFTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, GVRP SSH, SNMP INform, LLDP, SNTP Server/Cl ent,PVLA |
|
|
Exchange parameters: |
Priority queue :4, Number of vlans :256, VLAN ID:1 ~ 4094, number of multicast groups :256, MAC table :8K, packet buffer :1Mb t, packet forwarding rate :5.3Mpps, switching delay :<5 μs |
|
|
Power supply/Power |
Power supply method: |
9VDC/12DC/24VDC/48VDC fully compatible |
|
Maximum power consumption: |
< 0.5 A @ 24 VDC |
|
|
Feed protection: |
Overload protection: Supported Reverse protection: Supported Redundancy protection: Supported |
|
|
Environmental parameters |
Operating temperature: |
-45℃ ~ +85℃ |
|
Storage temperature: |
-45℃ to +85℃ |
|
|
Relative humidity: |
5 to 95% condensation free |
|
|
Mechanical |
Enclosures: |
Naturally cooled, fanless, IP40 protection rating |
|
Installation method: |
Rail mount/wall mount |
|
|
Dimensions: |
143 x 104 x45mm (W x D x H) |
|
|
Weight: |
750g |
