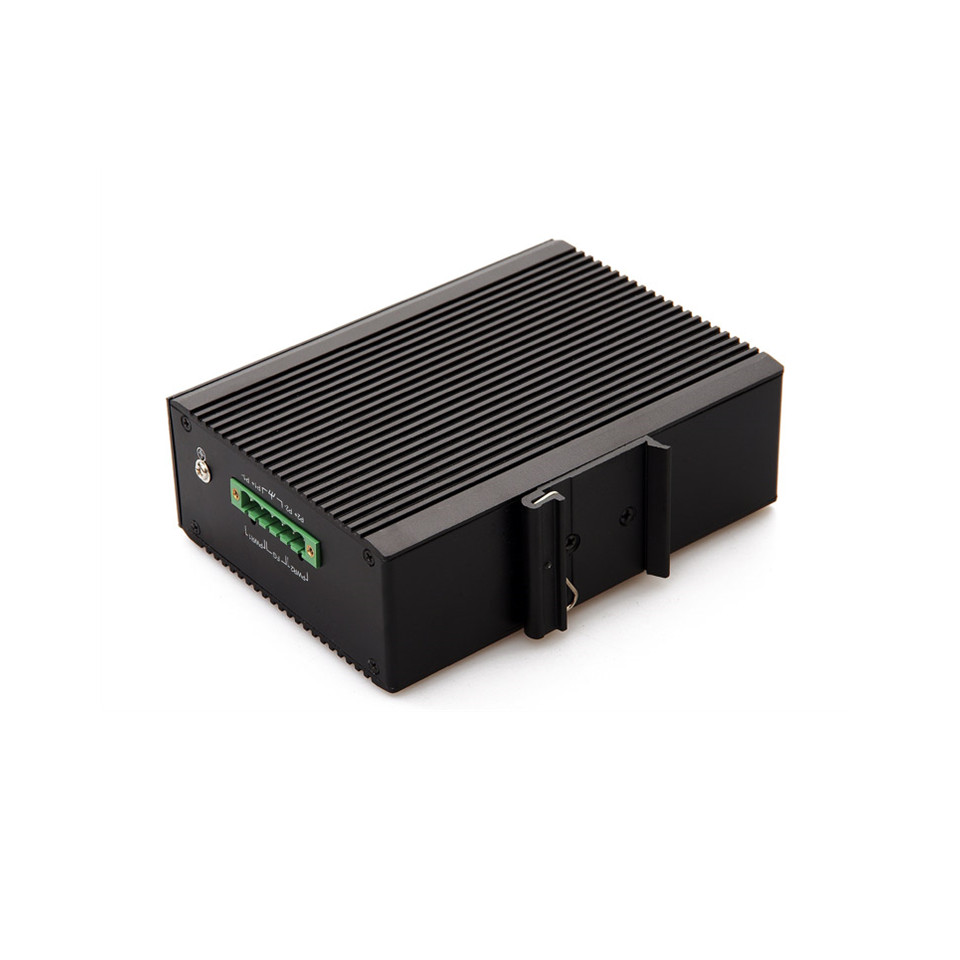

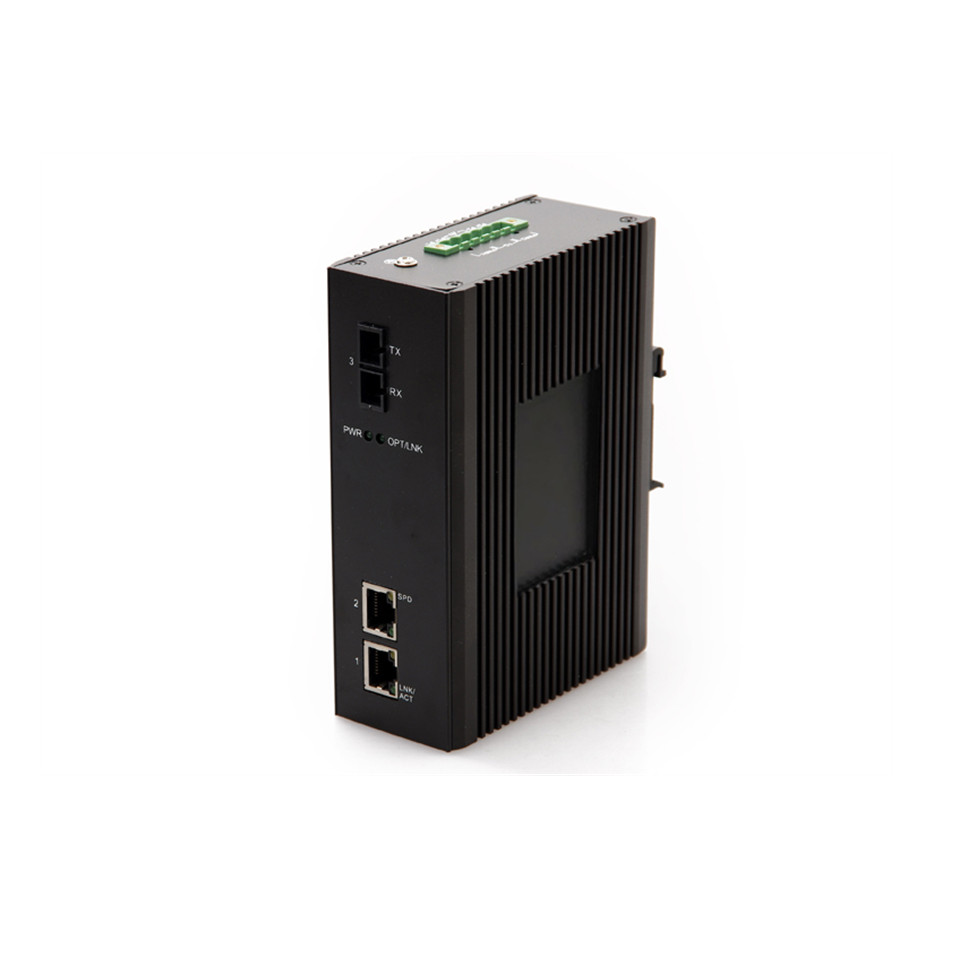

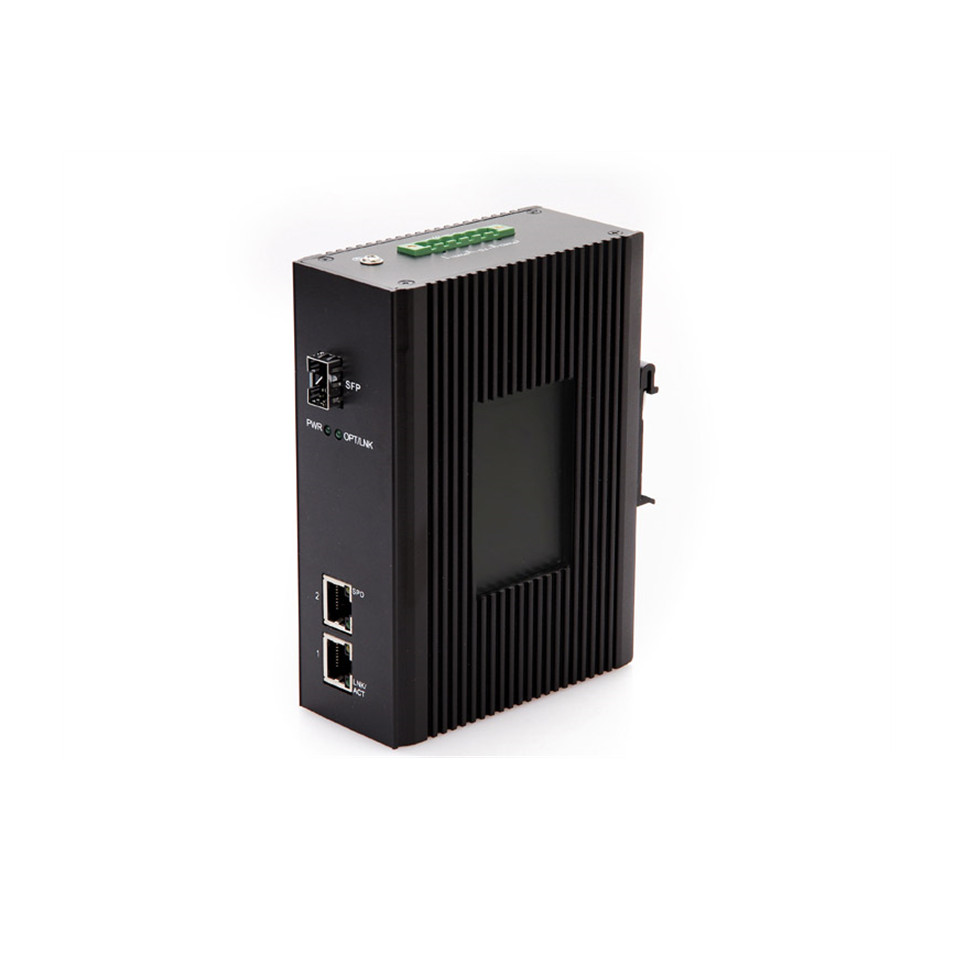

- DVOP-IN-I-EM2-OM1-SD Industrial card rail 100 Mbit/s 1 optical 2 power non-management switches support POE
DVOP-IN-I-EM2-OM1-SD is a DIN standard card rail industrial Ethernet Fibre Channel switch with full intellectual property rights of Shenzhen Guangxiang, including 2 10/100M adaptive down electrical ports, 1 100M optical ports, electrical ports support POE and do not support POE and many other models. Can meet the star, chain, ring, T and other network application environment, the equipment supports 9V~56V extremely wide power supply range, without customization can meet the 12V/24V/48V and other power supply environment, the power supply has redundant anti-reverse connection; All interfaces adopt advanced bridge self-healed multi-level lightning protection design, ESD up to 8KV in line with EN61000-4-2 standards, 4KV lightning protection in line with EN61000-4-5 standards, industrial design, the use of imported industrial chips and devices, can be in -45℃~85 ℃ extremely wide temperature long-term stable operation, It is not affected by environmental interference, high transmission quality, long-term stable work, installation and maintenance are simple, no need to debug and other characteristics, electromagnetic compatibility meets the industrial level four standards.
|
Optical index |
Wavelength: |
Single mode :1310/1550nm; DFB:1260~1610nm |
|
Fiber output power: |
0 dBm ~ -3 dBm/-5 dBm ~ -10 dBm |
|
|
Reception sensitivity: |
≤-28dBm |
|
|
Single wavelength bandwidth: |
155Mbps |
|
|
Transmission distance: |
Single mode: 0-80km |
|
|
Maximum optical power reservation: |
15dbm/20dbm/25dbm/30dbm |
|
|
Fiber optic interface |
Standard SC, FC/ST optional |
|
|
Network Port Specifications |
Physical interface: |
Standard RJ45 |
|
Interface rate: |
10/100M adaptive, full duplex/half duplex |
|
|
Network media: |
Category 5 and above unshielded twisted pair cables |
|
|
Forwarding method: |
Storage forwarding, all ports support line speed forwarding |
|
|
Network protocol: |
IEEE802.3, IEEE802.3x Flow Control, IEEE 802.3z, IEEE 802.3u, IEEE 802.3AB, IEEE802.3x, IEEE 802.1D-2004 STP, IEEE 802.1w Rap d STP, IEEE 802.1Q VLAN Tag, IEEE 802.1p CoS, IEEE 802.1X Authentication, IEEE 802.3ad link aggregation |
|
|
Flow Control: |
IEE802.3X/IEE802.3Z Full duplex flow control and half duplex flow control |
|
|
Line sequence: |
Adaptive MDI/MDIX direct connection and cross-connection mode |
|
|
Management protocol: |
OPRing,IGMPv1/v2, GVRP, SNMPv1 /v2c/v3, DHCP Cl ent, TFTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, GVRP SSH, SNMP INform, LLDP, SNTP Server/Cl ent,PVLA |
|
|
Exchange parameters: |
Priority queue :4, Number of vlans :256, VLAN ID:1 ~ 4094, number of multicast groups :256, MAC table :8K, packet buffer :1Mb t, packet forwarding rate :5.3Mpps, switching delay :<5 μs |
|
|
Power supply/Power |
Power supply method: |
9VDC/12DC/24VDC/48VDC fully compatible |
|
Maximum power consumption: |
< 0.5 A @ 24 VDC |
|
|
Feed protection: |
Overload protection: Supported Reverse protection: Supported Redundancy protection: Supported |
|
|
Environmental parameters |
Operating temperature: |
-45℃ ~ +85℃ |
|
Storage temperature: |
-45℃ to +85℃ |
|
|
Relative humidity: |
5 to 95% condensation free |
|
|
Mechanical |
Enclosures: |
Naturally cooled, fanless, IP40 protection rating |
|
Installation method: |
Rail mount/wall mount |
|
|
Dimensions: |
143 x 104 x45mm (W x D x H) |
|
|
Weight: |
750g |
