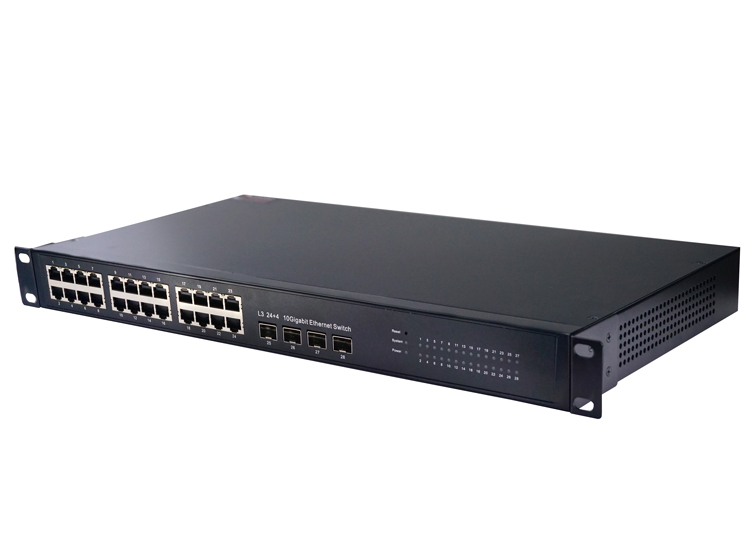

- DVOP-IN-IM-EG24-OQ4 Rack-mounted 40 gigabit optical 24 Gigabit industrial switch
DVOP-IN-IM-EG24-OQ4 switch uses a new generation of chip developed high-performance working group, industrial grade ten Gigabit switch. This series of switches has 24 gigabit optical ports and 4 10-gigabit optical ports, and supports various connections of 10/100/1000/10000M. The network can be flexibly configured as required.
The DVOP-IN-IM-EG24-OQ4 switch can be connected to all Ethernet and fast Ethernet devices, and is compatible with existing devices. DVOP-IN-IM-EG24-OQ4 switches provide full gigabit, high-bandwidth, high-performance connectivity between workgroups or within an enterprise, while increasing the capacity of server farms and giving users faster access to the entire network. This switch can alleviate the network transmission bottleneck caused by insufficient network bandwidth and rapid growth of users, and less investment, simple management.
|
Basic characteristic |
|
|
Fixed ports |
24 10/100M adaptive electrical ports, 2 independent 1000M optical ports |
|
Processor |
ARM® Cortex™-A9 |
|
Flash Memory Capacity |
8MB |
|
Memory capacity |
256M |
|
MAC address table |
16K |
|
Queue buffer |
1.5MB |
|
Software Specifications |
|
|
VLAN |
Port based VLAN |
|
Address table |
Static MAC address table |
|
Storm Control |
Broadcast Suppression |
|
Flow Control |
Half duplex based back pressure type
control |
|
Port mirroring |
Port mirroring is supported |
|
Port Management |
General Settings |
|
IP Services |
Ping Detection |
|
Spanning Tree |
MSTP(802.1s), STP, RSTP |
|
System Administration |
Webui in |
|
Remote upgrade |
Version upgrade through the web Version upgrad is supported locally |
|
Appearance Dimensions |
440mm × 230mm × 44mm |
|
Power Supply characteristics |
Ac 110-240V adaptive, 47-63Hz, 1A/230V, |
|
Power |
60W |
|
Indicator light |
Power indicator, system indicator, connection/transceiver indicator |
|
Ambient temperature/humidity |
Run at -20-70 ° C, store at -40-85 ° C, 0-90% condensation free |
