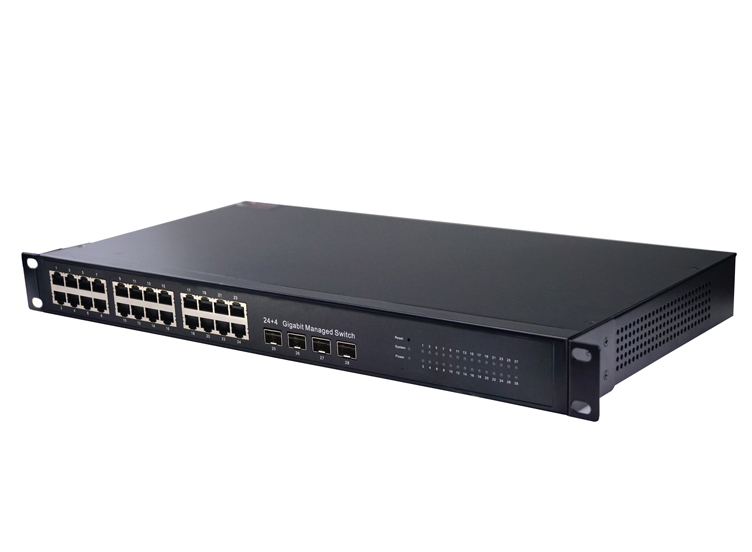

- DVOP-IN-IM-EG24-OG4 Rack-mounted full gigabit 4 optical 24 power industrial switch
DVOP-IN-IM-EG24-OG4 is a network switch with 4 gigabit optical ports and 24 gigabit adaptive electrical ports, which absorbs the advantages of similar products at home and abroad, and the product is more flexible and practical. Using imported chips and new high-quality optical modules, stable performance and excellent quality. It is suitable for telecom, radio and television, broadband network and other network environments that need to improve optical fiber data traffic and high performance and high reliability. Comply with IEE802.3, IEEE802.3u, 100Base-TX/FX, support full-duplex IEEE802.3x, IEEE802.3z flow control and half-duplex flow control standards, support ultra-long frame transmission, fully compatible with all kinds of extended protocol data frame forwarding, automatic identification of MDI/MDI-X cross line, Supports full duplex or half duplex mode. Supports centralized management of rack-and-card applications. Network management or non-network management is available to monitor device running status in real time and configure parameter performance.
● 24 gigabit adaptive electrical ports and 4 Gigabit optical ports to achieve convergence and optical signal conversion between multiple Ethernet electrical interfaces and optical interfaces.
● Maximum switching capacity 56Gbps, non-blocking design, support full speed forwarding.
● Gigabit optical fiber supports long-distance transmission up to 100 kilometers, and can be directly connected to the metropolitan backbone network.
● Comply with IEE802.3u, IEE802.3z/ab, IEE802.1q, IEE802.3ah, 10Base-TX, 100Base-TX, 100Base-FX and other standards.
● Provide 802.1x and other ways of user authentication.
● Powerful ACL, hardware support L2-L7 layer data filtering.
● Port-MAC-IP multi-binding.
● Support unique ARP intrusion detection function, can effectively prevent hacker ARP spoofing attacks.
● Automatic identification of through cables and cross cables.
● Adopt cluster technology, support multiple devices stack, use a unified IP address for centralized management, save address resources.
● It can be managed through control port, Telnet, Web, SNMP and other ways.
● Support Broad Drictor, HP Open View, Cisco Works 2000 and other general network management protocols.
● Automatically detect and suppress broadcast storm, support IGMP message detection, effectively limit the overflow of broadcast messages.
● Support full duplex mode and half duplex mode flow control.
● Support Ethernet interface with a minimum step speed limit of 64K.
● Support IP multicast and QoS.
● Fiber optic connectors: multi-mode and single-mode SC,ST,FC or LC connectors are optional.
● The average trouble-free working time ismore than 50,000 hours.
● 15.4KV lightning protection (external power supply, optional).
|
Basic characteristic |
|
|
Fixed ports |
24 10/100M adaptive electrical ports, 2 independent 1000M optical ports |
|
Processor |
ARM® Cortex™-A9 |
|
Flash Memory Capacity |
8MB |
|
Memory capacity |
256M |
|
MAC address table |
16K |
|
Queue buffer |
1.5 MB |
|
Software Specifications |
|
|
VLAN |
Port based VLAN |
|
Address table |
Static MAC address table |
|
Storm Control |
Broadcast Suppression |
|
Flow Control |
Half duplex based back pressure type
control |
|
Port mirroring |
Port mirroring is supported |
|
Port Management |
General Settings |
|
IP Services |
Ping Detection |
|
Spanning Tree |
MSTP(802.1s), STP, RSTP |
|
System Administration |
Webui in TELNET mode |
|
Remote upgrade |
Version upgrade through the web Version
upgrade |
|
Appearance Dimensions |
440mm × 230mm × 44mm |
|
Power Supply characteristics |
Ac 110-240V adaptive, 47-63Hz, 1A/230V, |
|
Power |
60W |
|
Indicator light |
Power indicator, system indicator, connection/transceiver indicator |
|
Ambient temperature/humidity |
Run at -20-70 ° C, store at -40-85 ° C, 0-90% condensation free |
