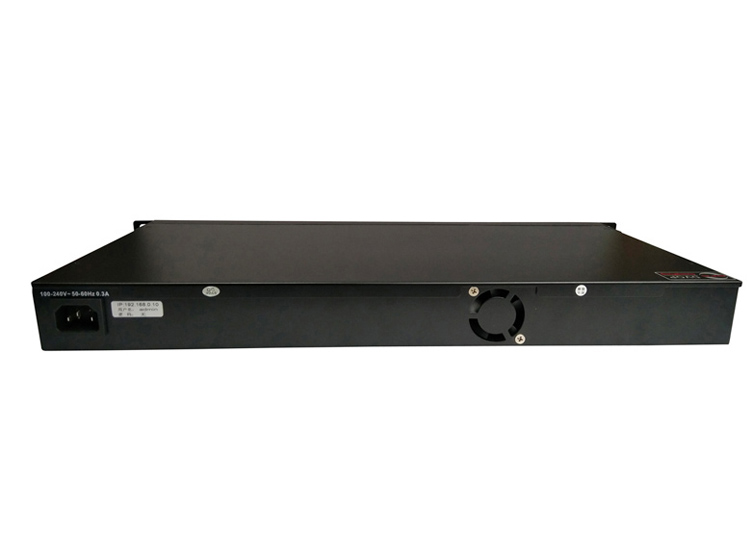

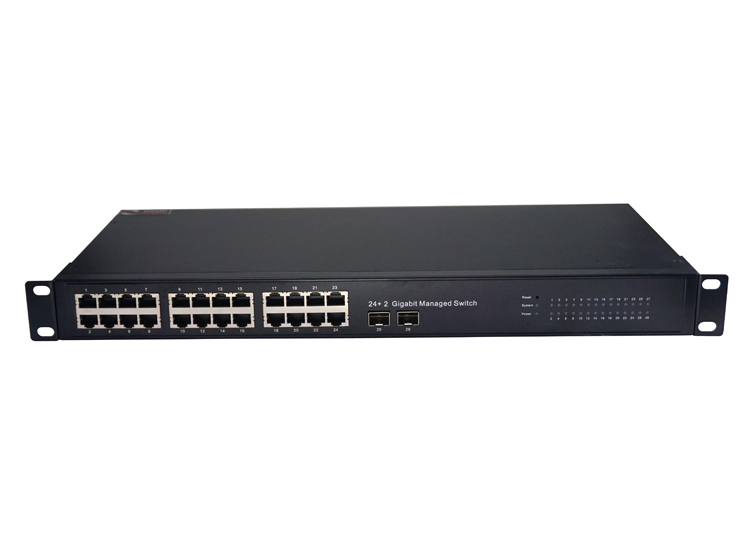

- DVOP-IN-IM-EM24-OG2 Rack-mounted gigabit 2 optical 24 power industrial switch
DVOP-IN-IM-EM24-OG2 is a Fibre Channel switch with two gigabit optical ports and 24 adaptive electrical ports, which absorbs the advantages of similar products at home and abroad, and is more flexible and practical. Using imported chips and new high-quality optical modules, stable performance and excellent quality. It is suitable for telecom, radio and television, broadband network and other network environments that need to improve optical fiber data traffic and high performance and high reliability. Comply with IEE802.3, IEEE802.3u, 100Base-TX/FX, support full-duplex IEEE802.3x, IEEE802.3z flow control and half-duplex flow control standards, support ultra-long frame transmission, fully compatible with all kinds of extended protocol data frame forwarding, automatic identification of MDI/MDI-X cross line, Supports full duplex or half duplex mode. Supports centralized management of rack-and-card applications. Network management or non-network management is available to monitor device running status in real time and configure parameter performance.
● 24 100 megabit adaptive electrical ports and 2 gigabit optical ports to achieve convergence and optical signal conversion between multiple Ethernet electrical interfaces and optical interfaces.
● Support IEEE802.3X full duplex flow control and half duplex back pressure flow control, support to prevent broadcast storm function.
● Support ultra-long frame transmission, fully compatible with all kinds of extended agreement data frames.
Comply with IEE802.3u, IEE802.3z/ab, IEE802.1q, IEE802.3ah, 10Base-TX, 100Base-TX, 100Base-FX, and other standards.
● Automatic recognition of MDI/MDI-X cross lines, supporting full duplex/half duplex mode.
● With perfect feed, optical path, electrical port indicator, the working state is clear.
● 1600 byte packet management. It also receives 9k bytes.
● Support link failure pass function.
● Support remote fault function.
● DIP switch Settings.
● Fiber optic connectors: multi-mode and single-mode SC,ST,FC or LC connectors are optional.
● Built-in watchdog timer detects internal switch errors.
● Support centralized rack-mounted card installation, using 2U rack, a maximum of 16 pieces can be inserted into a single rack.
● Fiber mode optional multi-mode/single mode, single fiber/double fiber; The optical fiber port can be SC/FC/ST.
● Optical transmission distance optional: multi-mode 2Km/5Km; Single-mode 20 km / 40 km / 60 km / 80 km / 100 km / 120 km.
● In line with carrier-grade operating standards, the average trouble-free working time is more than 50,000 hours.
● 15.4KV lightning protection (external power supply, optional).
|
Basic characteristic |
|
|
Fixed ports |
24 10/100M adaptive electrical ports, 2 independent 1000M optical ports |
|
Processor |
ARM® Cortex™-A9 |
|
Flash Memory Capacity |
8MB |
|
Memory capacity |
256M |
|
MAC address table |
16K |
|
Queue buffer |
1.5 MB |
|
Software Specifications |
|
|
VLAN |
Port based VLAN |
|
Address table |
Static MAC address table |
|
Storm Control |
Broadcast Suppression |
|
Flow Control |
Half duplex based back pressure type
control |
|
Port mirroring |
Port mirroring is supported |
|
Port Management |
General Settings |
|
IP Services |
Ping Detection |
|
Spanning Tree |
MSTP(802.1s), STP, RSTP |
|
System Administration |
Webui in |
|
Remote upgrade |
Version upgrade through the web Version
upgrade |
|
Appearance Dimensions |
440mm × 230mm × 44mm |
|
Power Supply characteristics |
Ac 110-240V adaptive, 47-63Hz, 1A/230V, |
|
Power |
60W |
|
Indicator light |
Power indicator, system indicator, connection/transceiver indicator |
|
Ambient temperature/humidity |
Run at -20-70 ° C, store at -40-85 ° C, 0-90% condensation free |
