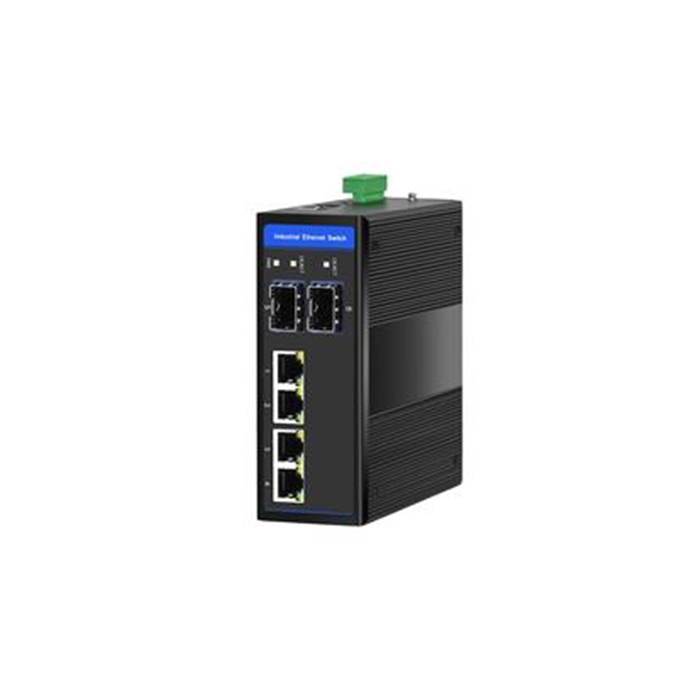

- DVOP-IN-IR-EG4-OG2-SD Industrial rail loop network self-healing full gigabit 2 optical 4 switchboard
DVOP-IN-IR-EG4-OG2-SD series is a DIN standard card rail industrial Ethernet Fibre Channel switch with full intellectual property rights of Shenzhen Guangxiang, including 4 10/100/1000M adaptive electrical ports, 2 1000M optical ports, electrical ports support POE and do not support POE and many other models. It has two categories: non-network management type and network management type, which can meet various network application environments such as star, chain, ring, and T-shape. Network management type supports SNMP, Web, Telnet, RS232 console and other network management modes. 1+1 Two hot spare power inputs and one relay alarm output. Suitable for industrial environments with harsh temperatures ranging from -40 ° C to 85 ° C, it supports DIN rail mounting and features a rugged, high-strength aluminum housing up to 5mm thick and meets IP40 protection, making it a plug and play, lightweight and highly trusted industrial Ethernet switch solution. The device supports an extremely wide power supply range of 9V~56V, and can meet various power supply environments such as 12V/24V/48V without customization. The power supply has redundant anti-reverse connection. All interfaces adopt advanced bridge self-healing multi-stage lightning protection design, ESD up to 8KV in line with EN61000-4-2 standards, 4KV in line with EN61000-4-5 and other standards.
|
Optical index |
Wavelength: |
Single mode :1310/1550nm; DFB:1260~1610nm |
|
Fiber output power: |
0 dBm ~ -3 dBm/-5 dBm ~ -10 dBm |
|
|
Reception sensitivity: |
≤-28dBm |
|
|
Single wavelength bandwidth: |
1.25 Gbps |
|
|
Transmission distance: |
Single mode: 0-80km |
|
|
Maximum optical power reservation: |
15dbm/20dbm/25dbm/30dbm |
|
|
Fiber optic interface |
Standard LC, SC/FC/ST optional |
|
|
Network Port Indicators |
Physical interface: |
Standard RJ45 |
|
Interface rate: |
10/100/1000M adaptive, full duplex/half duplex |
|
|
Network media: |
Category 5 and above unshielded twisted pair cables |
|
|
Forwarding method: |
Storage forwarding, all ports support line speed forwarding |
|
|
Network protocol: |
IEEE802.3, IEEE802.3x Flow Control,
IEEE 802.3z, IEEE 802.3u, IEEE 802.3AB, IEEE802.3x,
IEEE 802.1D-2004 STP, IEEE 802.1w Rap d STP, IEEE 802.1Q, VLAN Tag, IEEE
802.1p CoS
, IEEE 802.1X Authentication, IEEE 802.3ad link aggregation.
|
|
|
Flow Control: |
IEE802.3X/IEE802.3Z Full duplex flow control and half duplex flow control |
|
|
Line sequence: |
Adaptive MDI/MDIX direct connection and cross-connection mode |
|
|
Exchange parameters: |
Priority queue :4, Number of
vlans :256, VLAN ID:1 ~ 4094, number of multicast groups :256,
MAC table :8K
, packet buffer :1Mbt
|
|
|
Supply/power |
Power supply method: |
9VDC/12DC/24VDC/48VDC fully compatible |
|
Maximum power consumption: |
< 0.5 A @ 24 VDC |
|
|
Feed protection: |
Overload protection: Support
reverse protection
Reverse protection: Support
redundancy protection: supported
|
|
|
Environmental Parameters |
Operating temperature: |
-40℃ ~ +85℃ |
|
Storage temperature: |
-45℃ ~ +85℃ |
|
|
Relative humidity: |
5 to 95% condensation free |
|
|
Protection indicators |
Network port surge protection |
IEC 61000-4-5 Level 4 |
|
Fast pulse Group |
IEC 61000-4-4 Level 4 |
|
|
Antistatic interference |
IEC 61000-4-2 Level 4 |
|
|
Mechanical |
Enclosures: |
Naturally cooled, fanless, IP40 protection rating |
|
Installation method: |
Rail mount/wall mount |
|
|
Dimensions: |
130 x 90 x 50mm (W x D x H) (clamp
rail type)
150 x 95 x 45mm (W x D x H) (wall hanging type) (ears included)
|
|
|
Weight: |
750g |
