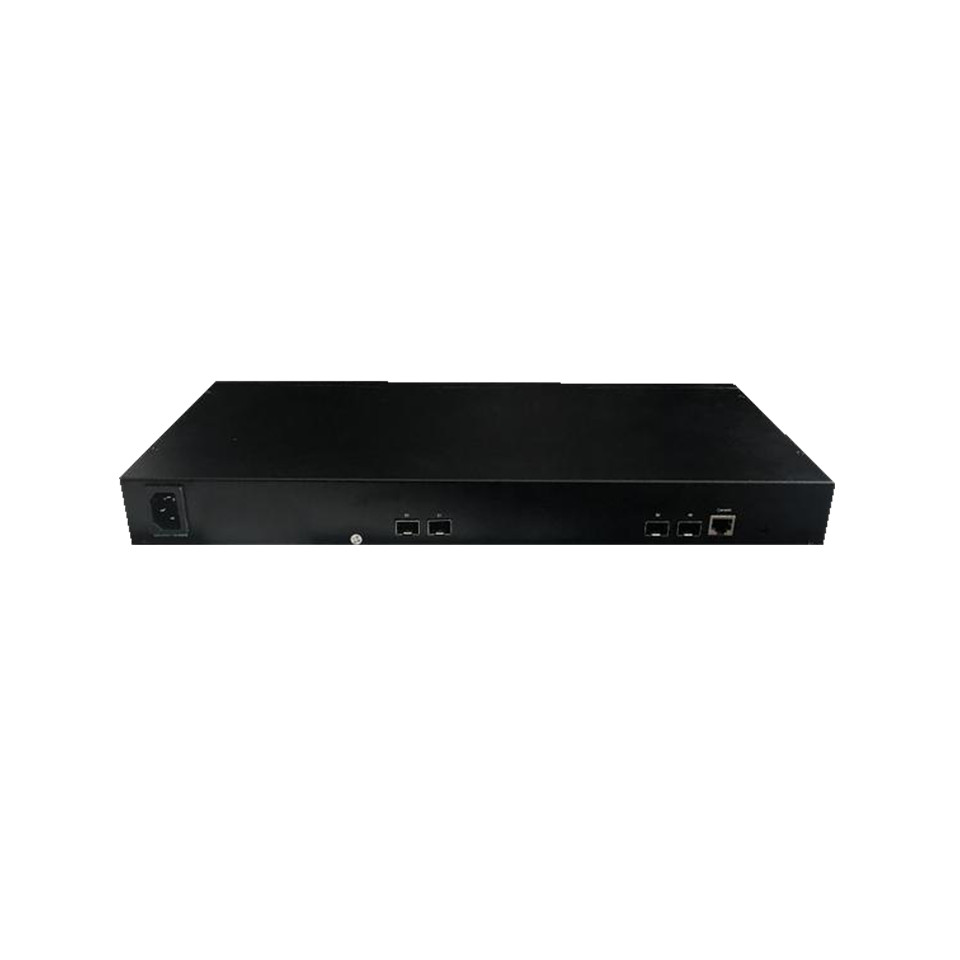

- DVOP-IN-IM3-EG48-OQ6 10 Gigabit 6 optical 48 gigabit power three-layer industrial switch
DVOP-IN-IM3-EG48-OQ6 is Shenzhen Guangxiang intelligent management three-layer Ethernet switch with complete intellectual property rights. The product is based on high-performance ASIC chip technology, adopts modular structure design, provides 48 10/100/1000M RJ45 electrical ports, 6 1G/10G SFP+ optical ports, One Console port provides sufficient bandwidth for aggregation and core data exchange. Provides high capacity exchange capability. Improved security control policy and CPU protect policy improve fault tolerance, ensure stable network operation and link load balancing; The device supports automatic DoS attack defense, SNMP, IEEE 802.1, spanning tree and fast spanning tree protocol, and link aggregation.
DVOP-IN-IM3-EG48-OQ6 supports a variety of network management methods, such as: SNMP, Web browser, Telnet and RS232 console management. It has rich network management functions, such as 802.1Q VLAN, 802.1p QoS, IGMP static multicast, port aggregation, port mirroring, port configuration, STP/RSTP/MSTP ring network protocols, FR-Ring, access control, remote monitoring, port statistics, network diagnosis, etc. All ports support non-blocking, full-line speed forwarding, providing you with strong data processing capabilities; Supports the line detection function to facilitate line troubleshooting, and has 32Kbps fine-grained port bandwidth control, which can accurately control the receiving and sending rates of each port according to different service requirements of different users, helping you allocate bandwidth resources reasonably and improve bandwidth utilization. Rich QoS control policies support priority modes based on port, 802.1p, IP TOS/DS, and TCP/UDP port numbers.
- With 598Gbps backplane bandwidth
- Hardware routing, line speed Layer 3 switch packet forwarding rate of 262Mpps
- Can be deployed in the MAN core and provides several last 1 km technologies
- Supports multi-level stacking
- Provides DOS, distributed denial of service, spoofing and virus defense
- Support IEEE802.1x, provide port-based user authentication, network shield technology, security control technology and policy control list
- Limit the maximum number of hosts connected to the port, and multi-bind the Ethernet interface to increase bandwidth and system redundancy
- Powerful ACL, support L2-L4 data filtering
- Support any combination of IP+MAC+PORT binding, illegal frame filtering, hierarchical user management and password protection, support SSH V2
- Policy control list, traffic regulation
- Can be managed through Web, SNMP and other ways
- Supports XModem protocol, and can upgrade software and BootRom through TFTP/ZMODEM
- Support SFP+, but also backward compatible with XFP
- Provides redundant power supply, fast failover and fast connection, greatly increasing system reliability
- Support VCT cable detection function, easy to quickly locate network fault points
- SNMP V1/V2/V3; RMON 1/2/3/9; Syslog; Supports WEB NMS and MIB-II
- Automatically detect and suppress broadcast storm, support IGMP message detection, effectively limit the overflow of broadcast messages
- Support full duplex mode and half duplex mode flow control
- Support 1 Mbit/s rate limit for Ethernet interfaces
- Advanced buffer management, support 802.1p protocol, 8 send queues per port map 802.1p 8 priorities
- Support IP multicast and QoS
- Supports static routing
- Support RIP, OSPF,VRRP, BGP, ECMP and other protocols
- IPv4 routing table: 8K; ARP entry: 4K
- Supports the third-party network management system to automatically deliver configuration templates for devices, configure QoS, manage VLAN configuration, and analyze network traffic.
|
Product model |
DVOP-IN-IM3-EG48-OQ6 |
|
Basic Features |
|
|
Fixed ports |
48 10/100M/1000M RJ45 electrical ports and 6 1000M/10GSFP+ optical ports |
|
Backplane bandwidth |
598Gbps |
|
Packet forwarding rate |
262Mpps |
|
Processor |
RISC 600MHz |
|
Flash capacity |
8MB |
|
Memory capacity |
64MB, up to 512MB |
|
Address table |
64K |
|
Queue buffer |
64MB |
|
Product Features |
|
|
Support Protocol Standards |
IEEE 802.1AB-2005, LLDP
protocol; |
|
Forwarding mode |
Store forward |
|
Spanning tree |
Support STP, RSTP, MSTP |
|
VLAN |
Supports a maximum of 4096
vlans |
|
Flow control |
Standards-based IEEE 802.3x
flow control |
|
Broadcast control |
Suppress the broadcast storm and reach a critical point to stop sending |
|
Multicast control |
Automatic monitoring of IGMP Snooping multicast messages |
|
Link aggregation |
Each group supports a
maximum of 8 LACPs and 128 |
|
Ring Network protection |
Support ring network |
|
Precise docking |
10-gigabit ports support the switch/server mode, accurately matching the switch/server, and higher forwarding performance |
|
Port mirroring |
Port mirroring support (one-to-many) |
|
Stacks |
Soft stack 16 units |
|
Security features |
IEEE 802.1x Port
Authentication |
|
Quality of Service |
IEEE 802.1Qau Congestion
Mechanism |
|
Network management |
SNMP v1/v2WEB |
|
Remote Upgrade |
Version upgrade through the
web Version upgrade |
|
Physical Features |
|
|
Appearance dimensions |
442mm × 285mm × 44mm |
|
Power Supply Characteristics |
Ac 110-240V adaptive, 47-63Hz, 1A/230V, RPS power supply hot backup |
|
Power |
40W Max |
|
Indicator light |
Power indicator, system indicator, connection/transceiver indicator |
|
Ambient temperature/humidity |
Run at -20-80 ° C, store at -40-85 ° C, 0-90% condensation free |
