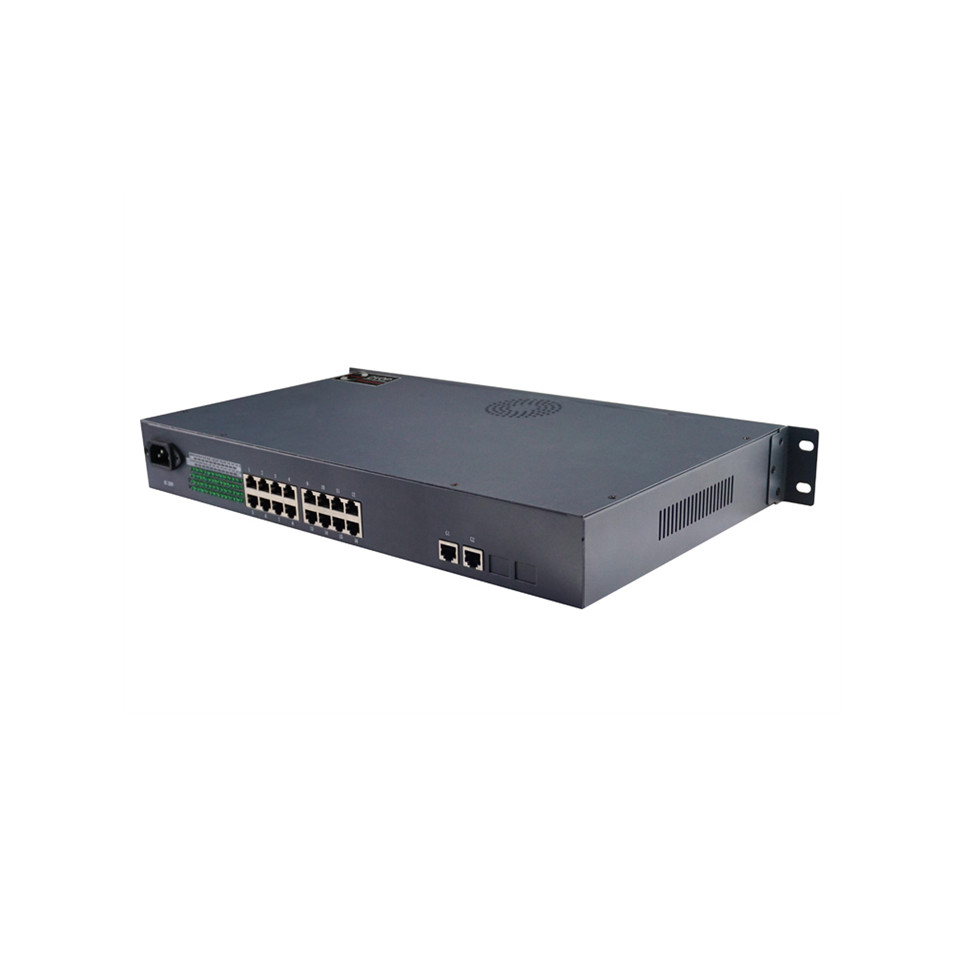

- DVOP-IN-EMP16-EM2 100 Mbit/s 16+2 port POE switch
DVOP-IN-EMP16-EM2 is a POE network switch with 2 100 Mbit uplink ports and 16 Mbit POE ports, 16 ports support POE remote power supply, and the device realizes the exchange of 16+2 10/100M adaptive ports. And realize the remote feed to the devices that comply with IEEE 802.3AF/IEEE 802.3AT protocol. Using the latest single-port full power technology, a single port can provide a maximum power supply of 30W, fully meeting the power supply requirements of array light cameras. Automatically detect, identify and power PD devices that comply with IEEE 802.3AF/IEEE 802.3AT standards. Intelligent power management. If the power of the power receiving device exceeds 53W, the system starts the priority mechanism and cuts off the power supply to the port with a lower priority. With intelligent POE automatic identification system, with overcurrent, overvoltage and other perfect protection mechanism, will not burn any equipment. The energy efficiency management mode with automatic standby mode and cable length detection makes the equipment have excellent energy saving capability. This equipment adopts PCB board, with excellent heat dissipation and overcurrent capacity, and adopts imported original industrial grade devices. All RJ45 electrical ports and feeders adopt advanced self-healing multi-stage lightning protection design, with high-level lightning, surge, ESD electrostatic protection capabilities. Support 1+1 dual power supply hot backup power supply mode, can adapt to long-term harsh engineering environment applications.
● Single port full power technology, single port can support a maximum of 30W power supply, fully meet the array light camera power supply requirements
● Support IEEE802.3AF and IEEE802.3AT protocols, automatically detect and identify PD devices that comply with IEEE802.3AF /IEEE 802.3AT standards and supply power to them
● Intelligent power management: If the power of the power receiving device exceeds 53W, the system starts the priority mechanism to cut off the power supply of the port with a low priority
● With automatic standby mode and cable length detection function - that is, when the port is not connected, automatic standby mode saves energy; Lower transmission power when the cable is shorter than 10 meters
● With intelligent POE automatic identification system, will not burn any equipment
● Optional 1/2/3/6 wire pair and 4/5/7/8 wire pair power supply for all PD equipment
● With 1+1 dual backup power supply mode, especially suitable for monitoring environment that can not be powered off
● With over current protection, over voltage protection, PD power classification adjustment function
● All network ports and power ports adopt self-healing lightning protection design, reaching the domestic leading lightning protection level
● Industrial design, the use of heavy metal PCB, suitable for harsh environment, transmission reliability requirements
● The core device adopts imported industrial PSE chip and meta volume transformer
● Powerful automatic shutdown function, real-time protection of any external equipment
● Each port supports MDI/MDIX automatic flipping and auto-negotiation
● Flow control mode: Full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard
● All ports support line speed switching, and line speed can be reached in the range of 64 ~ 1536 frames
● Wall-mounted, especially suitable for engineering use
|
Ethernet interface |
Physical interface: |
RJ-45 seats |
|
Interface rate: |
10M/100M adaptive, full duplex/half duplex |
|
|
Interface standard: |
IEEE
802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; |
|
|
Flow control: |
IEE802.3X/IEE802.3Z Full duplex flow control and half duplex flow control |
|
|
Line sequence: |
Adaptive MDI/MDIX direct connection and cross-connection mode |
|
|
Switching indicators |
Forwarding mode |
Store forward |
|
Swap results |
Back-plane(backplane bandwidth); 1.0Gbps Transfer Rate; 14,880pps/14,880pps for every Ethernet Port |
|
|
MAC address |
2K MAC address list |
|
|
Environmental parameters |
Working temperature: -20℃ - +70℃; Working humidity: 10%-90% |
|
|
Storage temperature: -40℃ - +80℃; Storage humidity: 5%-95% |
||
|
Power Supply/Power |
Wall-mounted/tabletop |
|
|
Power supply: |
External 48V power adapter, adapter 220V power supply, equipment 48V power supply |
|
|
Maximum power consumption: |
120W(AF)/240W(AT) |
|
