- DVOP-iOC-DH14AC15C Outdoor integrated cabinet

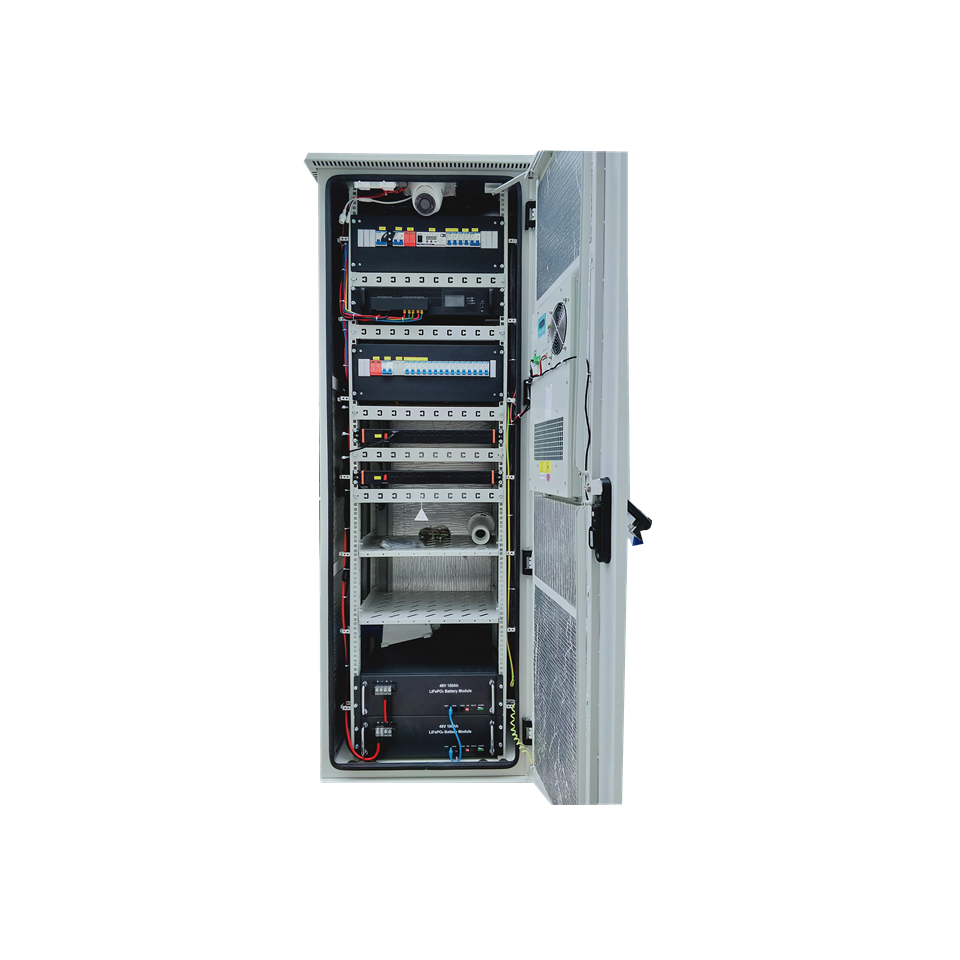

DVOP-iOC-DH14AC15C outdoor integrated intelligent cabinet adopts excellent material selection and professional structural design to achieve the physical requirements of strong, waterproof, dust-proof, anti-corrosion and anti-rust. The unique double-layer insulated cabinet and the completely self-reliant internal and external air circulation system can minimize the impact of the harsh environment outside the cabinet on the temperature and humidity environment inside the cabinet. At the same time, the fully open cabinet setting function allows the user to equipment the cabinet temperature control system according to the working environment requirements of the equipment in the cabinet, so that the real environment in the cabinet is exactly the same as the working environment required by the equipment, and provides a superior operating environment for the equipment system in the cabinet. The integrated outdoor cabinet is designed based on the customer's environment and is used to supply and reserve power for the outdoor power system. It consists of cabinet, embedded switching power supply, inverter power supply, backup battery pack, distribution unit, monitoring system, cooling system, cabinet lighting, direct air system and other supporting equipment. Widely used in highway ETC door frame.
● The cabinet has a standard 19-inch installation space with a total height of 41U.
● With Class B lightning protection, excellent lightning protection performance, EMC electromagnetic compatibility protection.
● The main material is not less than 1.2mm thick steel plate, and the use of professional outdoor coating, good corrosion resistance.
● Mechanical protection design, with anti-theft, anti-earthquake, etc., from human damage, earthquake and other damage behavior.
● The cabinet is not directly disassembled from the outside, affecting the safety and use of the structure; Compact structure, easy installation, excellent sealing performance, protection level up to IP55.
● The gap between the cabinet door is compact, the opening Angle of the door is > 110°, the cabinet door contains a limiting structure, and the threshold device has a limiting effect when the door is in the "open" state.
● Cabinet door lock adopts pull rod and lock piece three-point structure anti-theft lock, strong structure and anti-theft performance.
● The cabinet enters and exits cables from the bottom. Reasonable layout inside the cabinet, beautiful cabling; A ground copper bar and neutral copper bar with anti-corrosion coating are provided on the side of the cabinet.
● LED lights are installed on the top of the cabinet to facilitate equipment maintenance at night.
|
name |
Technical parameters |
|
Dimensions |
Outer dimensions: 2000*700*700mm; Total space used by equipment: 42U |
|
Material |
The exterior is 1.5mm thick 304 stainless steel and the inner frame is 1.5mm thick galvanized sheet |
|
Thermal insulation |
20mm thick PEF flame retardant tin foil insulation cotton with adhesive backing |
|
Layout |
Single cabin body, 19-inch rack, 8 pairs of L-brackets (adjustable up and down) |
|
Color |
The whole machine adopts professional outdoor powder spraying, RAL7035, can be customized according to user requirements |
|
Cabinet installation method |
Floor base fixed installation |
|
Cabinet doors |
Front and rear doors with built-in anti-theft structure |
|
Cabinet lock |
Electronic lock (mechanical key, remote and IC card three ways to open the door) |
|
Level of protection |
IP55 |
|
Cooling heat |
1500W variable frequency air conditioner + emergency cooling fan |
|
LED lights |
220V/-48V LED light (with access control switch, light on when opening the door, close the door light off) |
|
Relative temperature |
Operating temperature range -40℃ ~ +55℃ |
|
Storage temperature range -50℃ ~ +70℃ |
|
|
Transport temperature range -50℃ ~ +70℃ |
|
|
Relative humidity |
5% ~ 95% |
|
Atmospheric pressure |
62kpa ~ 101kpa (approximately 0m ~ 5000m above sea level) |
|
Solar radiation intensity |
1120×(1±5%)W/m2 |
