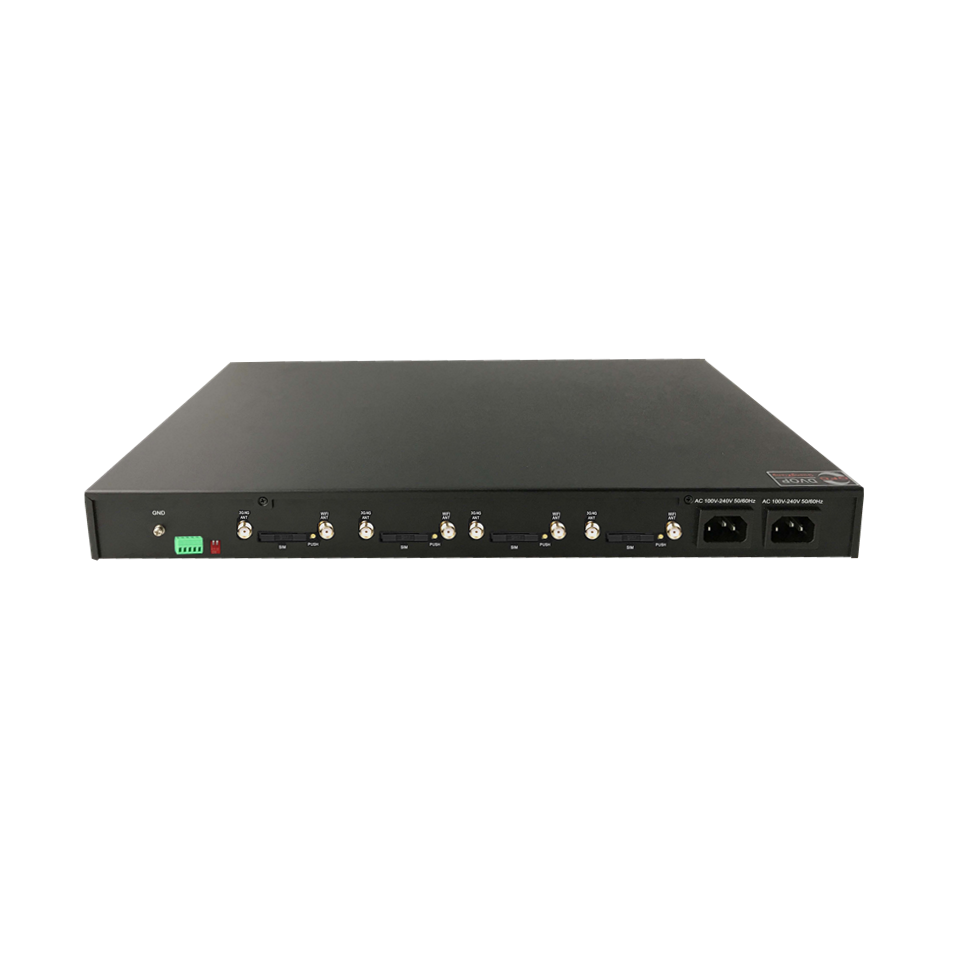

- DVOP-IN-IR-FWB-EGL16-EGH8-OEG4-G4S1 Full gigabit 4G intelligent multi-route switching gateway
DVOP-IN-IR-FWB-EGL16-EGH8-OEG4-G4S1 is equipped with 16 10/100/100M adaptive gigabit electrical interface for low-priority data transmission and 8 10/100/1000M adaptive gigabit electrical interface for high-priority data transmission. 4 10/100/1000M on-board power ports, 4 gigabit SFP(mini GBIC) optical ports, and 32 industrial-grade intelligent multi-route redundant transmission devices for 1 4G all-network antenna feed port, supporting up to 4 4G wireless 4G backup routes, and supporting each wireless 4G belonging to different operators. Equipped with 1+1 two hot spare power inputs and two relay alarm outputs, it is suitable for industrial environments with severe temperature conditions ranging from -40 ° C to 85 ° C and meets the IP40 protection level. Electrical port equipment supports 110V1C/220VAC/48VDC/24DC and other multi-feed input and any two kinds of input voltage redundant feed mode, all interfaces adopt advanced bridge self-recovery multi-stage lightning protection design, ESD up to 8KV in line with EN61000-4-2 standards, lightning protection 4KV in line with EN61000-4-5 standards. The equipment adopts metal-sunk PCB board, in line with IPC standards, adopts industrial-grade design, adopts imported industrial-grade chips and devices, and can operate statically for a long time at an extremely wide temperature of -45 ° C ~ 85 ° C. It is free from environmental interference, has high transmission quality, can work statically for a long time, installation and maintenance are simple, and no debugging is required. Electromagnetic compatibility meets industry Level 4 standards.
● Support 24 10/100/1000M adaptive Ethernet ports, 4 10/100/1000M uplink electrical ports, 4 Gigabit SFP(mini GBIC) optical ports, 1 4G wireless routing interface
● Multiple route protection mechanism: Fiber/twisted pair ring network redundancy protection + Fiber/wireless active/standby switchover protection Switching protection
● Low switching time, the switching time of optical fiber redundancy protection is less than 30ms, and the switching time of optical fiber/wireless redundancy protection is less than 10s
● Embedded firewall functions: Support MAC/IP address/port filtering, port mapping, port forwarding, URL filtering, DMZ and other firewall functions
● With manual, automatic fiber /4G transmission switching function
● Automatic intelligent switching protection technology: Only when the optical fiber transmission route fails and the redundant optical fiber route transmission also fails, 4G wireless data transmission is started, which greatly reduces the wireless traffic and greatly saves the long-term use cost
● High-speed protection mechanism: the speed can reach 100M when 4G backup is enabled, depending on the actual bandwidth of the operator)
● Transparent protection mechanism: For the intelligent switching technology that is independent of the transmission medium layer under OSI layer and "transparent" of the application system, only the device can be added to the original system to achieve high reliability data transmission.
● Five-mode 13-frequency full Netcom 4G wireless, flexible architecture and choice of wireless operators according to the project site
● Full modular design, only need to replace the wireless 4G module, can support the upcoming wireless 5G route backup
● Extremely wide limit operating temperature range, operating temperature up to -40℃ ~ 85 ℃ extremely wide temperature long-term stable operation
● Electrical port support POE feed, adaptive compatible with 802.3AF/AT standard
● Support for manual/automatic switching between twisted pair, fiber and 4G
● Optional GPS/ Beidou positioning module, which is convenient to establish a network-based resource management and monitoring system for virtual sites based on GIS
● Support network management SNMP V1/V2/V3, support SYSLOG and other protocols, can directly connect with the third-party network management system, facilitate the establishment of the whole service network management system
● Supports IGMP Snooping (V1, V2, V3), multicast filtering and unknown multicast discarding, static multicast groups, 4K multicast groups, and GMRP
● Support VLAN function, support 4K vlans compliant with IEEE 802.1Q standard, support port-based VLAN and protocol-based VLAN, support GVRP dynamic VLAN
● Supports dynamic DHCP address assignment, DHCP Snooping, binding based on MAC addresses, and shielding of unauthorized DHCP servers to implement ARP anti-spoofing and IP traffic control
● Support Flow Control, Quality of Service (QoS), spanning tree protocol support, broadcast storm control, 802.1x authentication support, port aggregation support, mirroring support, etc
● Support STP (IEEE 802.1d), RSTP (IEEE 802.1w) and ERPS Industrial Fast Ring Network (G.8032) protocols
● Support real-time working temperature detection, support indicator, relay output mode working temperature overlimit alarm
● Supports the alarm of port connection status, operating temperature alarm, and power alarm, supports the indicator display of the above alarm content, the relay output alarm output, and can report to the centralized network management system in trap mode
● Support LLDP link discovery protocol, loop detection and alarm indication
● Support SNMP-based cluster management: device discovery protocol, topology collection protocol, cluster management protocol
● Dual power supply 1+1 hot backup, support 220VAC/48VDC/24VDC cross redundancy backup
● Working environment temperature: Working environment temperature: -40℃ ~ +85℃
SNMP-MIB support: MIB-II(RFC1213), Bridge MIB(RFC1493), RSTP MIB, RMON MIB(RFC1724) Group, etc
● All network ports and power ports adopt advanced bridge self-healing multi-level lightning protection design, in line with EN61000-4-2~EN61000-4-6 series international protection standards
● Industrial fanless design, built-in redundant dual power supply 1+1 hot backup, support 110VAC/220VAC/48VDC cross redundancy backup
● Bandwidth management: Support port aggregation, port speed limiting, broadcast storm suppression
● Support link aggregation to optimize bandwidth utilization. Supports bandwidth management to ensure network stability
● Full industrial design, using imported industrial chips and devices
|
Optical index |
Wavelength: |
Single mode :1310/1550nm; DFB:1260~1610nm |
|
Fiber output power: |
0 dBm ~ -3 dBm/-5 dBm ~ -10 dBm |
|
|
Reception sensitivity: |
≤-28dBm |
|
|
Single wavelength bandwidth: |
1.25 Gbps |
|
|
Transmission distance: |
Single mode: 0-80km |
|
|
Maximum optical power reservation: |
15dbm/20dbm/25dbm/30dbm |
|
|
Fiber optic interface |
Standard LC, SC/FC/ST optional |
|
|
Network Port Indicators |
Physical interface: |
Standard RJ45 |
|
Interface rate: |
10/100/1000M adaptive, full duplex/half duplex |
|
|
Network media: |
Category 5 and above unshielded twisted pair cables |
|
|
Forwarding method: |
Storage forwarding, all ports support line speed forwarding |
|
|
Network protocol: |
IEEE802.3, IEEE802.3x Flow Control, IEEE 802.3z, IEEE 802.3u, IEEE 802.3AB, IEEE802.3x, IEEE 802.1D-2004 STP, IEEE 802.1w Rap d STP, IEEE 802.1Q VLAN Tag, IEEE 802.1p CoS, IEEE 802.1X Authentication, IEEE 802.3ad link aggregation |
|
|
Flow Control: |
IEE802.3X/IEE802.3Z Full duplex flow control and half duplex flow control |
|
|
Line sequence: |
Adaptive MDI/MDIX direct connection and cross-connection mode |
|
|
Management protocol: |
OPRing,IGMPv1/v2, GVRP, SNMPv1 /v2c/v3, DHCP Cl ent, TFTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, GVRP SSH, SNMP INform, LLDP, SNTP Server/Cl ent,PVLA |
|
|
Exchange parameters: |
Priority queue :4, number of vlans :256, VLAN ID:1 ~ 4094, number of multicast groups :256, MAC table :8K, packet buffer :1Mb t, packet forwarding rate :≥35Mpps, backplane bandwidth ≥64Gbps, switching delay :< 5μs |
|
|
4G port indicator |
Transmit power |
Class 4(33dBm±2dB) for GSM900 Class 1(30dBm±2dB) for DCS1800 Class E2(27dBm±3dB) for GSM900 8-PSK Class E2(26dBm±3dB) for GSM1800 8-PSK Class 3(24dBm+3/-1dB) for CDMA BC0 Class 3(24dBm+1/-3dB) for WCDMA Class 2(24dBm+1/-3dB) for TD-SCDMA Class 3(23dBm±2dB) for LTE FDD Class 2(23dBm+1/-3dB) for LTE TDD |
|
Reception sensitivity |
FDD B1:-96dBm; FDD B3:-96dBm; FDD B5:-96dBm; TDD B8:-96.5dBm; TDD B38:-96dBm; TDD B39:-97dBm; TDD B40:-96.5dBm; TDD B41:-96dBm; WCDMA B1:-110dBm; WCDMA B8:-111dBm; TDSCDMA B34:-109dBm; TDSCDMA B39:-109dBm; GSM 900M:-109dBm; GSM 1800M:-109dBm |
|
|
LTE |
non-CA CAT4 Max support; Support 1.4~20MHz RF bandwidth; Downlink support multi-user MIMO; FDD: Max uplink speed 50Mbps, Max downlink speed 150Mbps; TDD: Maximum uplink rate 35Mbps, maximum downlink rate 130Mbps; |
|
|
WCDMA |
3GPP R8 DC-HSPA+; 16-QAM,64-QAM and QPSK modulation; Max uplink 5.76Mbps , Max. 42Mbps downlink |
|
|
TD-SCDMA |
CCSA Relese 3; Max uplink 2.2Mbps, Max downlink 4.2Mbps |
|
|
Interface mode |
SMA antenna interface |
|
|
Alarm output |
Interface: |
Industrial crimp terminals |
|
Alarm contents: |
Two relay IP/MAC conflict, support power, port and ring alarm |
|
|
Supply/power |
Power supply method: |
DC feed support: 9VDC/12DC/24VDC/48VDC fully compatible; Ac feed support: 110V/220VAC |
|
Maximum power consumption: |
<1A@24VDC |
|
|
Feed protection: |
Overload protection: Supported Reverse protection: Supported Redundancy protection: Supported |
|
|
Environmental parameters |
Operating temperature: |
-40℃ ~ +85℃ |
|
Storage temperature: |
-45℃ ~ +85℃ |
|
|
Relative humidity: |
5 to 95% condensation free |
|
|
machine |
Enclosures: |
Naturally cooled, fanless, IP40 protection rating |
|
Installation method: |
1U rack mount |
|
|
Dimensions: |
440 x 340 x 44mm (W x D x H) |
|
|
Weight: |
5Kg |
