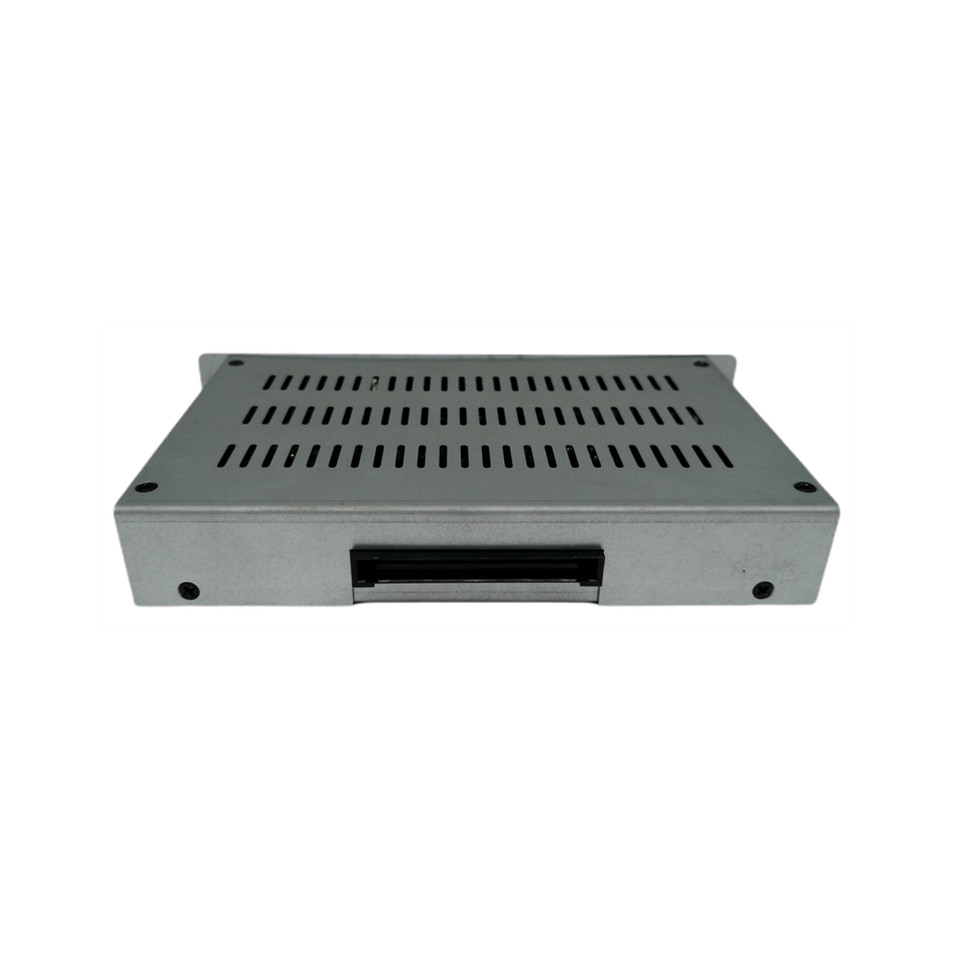

- DVOP-PT-HV2-DB2-OM1-OPS Hd HDMI codec
DVOP-PT-HV2-DB2-OM1-OPS is Shenzhen Guang Xiang HD HDMI decoder with full intellectual property rights, receiving high-definition encoded HDMI video information from optical network, decoding through dedicated ASIC, converting the signal into HDMI signal, RS232/RS485 data output. Realize 1 channel OPS interface 1080p@60 HD HDMI video +RS232/485 data, and 1 channel HDMI interface 1080p@60 HD HDMI video + industrial terminal RS232/485 data. The device supports resolutions up to 720p/60Hz, 1080i/60Hz, 1080p/30Hz,1080p/60Hz, etc., supports 7.1 channel PCM surround sound and compressed audio, compatible with DVI signal transmission, supports OPS interface, HDMI interface hot swap, low energy consumption, long distance, etc. No compression, zero delay, plug and play, strong compatibility, can achieve more accurate display. Support HDMI 1.3 high-definition video signal encoding and decoding and transmission, support HDCP 1.2, support 7.1 channel PCM surround sound and compressed audio, adaptive technology, no need to set adjustment, support plug and play, support hot swap, low energy consumption, long distance, strong compatibility.
DVOP-PT-HV2-DB2-OM1-OPS has good three-defense performance, fully considering the environment of various applications, using industrial design, with no environmental interference, high transmission quality, long-term stable work, installation and maintenance are simple, no debugging and other characteristics. Adaptively compatible with images of various resolutions, with CD-level high-fidelity audio effects, with strong anti-interference performance, high safety performance, small size, light weight and other advantages.
● Realize one 1080p@60Hz HD HDMI video signal and one RS232/485 data decoding
● Achieve 1 channel OPS interface HD HDMI video signal and 1 channel RS232 data output, 1 channel HDMI interface HD HDMI video signal and 1 channel terminal interface RS232 data output
● OPS embedded application, feed from OPS interface without external feed
● Use a special format to compress and decompress the video, effectively improve the transmission efficiency and ensure the smooth playback;
● Standard TCP/IP protocol can be used with Ethernet switches to achieve one-to-many, many-to-many applications;
● Compatible with HDMI 1.3 standard;
● Compliant with HDCP 1.2 standard - high bandwidth digital content protection technology;
● Can automatically identify and configure various display modes;
● Built-in automatic balancing system, smooth, clear and stable picture;
● Easy to install, plug and play, no need to set;
● The encoded HDMI signal can be transmitted through the switch to achieve point-to-multipoint or point-to-point topology applications
● Can automatically identify and configure various display modes;
● Built-in automatic balancing system, smooth, clear and stable picture;
● Easy to install, plug and play, no need to set;
● Full digital transmission, strong anti-interference ability;
● HDMI HD video resolution can reach HDTV 1920*1200@60Hz, 720p/60Hz, 1080i/60Hz, 1080p/30Hz,1080p/60Hz and so on
● Advanced audio, HDMI video, data and other adaptive technology, automatically compatible with HDMI video, audio, data, no need to adjust when using
● Adaptive technology, no need to set adjustment, support plug and play, support hot swap;
● Industrial design and device, full surface mounting technology, long-term stable and reliable operation
● Unique power anti-reverse connection, power anti-error function, fault elimination automatically resume operation.
No electromagnetic interference (EMI), radio frequency interference (RFI) and common ground circuits
● Industrial design, suitable for harsh industrial environment;
● Status indicator LED lights for real-time monitoring of power, optical path, video and other parameters.
|
Parameter name |
Detailed instructions |
|
|
HDMI video |
Support protocol |
HDMI 1.3; HDCP 1.2 |
|
Compressed format |
H.264 |
|
|
Pixel bandwidth |
165MHz, all digital |
|
|
Interface bandwidth |
Total bandwidth 6.75Gbps |
|
|
Maximum supported resolution |
1920X1080@60Hz |
|
|
Interface |
Standard OPS interface, HDMI cable interface (when there is a 2nd video output) |
|
|
Impedance |
100 Ω |
|
|
Recommended HDMI maximum input distance |
Less than 5 meters, when at 1920X1080@60Hz |
|
|
RS232 data |
Interface |
Standard OPS interface, 3P industrial terminal input (when there is a second data output) |
|
Signal direction |
RX input, TX transmit |
|
|
Baud Rate |
≤115200bps |
|
|
Lightport |
Interface |
FC, optional ST/SC |
|
Emission wavelength |
1310nm, optional 1550nm and other wavelengths |
|
|
Transmit power |
-5 dBm ~ -10 dBm |
|
|
Optical port rate |
155Mbps |
|
|
Transmission distance |
20km, optional 40/60/80/100/120km |
|
|
Other |
Power supply |
Standard OPS interface feed |
|
Maximum power consumption |
5W |
|
|
Temperature |
Operating temperature: -40℃ ~ +80℃ |
|
|
Humidity |
Operating humidity: 5% to 90% |
|
|
Overall dimensions |
OPS standard case |
|
|
Quality guarantee |
1 year free warranty |
|
