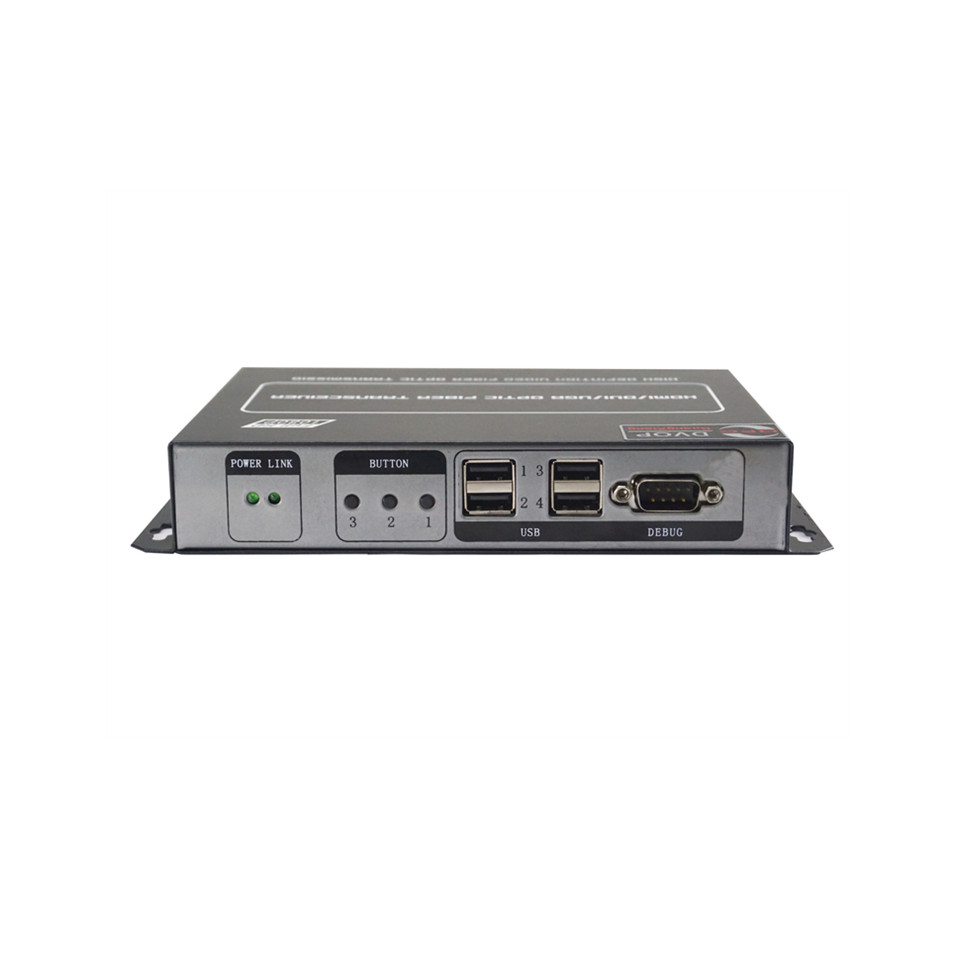

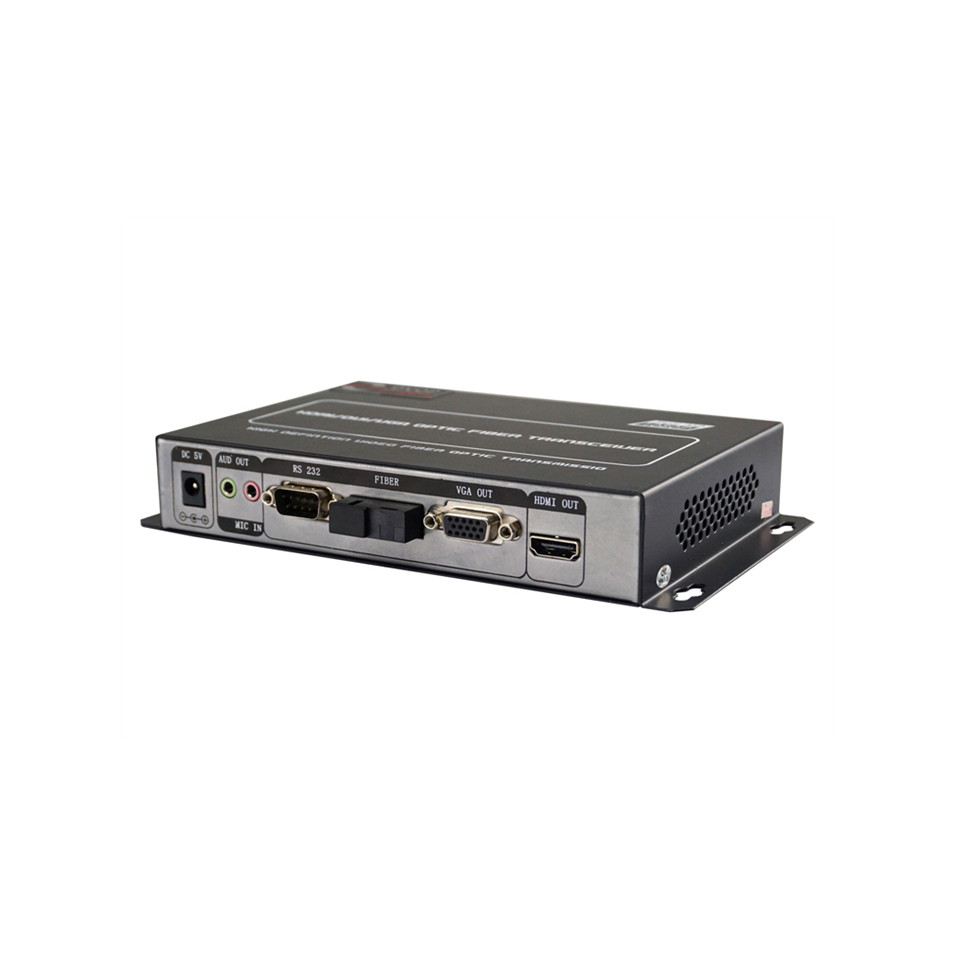

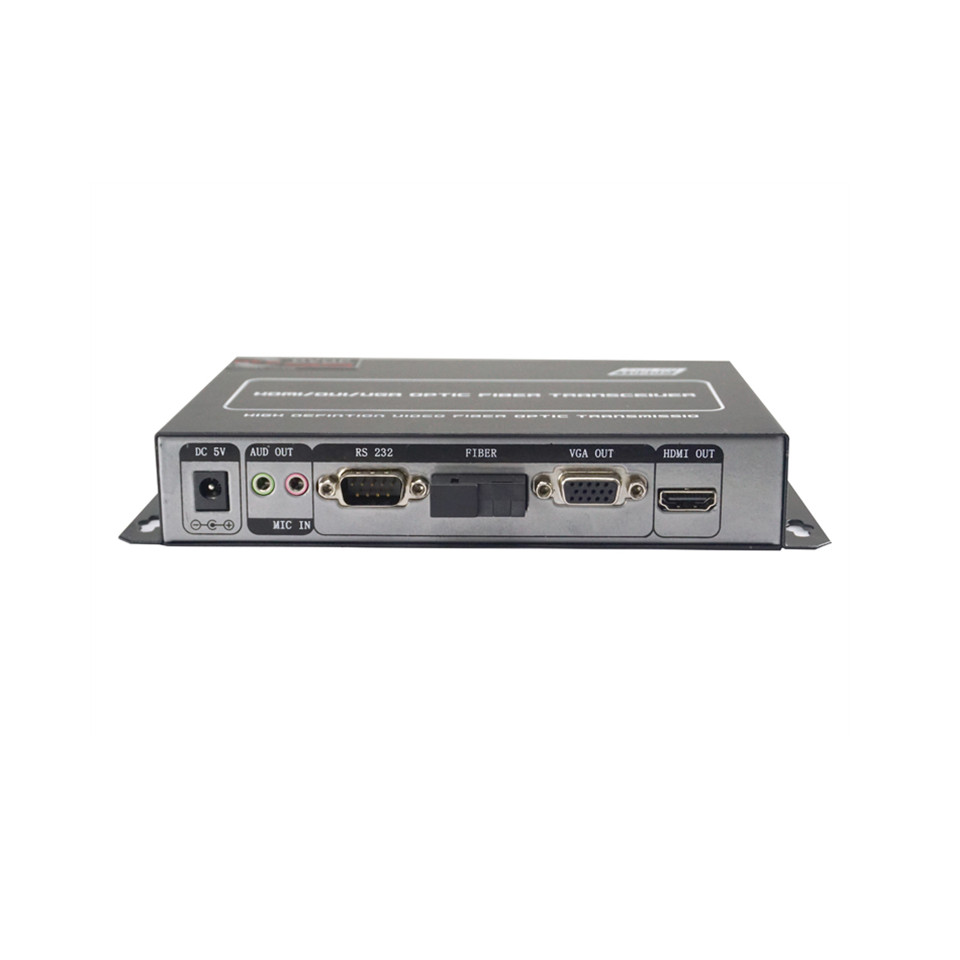

- DVOP-HDMI-H 4K uncompressed HDMI HD video optical terminal
DVOP-HDMI-H is an ultra-high-definition HDMI optical terminal that supports 4K resolution, converts HDMI signals into 10G differential signals through a patented conversion chip, and transmits and receives them through optical modules and optical fibers to achieve long-distance transmission of HDMI high-definition multimedia signals. To achieve long-distance transmission up to 60KM, this product is a lossless, no delay transmission, suitable for various requirements of high-definition long-distance transmission. Support HDMI 1.4 HD and 3D video signal transmission, can backtransmit EDID, support HDCP, resolution up to 720p/60Hz, 1080i/60Hz, 1080p/30Hz,1080p/60Hz, 1080p/120Hz, etc. Support 7.1 channel PCM surround sound and compressed audio, compatible with DVI signal transmission, support HDMI interface hot swap, low energy consumption, long distance, plug and play, compatible, can achieve more accurate display.
● All digital, zero compression, zero delay
● Transmission speed up to 10Gbps
● Maximum resolution: 4096×2160@30HZ
● Support HDMI 1.4 and 3D
● EDID can be transmitted back
● Support HDCP standard
● Support 7.1 channel PCM surround sound and compressed audio
● Compatible with DVI signal transmission
● Support HDMI interface hot swap, plug and play, no need to set
Optical index:
Wavelength: 850/1310nm(multimode); 1260~ 1360,1470 ~ 1610 (single mode)
Fiber output power: 0 dBm to -3 dBm/-5 dBm to -10 dBm
Number of fiber cores: 1 /2 (optional)
Receiving sensitivity: ≤-26dBm
Transmission distance: multi-mode 300m, single mode: 0-10km, 0-60km
Maximum optical power reserved: 15dbm/20dbm/25dbm/30dbm
HDMI/DVI high-definition digital interface indicators
Number of HDMI: 1
Resolution support: 1080 p / 1080 I / 720 p / 576 p / 576 I / 480 p / 480 I, etc
Input/Output TMDS signal: 0.5 ~ 1.5Vp-p(TMDS)
Input/Output DDC signal: 5Vp-p(TTL)
Input cable length: ≤5m(AWG26 HDMI1.3 cable standard)
Output cable length: ≤5m(AWG26 HDMI1.3 cable standard)
Support HDMI version: HDMI1.3
Support HDCP version: HDCP1.2
Support video color format: 24 bit/Dark 30 bit/dark 36 bit
Supported audio format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
Connector: HDMI/DVI
Audio indicators:
Input impedance (Line-in) 600/10K, balanced/non-balanced
Output impedance (Line-out) 600/10K, balanced/non-balanced
Nominal input/output level 2Vp-p
Sampling rate and code point support: 16bit/32kHz, 44.1kHz, 48kHz; 24bit/ 8-channel 96K; 24bit/192kHz
Audio bandwidth 20Hz ~ 20KHz@-3dB
Quantization level 24bit
Weighted signal-to-noise ratio 85dB@1kHz
The total harmonic distortion is 0.1%
Data interface:
Physical interface: RJ45, DB9F, DB25F, industrial standard wiring terminals
Data type: RS-232, RS485, or RS422
Data rate: DC-115.2Kbps/ DC-2 MBPS
Data bit error rate: less than 10E-12
Data protocol: Fully transparent support for any data protocol
Network connection mode: Support forward, reverse or bidirectional data, support point-to-point, point-to-multipoint connection
Working environment (outdoor or indoor)
Operating temperature :-20℃ ~ +60℃
Humidity: 0 ~ 95% no condensation
Protection grade: General industry standard or special designation
Dimensions, power supply mode and power dissipation
Freestanding:
Size: 16.5cm×8.5cm×3cm
Power supply: External power adapter, support voltage DC 5V1A
Maximum power consumption: 5W
