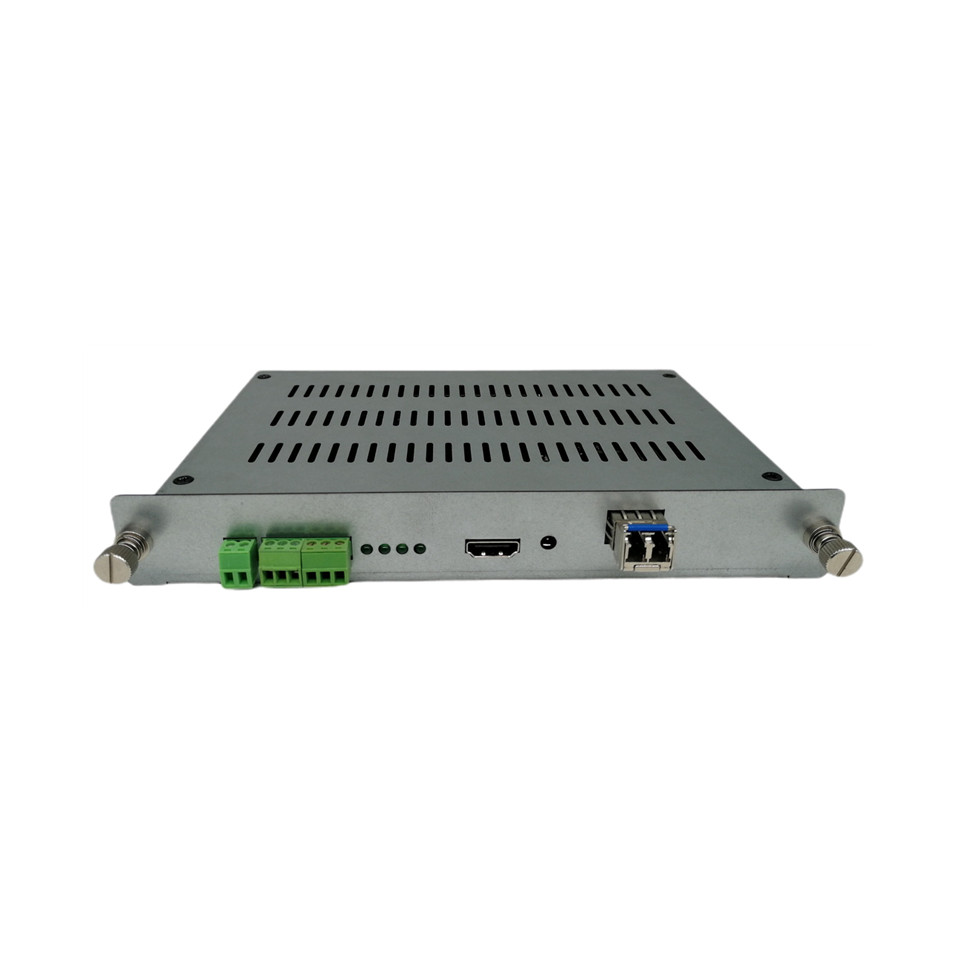

- DVOP-HM-HDH-VU2-DB2-OPS 4K HDMI HD OPS optical terminal
DVOP-HM-HDH-VU2-DB2-OPS is a 4K HDMI ultra HD OPS digital optical receiver with full intellectual property rights of Shenzhen Guangxiang, which adopts special ASIC circuit and TDM time division multiplexing technology. Achieve 1 UHD HDMI, 2 two-way RS232 or RS485 signals in a fiber real-time lossless non-compression transmission, through the patent conversion chip to convert the HDMI signal into 10G differential signal, through the optical module and fiber for transmission and reception, to achieve HDMI high-definition multimedia signal long-distance transmission. Through optical modules with different transmission distances, long-distance transmission up to 80KM can be achieved.
DVOP-HM-HDH-VU2-DB2-OPS The receiving end uses an embedded OPS interface to output 1 channel 4K HDMI and 1 channel RS232 data to the display screen through the OPS interface. The receiving end also uses a standard HDMI connector to output the second channel 4K HDMI. At the same time, the second RS232 data is output through the industrial terminal, which realizes the back-to-back screen display in the PIS system and saves the system cost. At the same time, the receiving end adopts the OPS power supply mode, without additional feed requirements, so as to achieve plug and play, and there is no need for separate power supplies and external cables on site.
● Single fiber supports 1 channel 4K ultra HD HDMI video signal, 2 two-way RS232 or RS485 signal co-fiber transmission
● OPS interface output 1 HDMI and 1 RS232 data, standard HDMI connector output 2 HDMI, terminal output 2 RS232 data
● Standard 80PIN OPS interface, compatible with various displays
● OPS power, no need to feed on site
● Full digital lossless transmission, no compression and no delay, audio and video synchronous transmission
● HDMI HD video resolution can reach UXGA 1280*1024@60Hz, HDTV 1920*1200@60Hz, 720p/60Hz, 1080i/60Hz, 1080p/30Hz,1080p/60Hz,1080p/ 120Hz, 4096 x 2160@30HZ, etc
● Advanced audio, HDMI video, data and other adaptive technology, automatically compatible with HDMI video, audio, data, no need to adjust when using
● Support EDID automatic upload function
● Super compatibility, do not choose resolution, support any resolution including 4K and below
● Adaptive technology, no need to set adjustment, support plug and play, support hot swap
● Industrial design and device, full surface mounting technology, long-term stable and reliable operation
● Unique power anti-reverse connection, power anti-error function, fault elimination automatically resume operation
● The power supply supports 1+1 hot backup working mode, which is more suitable for high stability application requirements
No electromagnetic interference (EMI), radio frequency interference (RFI) and common ground circuits
● Industrial grade design, suitable for harsh industrial environment
● Status indicator LED lights for real-time monitoring of power, optical path, video and other parameters
● Aluminum alloy shell anodizing process, suitable for industrial environment
|
Signal class |
HDMI Signal |
|
Transmission channel |
2 channels |
|
Technical Specifications |
HDMI-1.4, DVI-1.0,HDCP1.1 |
|
Video resolution |
Max 4096×2160@30Hz |
|
Enter cable specifications |
≤10m (AWG26 HDMI1.3B cable standard) |
|
Output cable specifications |
≤10m (AWG26 HDMI1.3B cable standard) |
|
Audio signal format |
Stereo Audio @48KHz sampling (3.5mm interface) |
|
Data Type interface |
RS232 (RS485 customizable) (Industrial terminal) |
|
Maximum data rate |
51200bps |
|
Laser center wavelength |
Single mode (1310nm & 1550nm) |
|
Transmitted light power |
-9.5 ~ -3dBm Average optical power @1310nm |
|
Received light sensitivity |
-18dBm Average optical power @1310nm |
|
Fiber transmission bit rate |
10GHz |
|
Fiber transmission distance |
Single mode (0-60Km), multi-mode (0-300m) |
|
Fiber interface type |
LC Fiber Interface |
|
Power supply mode |
OPS Feed + external DC power supply |
|
Applicable voltage |
DC9V to DC24V |
|
Maximum power consumption |
≤6W |
|
Storage environment |
-40℃ ~ 80℃ (0 ~ 95% non-condensing) |
|
Working environment |
-30℃ ~ 80℃ (0 ~ 95% non-condensing) |
